Item number: 022781

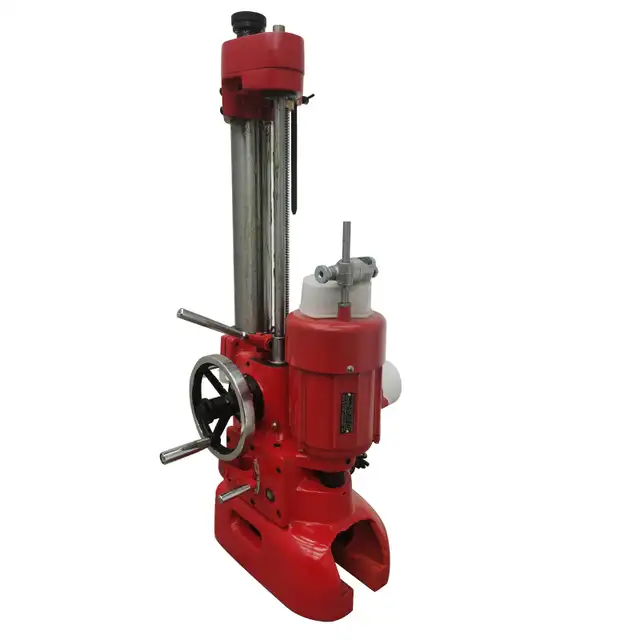

220V T8014A Cylinder Boring Machine, 2.6-5.5in Boring Range, 11.8in Max Depth, 250W, for Cylinder Refurbishment and Renovation, for Motorcycle and Automobile Professional Engine Cylinder Repair Equipment

Attention
1.Check whether the upper plane of the cylinder body is clean and straight .
2.If the discovery is unequal, it should be leveled in order to Keep good touch with the bottom of the cylinder boring machine and verticality of Cylinder wall and Cylinder block.

Specification
Voltage:220V
Frequency: 60Hz
Model: T8014A
Boring Range: φ2.5991-5.5118inch(65-140mm)
Max boring Depth: 11.81inch(300mm)
No of single speeds:250r/min
Feed: 0.0046inch(0.11mm)/rev
Quick -Return: 0.4173inch(10.6mm)/sec
Out -put: 0.25kw
Motor speed: 1720r/min

Type:
induction fully enclosed
Centing Fingers (Diameter)
2.5590-3.0709inch(65-78MM)
3.0709-3.5827inch(78-91MM)
3.5827-4.0945inch(91-104MM)
4.0945-4.6063inch(104-117MM)
4.6063-5.1181inch(117-130MM)
5.1181-5.5512inch(130-141MM)

Over Dimension (L*W*H): 12.6*13*33inch(32*33*85CM)

Packing: Wooden box packing

Packing Size:16.7*15.9*41.5 inch

Shipping Weight: 188lb

Item Number: 022781

You can make order with no worry.
Any concerns just feel free to let us know, we'll reply in 24 hours in normal condition.
Handling Time: Shipping is usually made in 1-3 business days after payments cleared. Orders are processed from Monday-Friday; Not on the weekends & public holidays.
Warranty: 6 months' warranty for the machines, not for the consumables.
We stand behind our products all the item, so even if your warranty period has expired, you can still seek for service or technical support from us with low cost.
