Item number: 021598
-

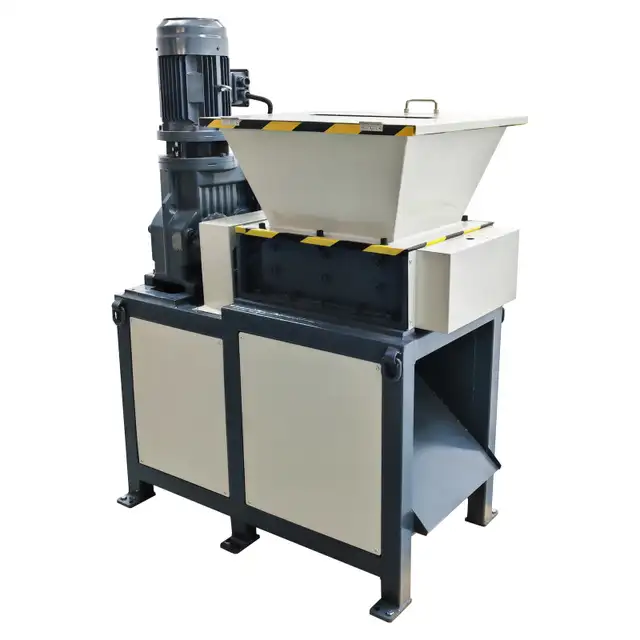

220V Universal Biaxial Crusher 4KW Electric Metal Plastic Shredding Machine Universal Crushing Machine for Waste Plastic Rubber Cloth Wood Iron Wire 420MM Cutting Mouth 4-stage Motor 021598

Biaxial shredding machine, also known as shear shredding machine, is through cutting, tearing and extrusion to reduce the size of the material shredding machine. Widely used in waste plastic, waste rubber, waste cloth,wood, waste iron wire, waste aluminum wire, waste copper wire, Used laptopskitchen waste and other waste.

Parameter
Model EB400
Voltage 220V, 60Hz 3-phase electricity
Motor 4000W 4-stage motor

Adapted air switch (Customer supplied) 63A
Reducer JL3#-12

Input speed 12rpm
Input torque 2919Nm
Input shaft diameter 60
Blade specifications and materials 180*15,9CrSi

Number of blades 26 pieces
Inner cavity size (MM) 26.2"*24.2" 15.8"*14"
Cutting mouth width (MM) 420
Height of cutting mouth from the ground (MM) 200

Features
Shredding machine main body:
All steel body the main body of the equipment adopts Q plate welding stress elimination
treatment/overall machining, so that the equipment in the long-term heavy loadstability.

Moving knife/fixed knife:
The moving knife materialis made of alloy tool steel forging, precision machining, multiple heat treatment and cryogenic heat treatment technology. The overall toughness and hardness can be reused to ensure the cutting performance and service life. The fixed tool adopts hook type installation, which optimizes the tool replacement function and makes the tool maintenance and replacement excellent.

Motor reducer:
Adopt the brand energy efficiency standard motor,and load test before leaving the factory, to ensure the stability of the power system.

Note: One of the two styles of the following machine will be shipped randomly, the only difference is the indicator light.

Application
Industrial waste/Household waste: household waste, wood waste, kitchen waste, kitchen waste industrial waste, factory waste, municipal sludge, glass fiber reinforced plastic, pulp residue cloth;

Biomass: branches, leaves, straw, corn cob, wheat stalk, bark, banana tree, straw, garden waste;

Recycling waste: waste tires, waste paper, waste plastics, plastic bottles, chemical barrels, aluminum materials;

Destruction of product documents: computer hard drives, documents, unqualified products, expired drugs, plastic parts;

Waste treatment: medical waste, radioactive materials, organic waste, hazardous solid waste; Metal waste - paint drums, paint cans, iron oil drums, metal waste, aluminum waste.

Note
A.Each time the material is placed, it should not exceed 20-30 cubic decimeters (0.02-0.03 cubic meters) and should not exceed one-third of the hopper. Do not fill the hopper with material at once.

B.The material should be placed at an interval of about one minute each time to avoid jamming due to the excessive speed of material placement.

C.If the machine gets stuck due to excessive material placement, immediately reverse the machine for a few revolutions and turn it forward again (black button). Do not feed until the machine is running normally.

D.Check the lubricating oil in the reducer every month to ensure that the lubricating oil is in the position of the oil window (as shown in the figure).

E.Inject appropriate amount of lubricating oil into the nozzle of the four bearing seats every week.

F.When the machine is not in use, it should be turned on idling for a few minutes every few days, (positive and negative alternately) so that the residue can be cleaned up as soon as possible.

Note:This machine has no plug and needs to be connected to the air switch for use by the customer (we have a picture of the wiring, if you can't wire it, you can contact us for a picture reference).

Please wear proper personal protective equipment when using this machine, and do not put your hand into the feeding port.

Item Included: 021598
1*220V Universal Biaxial Crusher
