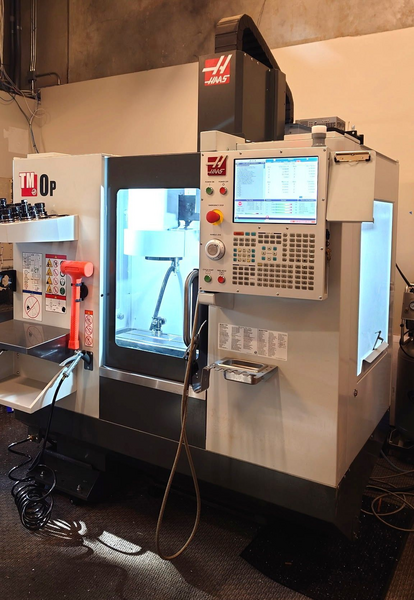

2022 HAAS TM-0P 4-axis

SPECIFICATIONS:

Travels
X Axis 20.00 in
Y Axis 12.00 in
Z Axis 16.00 in
Spindle Nose to Table (~ max) 20.0 in
Spindle Nose to Table (~ min) 4.0 in

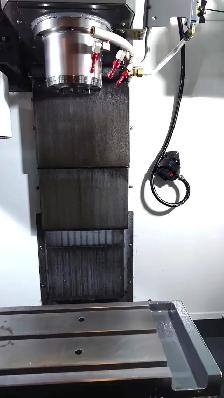

Spindle specifications
Max Rating 7.5 hp
Max Speed 6000 rpm
Max Torque 33.0 ft-lbf @ 1200 rpm
Drive System Direct Speed, Belt Drive
Taper CT or BT 40
Bearing Lubrication Grease Packed
Cooling Air Cooled

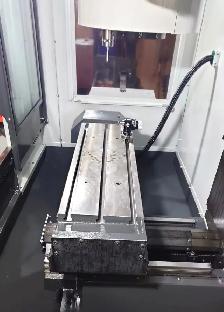

Table specifications
Length 38.4 in
Length (Work Area) 30.50 in
Width 10.5 in
T-Slot Width 0.626 in to 0.630 in
T-Slot Center Distance 4.00 in
Number of Std T-Slots 3
Max Weight on Table (evenly distributed) 350 lb

Feedrates specifications
Max Cutting 400 ipm
Rapids on X 400 ipm
Rapids on Y 400 ipm
Rapids on Z 400 ipm
Axis Motors specifications
Axis Motors
Max Thrust X 2000 lbf
Max Thrust Y 2000 lbf
Max Thrust Z 2000 lbf

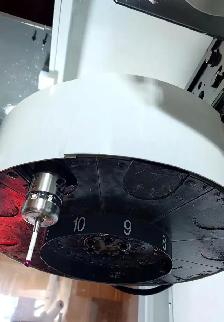

Tool Changer specifications
Type Carousel
Capacity 10
Max Tool Diameter (full)** 3.5 in
Max Tool Weight 12.0 lb
Tool-to-Tool (avg) 5.70 s
Chip-to-Chip (avg) 6.50 s

Air Requirements specifications
Air Required† 4 scfm @ 100 psi
Inline Air Hose 3/8 in
Coupler (Air) 3/8 in
Air Pressure Min 80 psi

Electrical Specification specifications
Spindle Speed 6000 rpm
Drive System Direct Speed, Belt Drive
Spindle Power 7.5 hp
Input AC Voltage (1 Phase) 220 VAC
Full Load Amps (1 Phase) 40 A
Input AC Voltage (3 Phase) - Low 220 VAC
Full Load Amps (3 Phase) - Low 25 A
Input AC Voltage (3 Phase) - High* 440 VAC
Full Load Amps (3 Phase) - High* 13 A

Dimensions - Shipping specifications
Domestic Pallet 100.0 in x 78.0 in x 99.5 in
Export Pallet 100.0 in x 78.0 in x 99.5 in
Weight 3660 lb 1660.0 kg


EQUIPPED WITH:

HAAS CNC CONTROL

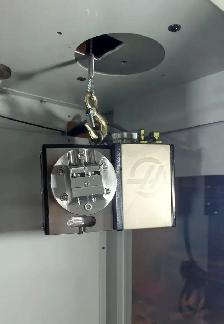

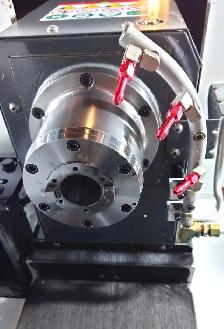

4TH AXIS ROTARY TABLE
COOLANT,
HIGH SPEED MACHINING,
RIGID TAPING,
VISUAL PROGRAMMING,

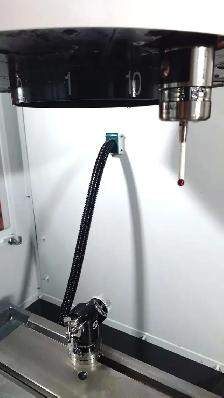

RENISHAW PROBE
337 CUTTING HOURS
$67,000 COST NEW
