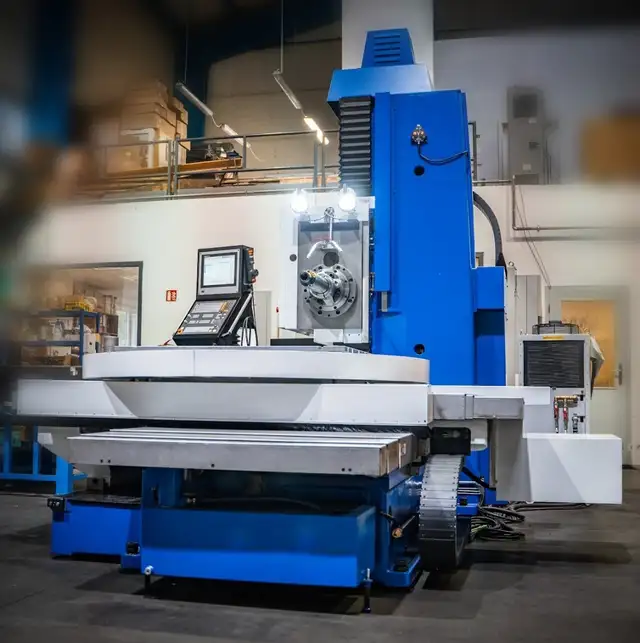

TOS WH 10 CNC table-type horizontal boring mill, fully remanufactured by FERMAT in 2026. It is in stock at our Milton, ON warehouse and available right away. Delivery in North America, installation, 3 days of operator training and a 12-month parts and labour warranty are included.

Specs:
• Spindle: 100 mm, ISO 50, 16 to 2,500 RPM
• Travels X / Y / Z / W: 1,250 / 1,030 / 930 / 600 mm
• CNC: Heidenhain iTNC 620, TS 460 probe, HR 510 handwheel
• Heidenhain linear scales on X, Y, Z, positioning accuracy under 0.02 mm
• Rotary table: 1,000 x 1,120 mm, 3,000 kg capacity, 360°
• Main motor: Siemens 17.5 kW (23.5 HP)
• Rapid traverse: 8,000 mm/min (314 in/min)
• Machine weight: 11,400 kg (25,132 lbs)

New electrical cabinet with air conditioning, CSA/UL electrics, 400 V / 3 ph / 50 Hz.
Price on request.

Contact:
1 (647) 542-2450
tosamerica.com
