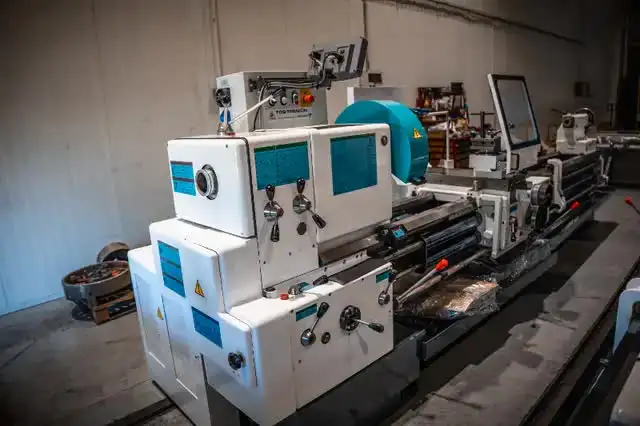

TOS Trenčín SN 71B/3000 heavy duty universal manual lathe, year 2024. It went through a full OEM general overhaul at the TOS Trenčín factory, with reground ways, new bearings in all groups, a new main motor, new electrics and fresh paint. In stock in Milton, ON and ready to ship.

Specs:
• Swing over bed 710 mm (28")
• Distance between centres 3000 mm (120")
• Swing over cross slide 420 mm (17")
• Max workpiece weight 850 kg (1870 lb)
• Spindle bore 73.5 mm (3")
• Spindle speed 10 to 1,000 RPM
• Main motor 7.5/11 kW (10/15 HP)
• Spindle mount B8 (DIN), tailstock Morse 5
• Electrical 440V / 60Hz / 3ph, CSA/UL approved
• Machine weight 3300 kg (7150 lb)

Included:
• 3 jaw chuck 315 mm with chuck cover, fixed tailstock centre
• LIMAT 2 axis DRO, made in the Czech Republic
• Multifix head type C with 2 tool holders
• Threading dial, strut bar, flanges 315 B8 and 400 B8
• Factory geometric accuracy protocol and 12 month warranty

Price on request.

Contact:
1 (647) 542-2450
tosamerica.com
