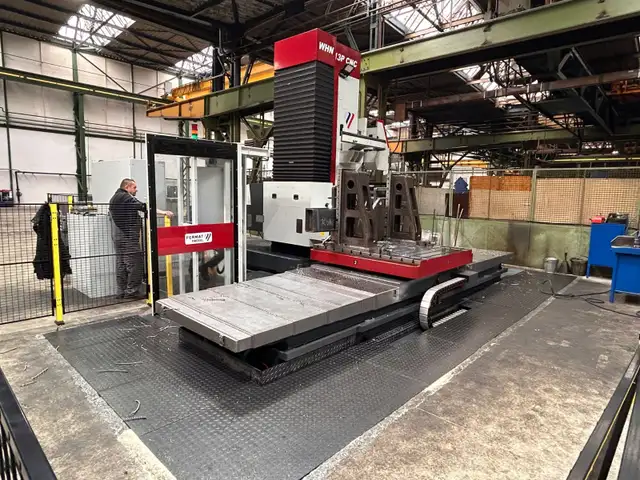

Fermat / TOS WHN 13 P CNC table type horizontal boring mill, originally TOS Varnsdorf, fully remanufactured and modernized by FERMAT in 2026. All axes were reground and fitted with new ball screws, bearings, wipers and covers. In stock at our Milton, ON warehouse and available immediately.

Specs:
• Heidenhain TNC 640 CNC, 19" screen, HR 510 handwheel
• Travels X / Y / Z / W: 3,500 / 2,000 / 1,250 / 800 mm (137.7" / 78.7" / 49.2" / 31.4")
• Spindle 130 mm (5.1"), SK50 / CAT 50 taper
• Max spindle speed 3,000 RPM
• Spindle torque 2,210 Nm S1 (1,630 lb-ft)
• Rotary table 1,600 x 1,800 mm (62.99" x 70.86"), absolute B axis encoder
• Max workpiece weight 12,000 kg (26,455 lb)
• Heidenhain absolute linear scales on X, Y, Z
• Coolant 6 bar low pressure plus 20 bar through spindle
• Air conditioned switchboard, UL/CSA certified, operator safety cabin

Included:
• Installation by TOS America / FERMAT with basic operator training
• Delivery to your premises (rigging not included)
• Anchoring material
• English documentation and manuals
• 12 month warranty, parts and labour

Price on request.
