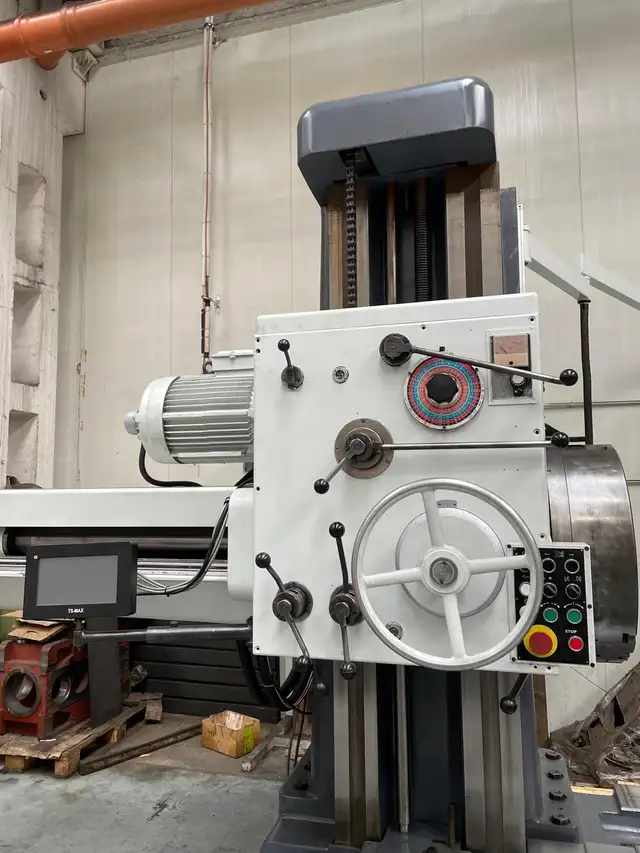

TOS / Fermat W 100 A manual table type horizontal boring mill, built on the proven TOS Varnsdorf platform. Available from TOS America in Milton, ON in remanufactured and semi refurbished options, both done by FERMAT with the same specs. Ask which configuration fits your work.

Specs:
• Spindle 100 mm (3.9"), ISO 50 taper
• Travels X / Y / Z / W: 1,600 / 1,120 / 1,250 / 900 mm (63 / 44 / 49 / 35 in)
• Spindle speeds 7 to 1,120 RPM
• Rapid traverse 2,800 mm/min (110 in/min)
• Main motor 11 kW (14 HP)
• Rotary table 1,250 x 1,250 mm (49" x 49")
• Table load 3,000 kg (6,620 lb)
• Central lubrication on all axes
• Machine weight 14,000 kg (30,860 lb)

Included:
• 24" facing head, max face milling diameter 35.5", plus documentation
• Remanufactured: 5 axis Heidenhain DRO, scales on X, Y, Z, W, B axis encoder
• Remanufactured: 1 year warranty, parts and labour
• Semi refurbished: brand new electrical cabinet and new 4 axis DRO TS MAX with new scales
• Semi refurbished: 30 day money back guarantee

Price on request.
