Item number: 057131
-

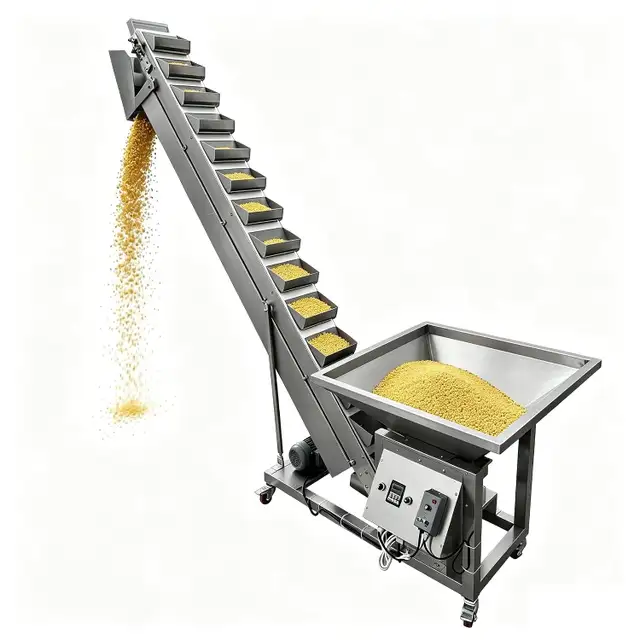

110V 6.8FT Z Type Feeder Elevating Rice Nut Conveyor Granule Food Bucket Elevator Machine, Adjustable Feeding Speed, Stainless Steel for Grain Feed Plastic Pellets 057131

Product Overview
Compared with the screw feeder, this bucket elevator is more suitable for the lifting and handling of granular materials, suitable for a variety of grains, plastic particles, feed, nuts, fine stone and other granular materials, widely used in food, chemical, construction and other industries, can greatly save manpower and time, improve production efficiency.

Product Parameters
Voltage: AC110V
Power: 400W
Height of discharge port from ground: 6.8ft(2.1m)
Hopper capacity: 39.6gal(150L)
Adjustable feeding speed: Yes‌
Material handling capacity: 1.3-17.1gal/min (5-65L/min) (adjustable)
Material diameter: ＜1.1"(3cm)
Applicable material: Granular material (Not suitable for stive form)
Hopper outlet size: 6.3"*6.3"(16cm*16cm)
Material: Stainless steel
Net weight/Gross weight: 297LB(135kg) / 522LB(237kg)
Note: Be sure to remove the screws under the vibrating feeder before use.

Precautions
1. The motor must be started before feeding the material bin.
2. The motor can only be stopped after the material bin is completely empty.
3. The material must not contain large particles (diameter shall not exceed 3 cm).
4. DO NOT put hands into the machine during operation!!!

Product Features & Advantages
Control Panel
The control panel integrates a variable-speed frequency converter, a fuse, a motor, and a vibration feeder control switch. The vibration feeder's intensity can be adjusted based on material size, making the system easy to operate.

Big Hopper
The large capacity hopper of nearly 40 gallons can add a large amount of materials at one time, which can effectively save time and improve work efficiency.

Vibrating Feeder
After the material enters the hopper, the vibrating feeder continues to transport the material. Vibration strength of the feeder can be adjusted. The feeding precision is high.


Pure Copper Motor
The machine adopts a 400W pure copper motor, delivering strong power and high efficiency. Its simple structure ensures long-lasting stability, high reliability, and low maintenance costs.

Chain Drive System
Chain drive system features low friction during transmission, ensuring smooth operation with adjustable speed via frequency conversion to accommodate various material conveying requirements.

Swivel Caster
Equipped with four universal move casters, casters are made of wear-resistant rubber material, with the foot gently stepping on the casters can be fixed, flexible movement, fixed at any time.

- Equipped with a variable-speed frequency converter, it allows flexible adjustment of the feeding rate based on material properties (e.g., particle size, density).

- Lightweight stainless steel material reduces overall weight, making the machine easier to move and handle.
- This machine is suitable for a wide range of materials; powders are not applicable, but other granular materials can be processed.
- Features reasonable structural design and simple assembly. It is easy to operate, maintain, and clean.
- The feeding process runs smoothly with low noise. The bucket feeding structure significantly improves production efficiency.
- The pellet bucket elevator is compatible with pellet packaging machines and supports personalized customization.

Operating Instructions
1. Install the drive chain.
2. Install the drive chain guard.
3. Position the bucket assembly under the machine and align it with the mounting holes for fixation. (Note: This step requires at least three personnel for safe installation. Maintain constant safety awareness!!!)
4. Secure the bucket's side support brackets by aligning and fastening them with screws. (Screws are pre-installed on the machine - remove them first before bracket installation)
5. After adjusting the bucket position, tighten all mounting screws to secure the machine.
6. Install the discharge chute guard.

Wide Application
This bucket feeder has extensive applications and can be used for lifting and conveying granular materials in various industries, such as nuts, grains, plastic pellets, feed, etc.

Item Included: 057131
1*Bucket Elevator *1
