Item number: 028332

-

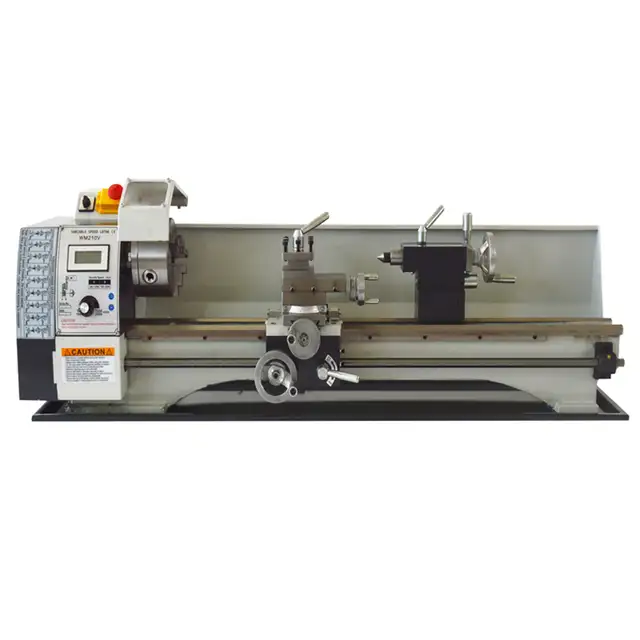

Mini Metal Lathe WM210V Metric Thread 1100W Benchtop Metal Wood Horizontal Lathe 50-2500rpm Variable Speed 8"×24" Wood Horizontal Processor with Digital Display 110V 028332



WM210V Precision Metal Lathe is mainly used for processing the end face of various rotary surfaces and rotating bodies. For example, turning inside and outside cylindrical surface, cone surface, ring groove and forming turning surface, turning end face and all kinds of commonly used metric thread, cone surface, ring groove and forming turning surface, turning end face and all kinds of commonly used metric thread.



Features:

1.The metal lathe is suitable for turning, drilling, threa ding anc cutting. Used for turning inside and outside cylindrical surface, cone surface, ring groove and forming turning surface, turning end face and all kinds of commonly used metric thread.

2.Extra-large Spindle Bore. Large spindle bore with diameter of 38mm can insert material from the aperture of the machine head, making it more convenient to process longer materials.

3.1100W brushless motor. Strong power, improve efficiency and save time.

4.Stepless Variable Speed Switch. Spindle speed is divided into high and low two gears: 50-1250rpm/m and 1250-2500rpm/m.

5.Safety Switch. Forward and reverse switch and with emergency stop switch In case of emergency can stop immediately, more safe.



Parameters:

Model: WM210V

Motor: 110V brushless motor

Voltage: AC110V 50/60Hz

Power: 1100W

Length of center: 23.6"(600mm)

Swing Over Bed: 8.3" (210mm)

Rotary diameter of tool rest: 5.51" (140mm)

Spindle bore: 1.50" (38mm)

Diameter of chuck: 4.92" (125mm)

Spindle taper: MT5

Spindle rotation speed: 50-2500rpm

Range of metric threads: 0.5-3mm

Precision of the spindle: 0.01mm

Maximum stroke of tool rest plate: 2.16" (55mm)

Maximum stroke of middle plate: 2.95" (75mm)

Maximum stroke of bottom plate: 19.7"(500mm)

Maximum stroke of tailstock sleeve: 2.36" (60mm)

Tail frame taper: MT2

Lathe sizes: 38.2"*11.8"*13.4"(97*30*34cm)

Package size: 43.7"*19.3"*17.7"(111*49*45cm)

Gross weight: 161lb (73kg)



Item Included: 028332

WM210V lathe * 1

Chuck jaw * 3

Open spanner *2

Gear *4 (40/50/60/72)

The screwdriver * 2

The fuse * 1

Hexagon wrench *5

Oil can * 1

Chuck spanner *1

English instruction manual *1
