Item #153127

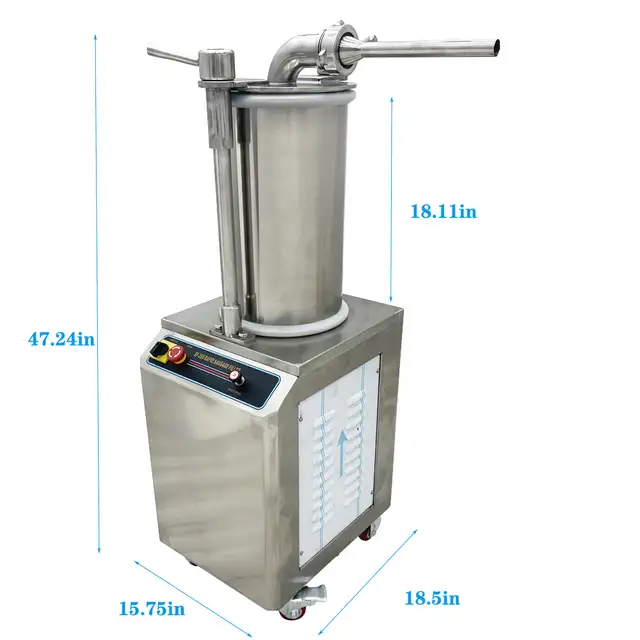

Hydraulic Automatic Sausage Stuffer Meat Filler Filling Machine SF-260 110V #153127



The machine adopted hydraulic pressure system to fill the sausage, lowness noise, high efficiency and easy operation. To adopt high quality elements and hydraulic pressure element, they are all high quality and long life. Bowl and the body of machine are made of stainless steel, luxury and beautiful, it conforms to food sanitation. Move style body, more area to be used. To adopt the knee controlling switch, more human nature.



Parameters

Voltage :110V/60HZ

Volume :26L

Power :1.1KW

Productivity :400kg/h

package size :24*19*57inch

Weight :160kg/352.8lbs



Operation：

A.At the first time, before using machine, please open cover board which on the left, then screw the exhaust hole that on top of the oil box. At last, close the cover board.

B.Before working it, please clean up the parts which will be touched the meat, such as bowl、pressure cover、piston etc.

C.Connect with power supply 220V,50Hz, and must be had the reliable ground protection.

D.Put the mixed meat filling into the bowl and tighten the pressure cover.

E.Put on the tap, then put on the casing and adjust the changeover switch to “1” position, then press the knee controlling switch and at the same time, to adjust the adjusting throttle valves of the operation board slowly, to adjust the filling speed.

F.Begin to fill the sausage.

G.After finished filling a sausage, to loosen the controlling switch, change the casing.

H.After used up one bowl of meat, adjust the changeover switch to “2” position, then press the knee controlling switch, the piston will return to the bottom of the bowl. Then as per the step of 4 and 5 and 6 and 7, repeat working.

The machine has a specification of tap for 14mm. In addition, it has other sizes tap for 12mm, 19mm, 23mm, 32mm and 40mm; the user must specially explained and pay for it else if user need to buy.





Item included:

One set of Hydraulic Automatic Sausage Filling Machine SF-260 110V (153127)



Notice

1.Limited stock, please purchase ASAP if you want it.

2.Before pickup, please call us to make sure.

3.The price will be adjusted when there's large fluctuations in exchange rates and raw material costs.

4.Advertising price does not include the tax.

-
