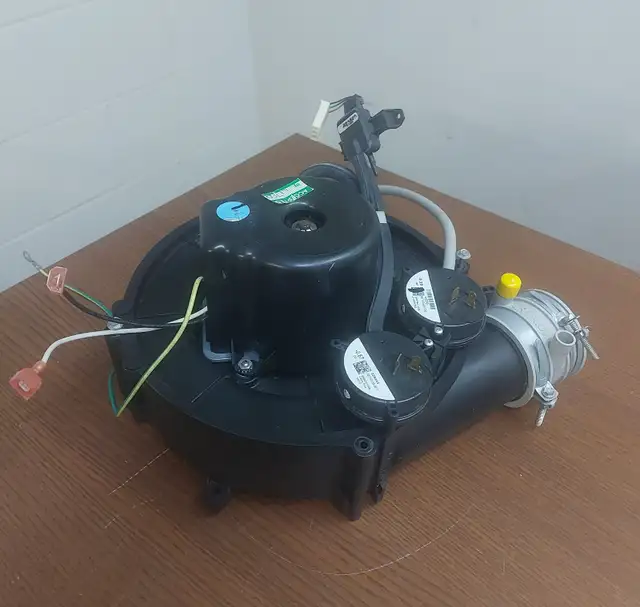

Fasco 70581023 / 341449 – York Furnace Draft Inducer Blower Assembly with Dual Pressure Switches

Condition: Used – Clean, Tested & Fully Working

Key Specifications
Brand / OEM: York / Johnson Controls / Coleman
Motor Manufacturer: Fasco
Fasco Part Number: 70581023
Customer P/N: 341449
Motor Type: J238-150
Description: Furnace Exhaust Draft Inducer Blower Assembly
Voltage: 115 VAC
Frequency: 60 Hz
FLA: 2.63A
LRA: 3.13A
Speed: 3000 RPM
Thermal Protection: Class B (T.P. / T.P.L. B)
Assembly: Complete draft inducer blower with dual pressure switches

Blower & Pressure Switches
Black plastic centrifugal blower housing
Silver metal exhaust collar coupling
Worm-gear hose clamp
AIR FLOW directional arrow stamped on exhaust collar
Includes 2 attached vacuum pressure switches
Pressure Switch Ratings:
-0.20 PF
-0.67 PF
Grey vacuum tubing included

Wiring & Connections
Multi-wire control harness with white modular rectangular plug
Black & White: Motor power leads with female insulated quick-connect spade terminals
Green: Ground wire with ring terminal
Integrated wiring for pressure-switch controls

Common Applications
York furnaces
Coleman furnaces
Johnson Controls HVAC equipment
Furnace combustion / exhaust systems
Draft-proving and pressure-switch circuits

Compatibility
Commonly associated with compatible York / Coleman / Johnson Controls furnace models using:
Fasco 70581023 / Customer P/N 341449 / Type J238-150
⚠️ Please verify the existing inducer part number, voltage, RPM, pressure-switch ratings, mounting configuration, exhaust outlet, and electrical connections before purchasing.
