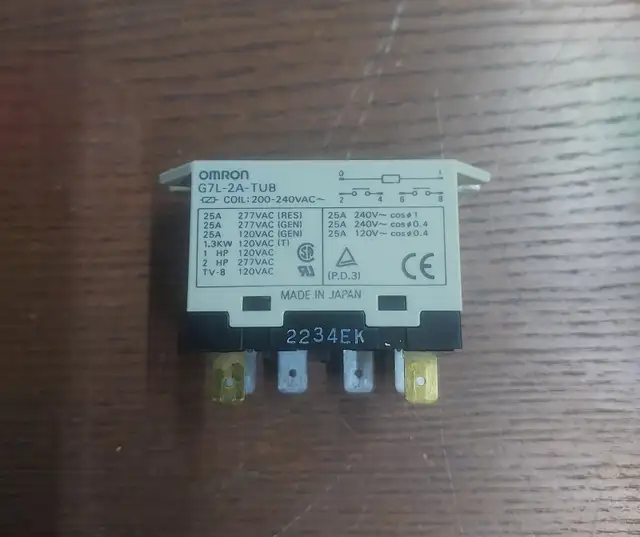

OMRON G7L-2A-TUB – 25A DPST-NO Flange-Mount Power Relay

Condition: Used – Clean, Tested & Fully Working

Key Specifications
Brand / OEM: OMRON
Model / Part Number: G7L-2A-TUB
Housing Stamp: 2234EK
Description: 25A Flange-Mount Power Relay
Coil Voltage: 200–240 VAC
Contact Configuration: DPST-NO (Double Pole Single Throw – Normally Open)
Maximum Load: 25A @ 277 VAC (Resistive)
General Load Rating: 25A @ 120 VAC
Motor Rating: 1 HP @ 120 VAC
Motor Rating: 2 HP @ 277 VAC
Made In: Japan

Terminal Connections
Terminal Type: Standard male quick-connect spade terminals
Coil: Terminals 0 & 1
Normally Open Contacts: Two independent NO contact sets
Contact Bridges: Terminals 2–4 and 6–8, according to the printed casing diagram
Configuration: DPST-NO

️ Construction & Mounting
Two-part plastic housing
Upper mounting bracket / flange
2 mounting holes
Flange-mount TUB design

Common Applications
HVAC electrical control systems
Furnace and air-handler equipment
Fan and blower circuits
Heating and cooling equipment
High-current electrical switching
General-purpose power control applications

Compatibility
Suitable as a replacement where the original relay requires:
200–240 VAC coil DPST-NO contacts compatible load rating
⚠️ Important: This relay uses a 200–240 VAC coil, not a standard 24 VAC HVAC control coil. Verify the original relay's coil voltage, contact configuration, terminal layout, and mounting pattern before installation.

✅ Why Buy From UMSOL?
Clean, tested and fully working HVAC components
Quality used and new electrical parts
Cost-effective replacement option
Professional HVAC support available
