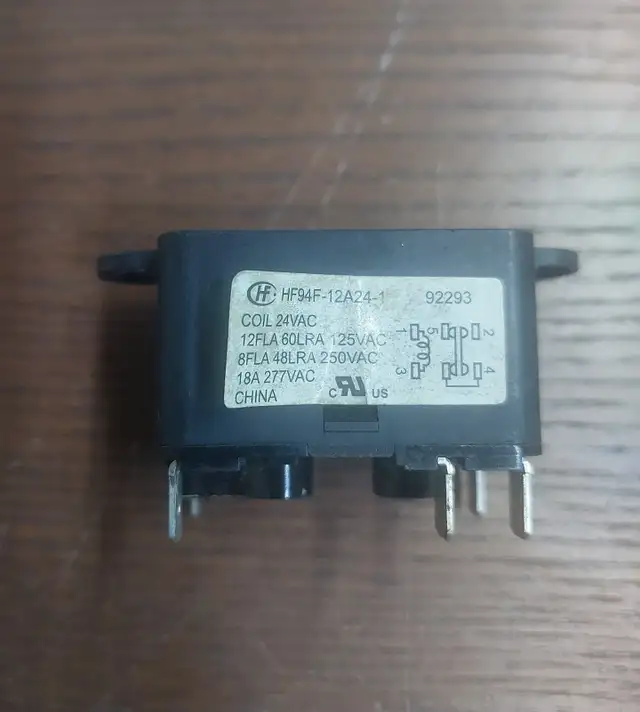

Hongfa HF94F-12A24-1 / 92293 – 24V HVAC Power Relay SPST-NO

Condition: Used – Clean, Tested & Fully Working

Key Specifications
Brand / OEM: Hongfa (HF)
Model: HF94F-12A24-1
Part Number: 92293
Casing Stamp: T201825
Description: 24V General Purpose HVAC Power Relay
Configuration: SPST-NO (Single Pole Single Throw – Normally Open)
Coil Voltage: 24 VAC
Load Rating @ 125 VAC: 12 FLA / 60 LRA
Load Rating @ 250 VAC: 8 FLA / 48 LRA
Load Rating @ 277 VAC: 18A
Certification: cURus Recognized Component
Made In: China

Terminal Connections
Terminals: Four 1/4" male quick-connect spade terminals
Coil: Terminals 1 & 3
Normally Open Contacts: Terminals 2 & 4
Terminals 5 & 6: Unpopulated on this unit
Terminal numbering corresponds to the printed electrical diagram and molded housing markings.
️ Construction & Mounting
Enclosed black plastic housing
Non-positional mounting flange
2 mounting screw holes
Compact design for HVAC electrical control applications

Common Applications
HVAC control systems
Furnace electrical controls
Air conditioning equipment
Blower and fan circuits
Heating and cooling equipment
General-purpose 24V switching applications

Compatibility
Suitable as a replacement where the original relay requires:
24 VAC coil SPST-NO contacts compatible load rating
⚠️ Please verify the relay model, coil voltage, contact configuration, load rating, terminal numbering, and mounting pattern before installation.


✅ Why Buy From UMSOL?
Clean, tested and fully working HVAC components
Quality used and new electrical parts
Cost-effective replacement option
Professional HVAC support available
