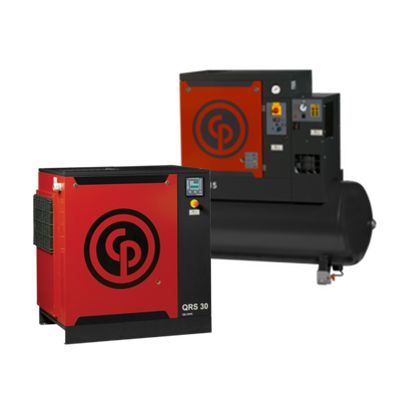

Chicago Pneumatic QRS Series Tank Mount, c/w Dryer (5-30HP Units)

Please Contact for more information @ 416-573-7573

Model #: QRS5HPD-TM
Description: 5HP
230/1/60, 230/3/60 & 575/3/60 available,
18.1 acfm @ 145 psi, 60 Gallon CRN approved horizontal tank
Price: $8896.00 (Delivery & Start Up Included)

Model #: QRS7.5HPD-TM
Description: 7.5HP
230/1/60, 230/3/60 & 575/3/60 available,
26.1 acfm @ 145 psi, 60 Gallon CRN approved horizontal tank
Price: $9509.00 (Delivery & Start Up Included)

Model #: QRS10HPD-TM
Description: 10HP
230/3/60 & 575/3/60 available,
31.2 acfm @ 145 psi, 120 Gallon CRN approved horizontal tank
Price: $11 328.00 (Delivery & Start Up Included)

Model #: QRS15HPD-TM
Description: 15HP
230/3/60 & 575/3/60 available,
49.2 acfm @ 145 psi, 120 Gallon CRN approved horizontal tank
Price: $14 633.00 (Delivery & Start Up Included)

Model #: QRS20HPD-TM
Description: 20HP
230/3/60 & 575/3/60 available,
82.2 acfm @ 125 psi, 120 Gallon CRN approved horizontal tank
Price: $18 136.00 (Delivery & Start Up Included)

Model #: QRS25HPD-TM
Description: 25HP
230/3/60 & 575/3/60 available,
99.4 acfm @ 125 psi, 120 Gallon CRN approved horizontal tank
Price: $21 004.00 (Delivery & Start Up Included)


Model #: QRS30HPD-TM
Description: 30HP
230/3/60 & 575/3/60 available,
113.8 acfm @ 125 psi, 120 Gallon CRN approved horizontal tank
Price: $23 497.00 (Delivery & Start Up Included)

Standard Features:
• Low sound enclosure
• Continuous operating capability
• Single phase 230 TEFC motor (5-7.5)
• 3-phase, 208-230and 575V, TEFC Motor (5-30)
• Start/stop operation
• Load/no-load operation with timed shutdown
• UL, cUL and CSA approved control panel
• 5 year warranty with authorized start-up
• Spin-on oil filter and separator
• NEMA 1 electrical protection
• Vibration isolated assembly

** Note(s)**
- Financing Available (Please ask for details)
- Delivery: Included
- 10 year warranty option available (Please contact for details)
- Installation & Setup also available (Please contact for details)
