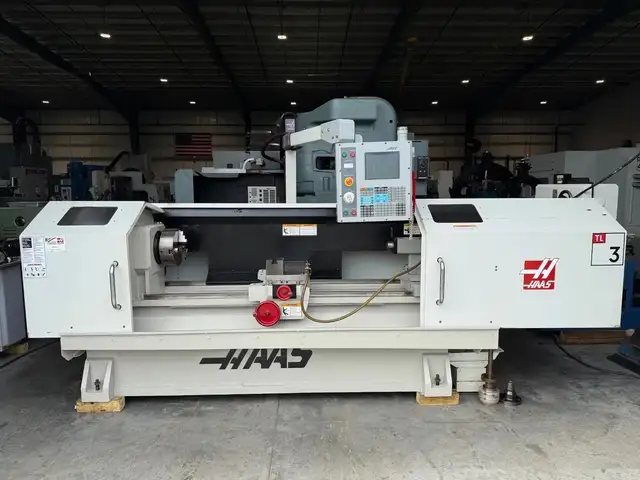

2006 HAAS TL-3 CNC Toolroom Teach Style Lathe

Maximum swing- 20”
Swing over cross slide- 13”
Maximum cutting diameter- 16”
Maximum cutting length- 60”
Distance between centers- 60”
X axis travel- 12”
Z axis travel- 60”
Rapids on X axis- 450 I.P.M.
Rapids on Z axis- 450 I.P.M.
Spindle nose- A2-6
Max spindle speed- 1800 R.P.M.
Spindle bore- 3.5”
Equipped With

HAAS CNC control
Control options- Rigid Tapping, DNC, M19 Spindle Orient, Quick Code, Brushless Barfeeder Interface, Intuitive Programming Systems
Machine hours- Servo time- 18,763 In motion time- 7,685, Spindle time- 4,741
Tailstock
12” BTC 3 Jaw Chuck “Adjust-Tru” Type
5-C Collet chuck & Pneumatic draw tube
Coolant tank & pump
Chuck wrench
Main spindle motor 18 H.P.
Machine is wired for 208/230 volt / 3 phase / 60 H.Z.
Machine weight- 8500 Lbs.
Machine dimensions- 118” x 69” W x 83” H
