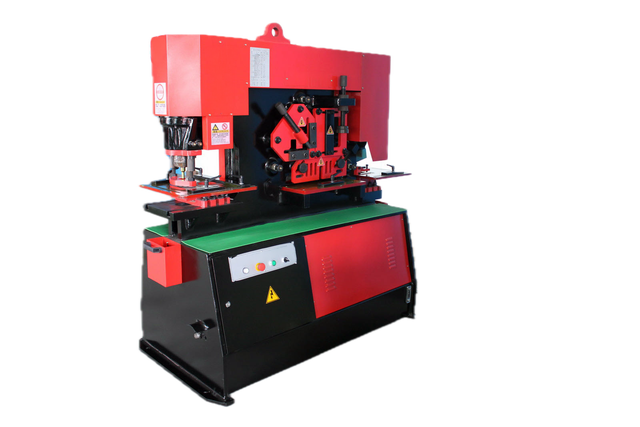

Hydraulic Ironworker Machine for Aluminum, and steel work
Machine is equip with punching and angle die
Punch station can do punch holes on the plates, profiles, extrusions, square and round cutting die,
Standard Back Gauge
Operation made easy with Foot Switch
Optional Features of the Hydraulic Ironworker
Channel Cutting Die
Hydraulic Clamps
Bending Tools
Laser Protection
Model Q35Y
Punching pressure(T) 90
Max.cutting thickness(mm) 20
Plate strength（N/mm²） ≤450
Angle of shear(°) 8°
A trip size(T*W) (mm) 20*330 10*480
Slider trip(mm) 80
Trips frequency(times/min) 12-28
Throat depth(mm) 355
Punching thickness(mm) 20
Max.punching
diameter(mm) 30
Main motor power(kw) 5.5
Overall
dimensions(L*W*H) (mm) 1920*790*1990
Machine Weight(kgs) 2200

Moon Machinery Inc. is a Canadian supplier specializing in high-quality industrial machinery for Metalworking Machine. Based in Ontario, the company provides specialized equipment for sheet metal cutting, forming , rolling , pipe notching cutting and welding , fenestration industry box forming
www.MoonMachineryinc.com
1

Core Offerings & Expertise
The company is a primary source of cutting edge reliable industrial machinery equipment in Canada and advanced CNC solutions, including:
Precision Hydraulic and electrc Press Brake: Available in Hydraulic electric and hybrid models, automatic, and CNC-controlled configurations. These are designed for precision fabrication. Specialized Machinery: Adjustable cutting angle saws, dual-head configurations, and machines integrated with dust collection systems.
CNC Laser Cutting Machine: Advanced cutting technology with 4’ by 4’ to 7’ by 60’ custom. size fiber laser cutting tables on the powers up-to 60kw

Broad Industrial Range: Their catalog also includes CNC laser cutters (fiber laser), press brakes, ACM router, shears, v grooving machine, ironworker machine,


Contact Information
The company has recently updated its primary location to Woodbridge:


Address: 5 Director Court, Unit 101, Woodbridge, ON L4L 4S5


Phone: 647-250-7505 (General Inquiry) / 1-866-550-7898 (Toll-Free)


Email: info@moonmachineryinc.com


Website: moonmachineryinc.com
Key Services
Sales & Service: They provide both new and used equipment with available VIP service deals and extended warranties.


Technical Support: Offer installation, operator training, maintenance contracts, and remote technical support.


Bilingual Support: They provide services and software interfaces in both English and French to serve the Canadian market effectively.


Whether you are looking for a top-selling Fiber laser cutting machine , bandsaw saw or a specific industrial solution for window and door manufacturing, Moon Machinery focuses on high-precision equipment tailored to industrial fabrication needs.
