Item number: 056792

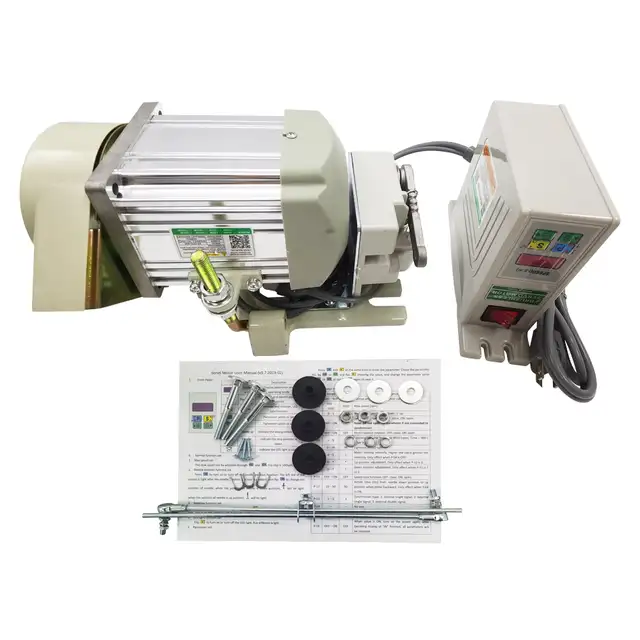

Sewing Machine Drive Motor 1KW(1.3HP) Electric Permanent Magnet Brushless DC Servo Motor Split Type 056792



Product Overview

Energy Efficient - Saves up to 70% Electricity. Draws minimal electricity when machine is not running.High Torque D.C. Electronic Servo Motor,1.3HP, 1000 Watts Powerful Heavy-Duty electric servo motor for any type of industrial sewing machines and small equipment.It can be applied to a variety of industrial sewing machines. For industrial sewing machines



Product Parameters

Voltage: AC110V 50/60Hz

Power: 1.3HP(1000W)

Speed adjustment range: 500-2500rpm

Diameter of external shaft of motor: 0.59"(15mm)

Torque: 12N.m

Package size: 12.6"*11.4"*8.7"(32cm*29cm*22cm)

Net weight/Gross weight: 13.4LB(6.1kg)/14.4LB(6.55kg)



Product Features & Advantages

- Support needle positioner Function, motor will run with or without the synchronizer.(the Needle Positioner need to buy extra)

- Pure copper brushless motor with copper content up to 99.5%, low vibration and noise.

- Spring multigear infinitely variable speed adjustment, brake sensitive.Adjustable belt tightener.

- Strengthen the thickened motor base, three screws bi-directional fixed motor, more firm and not easy to loose.

- With LED lamp socket, display real-time display speed, convenient operation.The separate structure can be installed according to the actual situation.



Item Included(056792)

Sewing machine servo *1 Pull rod *1 Gasket *3

Fixing screw *3 Nut *3 Flat pad *3

Line buckle *3 Self-tapping screw *3 English manual *1

Cushion *3



Notice

1.Limited stock, please purchase ASAP if you want it.

2.Before pickup, please call us to make sure.

3.The price will be adjusted when there's large fluctuations in exchange rates and raw material costs.

4.Advertising price does not include the tax.
