Item number: 056575



Pneumatic Hose Cleaning Gun kit Hose Tube Cleaning Set With 9 Nozzles 1/4" To 2" 056575

-

Product Overview

This hose and tube cleaning set uses a pneumatic launching gun, adapted to different pipe nozzles, to launch a sponge projectile selected according to different pipe diameters and pollution conditions inside the pipe. The projectile in the process of passing through the steel pipe or hose assembly in the pipeline close to the pipe wall, relying on the compressed air thrust, quickly all the pollutants on the pipe wall out of the pipe. This cleaning method is easy to operate, fast, non-chemical corrosion, no residue in the pipe, cleanliness can reach IS013/10 or NAS4 level.



Product Parameters

Package includes: Hose cleaning gun, nine hose nozzles, quick coupling(for connecting 1/2" inner diameter), portable box, H06 / H10 / H13 / H16 / H19 / H25 / H32 / H38 / H50

Inner diameter of applicable piping: 1/4"-2"(0.6cm-5cm)

Compressed air: 5.5 bar - 7.5 bar

Projectiles: 10/12/14/18/22/26/33/40/50/60

Power source: Connected air pump or Air compressor

Scope of application: Seamless steel tubes, condensate tubes, hoses and hose assemblies

Package size: 22.83"*15.35"*8.66" (58cm*39cm*22cm)

Net weight/Gross weight: 2.9lbs(1.32kg)/8lbs(3.65kg)



Product Features & Advantages

- A supporting product of the tube shrinking machine series, mainly used to clean the impurities inside the tube processing machine and keep the hose free.

- The Hose cleaning gun is made of hard aluminum alloy, which has the characteristics of light weight, high strength, durability and wear resistance.

- This cleaning method is easy to operate, fast, non-chemical corrosion, no residue in the pipe, cleanliness can reach IS013/10 or NAS4 level.



- Weighing only 2.9 lbs, this super lightweight cleaning gun can quickly be taken anywhere, easy to operate and carry.



- It can effectively remove particles, oil, floating rust, etc. from seamless steel tubes, condensate tubes, hoses and hose assemblies, easily solving the problem of hydraulic line pollution. It can replace the traditional water cleaning technology.



- Can be used in the following industries: marine pipeline cleaning, floor heating pipeline cleaning, food factory pipeline cleaning, shipyard pipeline cleaning, air conditioning and refrigeration pipeline cleaning, hydraulic hose cleaning, hydraulic hose cleaning, engineering machinery and equipment maintenance.



Cleaning Procedure

Step 1: Open panel and load nozzle.

Step 2: Select the projectile and put it in the nozzle.

Step 3: Close the panel and fasten the latch.

Step 4: Align the pipe and pull the trigger.

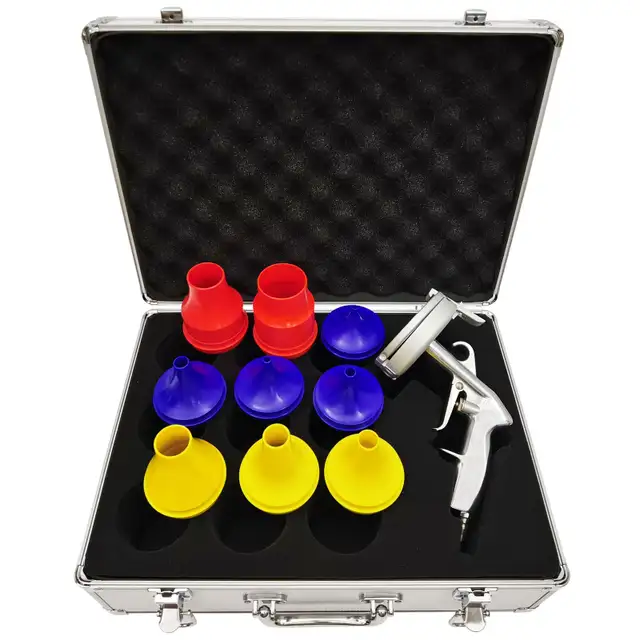

Item Included: 056575

Hose And Tube Cleaning Set *1

Portable Box *1

Accessories Package *1
