Item number: 056148

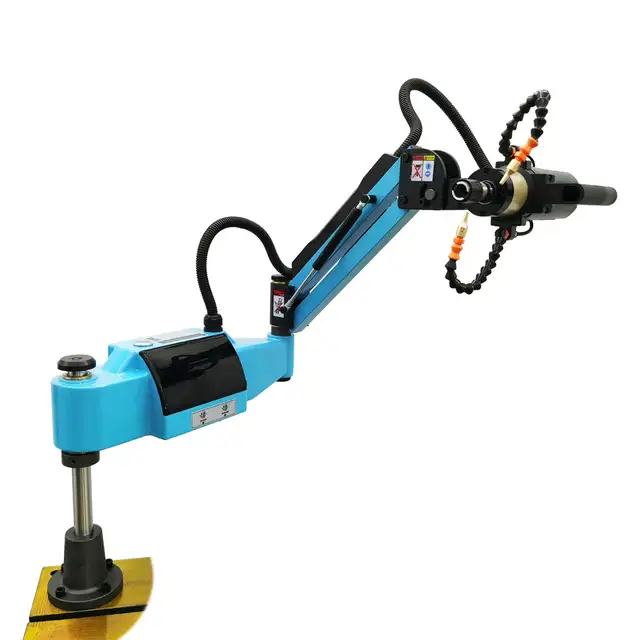

M3-M16 Universal 360° Electric Touch Tapping Machine with Inch Tap Collets 220V 600W 056148



Product Overview

This product is based on servo motor as power electric tapping machine, widely used in all walks of life all kinds of large and small machine and all kinds of materials, parts of molds and wood tap wire processing, the product is well-made, quality first-class, was deeply loved by the masses of customers and praise, are you tapping processing of choice.



Product Parameters

Tapping capacity: M3-M16

Voltage: AC220V

Motor Power: 600W(0.8HP)

Collet type: GT12

Working area: Horizontal:43.3"(1.1m)

Vertical: 21.6 "(0.55 m)

Spindle speed: 1-312rpm

Working angle: 360°universal

Maximum torque: 35N.m

Color: Blue

Package size: 28.7"*29.1"*10.6"(73cm*74cm*27cm)

Net weight/Gross weight: 50.7LB(23kg)/70.5LB(32kg)



Product Features & Advantages

1.Smart Touch Sereen

The newly upgraded smart touch

screen is easy to set and responsive,with two languages, Chinese and English, and can display the torque in real time; the protective cover design can protect the touch screen.



2.Oil&Air Injection

This machine has added the oil injection & air function, which can be controlled by the control panel Settings during tapping to control the oil injection lubrication and air removal of iron filings, greatly saving manpower and improving work efficiency!



3.Forward & Reverse

The handle of the machine head is

designed with forward and reverse

buttons, which is comfortable to hold,and can be tapped during forward rotation. After tapping is completed,press the reverse button to exit the tap.



4.Planetary Reducer

The planetary reducer is oil-proof,

anti-collision and dust-proof, which

can effectively support the long-term operation of the motor, reduce the motor speed and increase the torque,thereby reducing energy consumption.



5.Heat Emission Hole

The machine is designed with

heat dissipation holes, which can

timely discharge the excess heat

generated in the process of work,

prevent overheating and protect

the machine.



6.Servo Motor

High-power servo motor, strong

power and stable operation, can

ensure the tapping accuracy;

fast heat dissipation, can work for

a long time, and has a certain

overload capacity.



Item Included(056148)

Tapping Machine *1 Collet *8 English Manual *1

Wrench *1 Screw *4 Power Cord *1

Air Tube *1
