Item number: 028359

-

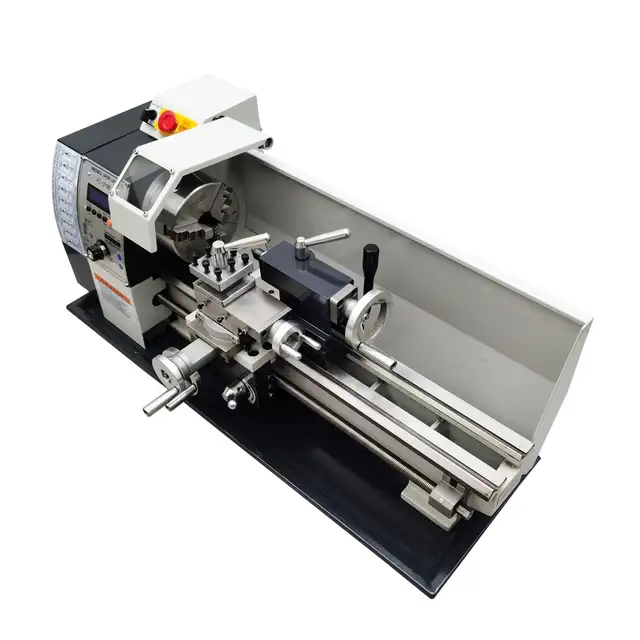

Metal Lathe RC-210E Automatic Inch/Metric Conversion 1100W Benchtop Electronic Gear Lathe Machine 50-2500rpm Variable Speed 8"*16" Electronic Pulse Precision Wood Horizontal Processer 110V 028359



Product Overview

Miniature lathe is mainly used for processing the end face of various rotary surfaces and rotating bodies. For example, turning inside and outside cylindrical surface, cone surface, ring groove and forming turning surface, turning end face and all kinds of commonly used metric thread, cone surface, ring groove and forming turning surface, turning end face and all kinds of commonly used metric thread.

The design of this new lathe is a great innovation, it solves many disadvantages of other lathes in the past, greatly improves the processing accuracy and processing efficiency, can save a lot of precious time for you, choose it you will not regret!!



Product Parameters

Model: RC-210E

Voltage: AC110V(Brushless Motor)

Power: 1100W(1.5HP)

Length of center: 15.75"(400mm)

Swing Over Bed: 8.27"(210mm)

Rotary diameter of tool rest: 5.51"(140mm)

Spindle bore: 1.50"(38mm)

Diameter of chuck: 4.92"(125mm)

Width of lathe bed: 3.94"(100mm)

Thread standard: Metric/imperial/customized

Turning delay start time: 1s-30s

Number of Spindle Speeds: Infinitely variable speeds

Range of Inch Threads: 10-44T.P.I

Range of metric threads: 0.5mm-3mm

Spindle taper: MT5

Knife rest labour: Horizontal four-station

Spindle rotation speed: 50-2500rpm

Precision of the spindle: 0.01mm

Automatic feed range: 0.01mm-0.4mm

Tail frame taper: MT2

Maximum stroke of tool rest plate: 2.16"(55mm)

Maximum stroke of middle plate: 2.95"(75mm)

Maximum stroke of bottom plate: 19.68"(500mm)

Maximum stroke of tailstock sleeve: 2.36"(60mm)

Package size: 35.8"*18.5"*17.3"(91cm*47cm*44cm)

Net weight/Gross weight: 125.7LB(57kg)/159.8LB(72.5kg)



Product Features & Advantages

Metric & Imperial

Switching between metric and

imperial is no longer required by

changing gears! Only need to

operate through the panel, save

a lot of time!



Gearless Design

New gearless design! Brand new

belt drive! Lower noise, no longer

need to change gears to adjust the

processing thread, only need to

operate on the panel, processing

efficiency greatly improved!



Self-acting Feed

Self-acting feed design solves

many disadvantages of manual

feeding, and can set self-acting

feed speed through the panel,

greatly improve the machining

accuracy and efficiency.



Speed Control Knob

The spindle rotation speed is

divided into two adjustable gears,

respectively 50-1250rpm and 1250

-2500rpm. The panel can observe

the rotation speed in real time,

which is flexible and convenient.



4-way Tool Post

The adjustable 4-way tool post on

the lathe allows you to easily change your cutting tools. The 8 screws allow you to better grip the tool and finish the machining efficiently.



Three Jaw Chuck

High-precision three-jaw chucks

with 125mm clamping diameter

are used to clamp square and

round materials firmly ,We also

offer optional four-jaw chucks.



Switch

Control panel above the design of

forward and reverse switch and

start & emergency stop switch, easy to operate, in case of emergency can immediately cut off the power supply, to ensure personal safety.



Metric Scale

Precise metric scale are provided

on the saddle handle, the tailstock

handle and the movable center,

allowing for more accurate and

professional work.If you need the

inch scale can be customized.



Accurate Tailstock

The tailstock is movable and fixed,

with a maximum center distance of

31.5 inches at the far right. With the

MT#2 taper in tailstock spindle, this

lathe machine is capable of adjusting set screws for accurate operation.



Wide Application

This mini metal lathe is suitable for

many processing tasks including

turning, drilling, threa ding and

cutting and so on.It can meet most

of your DIY processing needs.





- It can automatically switch between metric and inch systems without changing gears.

- In the X axis direction can be automatic feed, no manual; Automatic feed speed can be adjusted; Automatic feed range reached 0.01mm-0.4mm!

- There are three ways to start turning: manual start, automatic start, delay automatic start.

- Indexing function: you can switch the direction of turning tool through "DIR" button; Angles can be cleared with one click.

- Control panel set parameters after saving and start, can realize reciprocating turning function and turning thread.



Item Included(028359)

RC-210E lathe *1 Base oil pan *1 English manual *1

Oil can *1 Hexagon wrench *5 Open spanner *2

The screwdriver *2 Chuck jaw *3 Chuck spanner *1
