Item number: 028284

-

WM210V Mini Metal Lathe 8"x16" Metric Precision Metal Bench Lathe Metalworking Lathe Bench Metal Milling Machine Miniature Lathe Milling Machine 900W 110V 028284



Miniature lathe is mainly used for processing the end face of various rotary surfaces and rotating bodies. For example, turning inside and outside cylindrical surface, cone surface, ring groove and forming turning surface, turning end face and all kinds of commonly used metric thread, cone surface, ring groove and forming turning surface, turning end face and all kinds of commonly used metric thread.



Parameters:

Model: WM210V

Motor: 110V brushless motor

Voltage: AC110V 50/60Hz

Power: 900W

Length of center: 15.7"(400mm)

Swing Over Bed: 8.3" (210mm)

Rotary diameter of tool rest: 5.51" (140mm)

Spindle bore: 1.50" (38mm)

Diameter of chuck: 4.92" (125mm)

Width of lathe bed: 3.94" (100mm)

Number of Spindle Speeds: Infinitely variable speeds

Spindle taper: MT5

Knife rest labour: Horizontal four-station

Spindle rotation speed: 50-2500rpm

Range of metric threads: 0.5-3mm

Range of Inch Threads(optional accessory ): 10-44T.P.I

Precision of the spindle: 0.01mm

Automatic feed range: 0.1mm-0.2mm

Maximum stroke of tool rest plate: 2.16"(55mm)

Maximum stroke of middle plate: 2.95"(75mm)

Maximum stroke of bottom plate: 10.87"(276mm)

Maximum stroke of tailstock sleeve: 2.36"(60mm)

Tail frame taper: MT2

Lathe sizes: 31.9"*11.8"*13.8"(81*30*35cm)

Package size: 35.4"*19.3"*17.7"(90*49*45cm)

Gross weight: 141lb(64kg)



Note:*We provide optional parts for this lathe. If you need, please contact us*.



Features & Advantages

- High quality cast iron bed after high frequency quenching process and precision grinding

- The spindle rotation speed is divided into two levels in the range of 50-2500rpm, which can be adjusted continuously

- Brushless motor has strong power, low noise and saves energy consumption

- High precision spindle, high quality bearing, high accuracy, wear resistance, long life

- With one button start and stop switch and forward and reverse switch

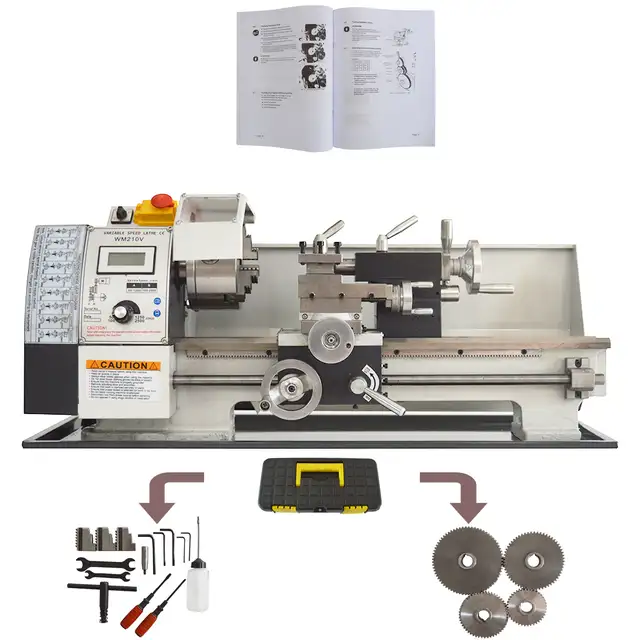

Item included: 028284

WM210V lathe * 1

Chuck Jaw * 3

Gear *4 (40/50/60/72)

The Screwdriver * 2

Open spanner *2

Hexagon Wrench *5

Oil can * 1

The Fuse * 1

Chuck Spanner *1

English Instruction Manual *1
