Item number: 056650

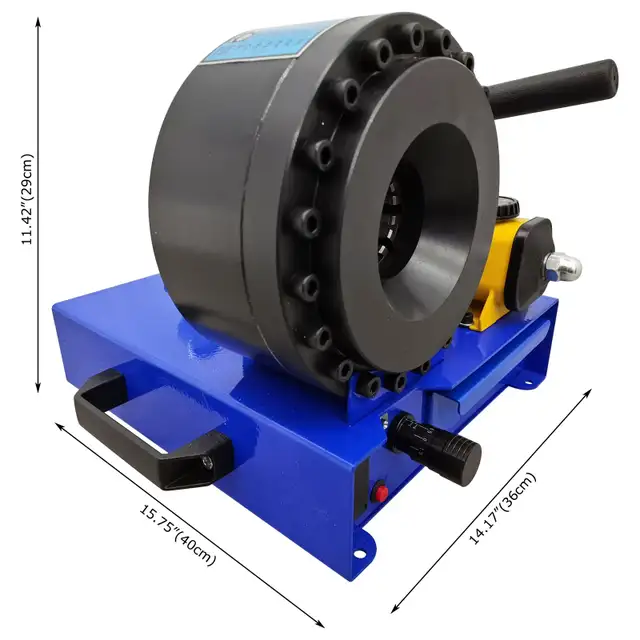

1" Portable High Pressure Hose Crimper Hydraulic Pipe Shrinking Machine 7 Sets of Dies 056650
-
Product Overview
The clamping machine is a kind of hydraulic equipment used for clamping pipe assembly, the supporting metal joint through the clamping machine mold to exert shrinkage force, the metal joint firmly clamping in the supporting construction machinery with high pressure oil pipe or car brake pipe, oil pipe, air conditioning pipe, power pipe. It is suitable for all kinds of mechanical high and low pressure oil pipe, gas pipe, water pipe, cable joint, automobile air conditioning pipe, automobile power steering pipe, oil pipe, gasoline supply oil pipe, as well as construction accessories, daily hot water pipe, widely used in vehicles, construction machinery, hydraulic machinery, welding and cutting equipment and other industries.

Product Parameters
Voltage & Power: By hand & No motor
Crimp range: 0.24"-0.98"(6mm-25mm)
For hydraulic hose: 1/4inch to 1inch 1&2 steel wires(R1&R2)
Max opening without dies: 1.89"(48mm)
Crimp force: 1000KN
Dies quantity: 7sets(8/10/12/16/19/23/27mm)
Hydraulic oil tank capacity: 0.26gal(1L)
Oil Pump Pressure: < 35Mpa
Indicator light battery specification: 9V battery(exclude battery)
Package size: 17.72"*16.54"*13.39" (45cm*42cm*34cm)
Net weight/Gross weight: 67.90lbs(30.8kg)/80.69lbs(36.6kg) Net weight/ gross weight: 67.90 LBS (30.8kg)/80.69 LBS (36.6kg)
Note: There is no hydraulic oil in the machine, and No. 46 hydraulic oil must be filled before use.

Product Features & Advantages
a. Pressure Gauge
There is a pressure gauge in the middle of the pipeline of the crimping machine, which can observe the change of the pressure in the loop during the working process instantly, accurate and efficient.

b. Handle
The left and right sides of the crimping machine are designed with detachable handles, comfortable grip, easy for two or one person to move the machine

c. Operation Panel
Indicator light on the operation panel can remind you that the crimping is complete. Micrometer can fine tune the shrink tube size, precision 0.04" to ensure the machining accuracy.

d. Dies & Clamp Base
Dies and clamping base are made of high quality 45 steel, after quenching treatment, greatly improve the hardness, more wear-resistant, higher precision, crimping effect is good.

e. Drawer Box
Crimping machine comes with drawer box design, drawer contains 8 small lattice storage slots, can store 8 sets of molds, easy to take and put molds, save space.

f. Fluid Pump
Manual hydraulic pump simple operation, short stroke, save time and effort; The tank is made of corrosion-resistant material; Built-in safety valve for overload protection.

Features:
- Small size and light weight; Easy to carry, can go out with the vehicle for outdoor operations, not subject to site restrictions.
- Simple structure, easy operation, just add No.46 anti-wear hydraulic oil can be used, no maintenance, long service life.
- High quality forged steel head, more durable than ordinary steel; Changing the die is very simple.
- The locking mechanism components are made of high quality alloy steel materials and unique heat treatment process to ensure the reliability and service life of the equipment.
- Widely used in all walks of life, can be used for hydraulic hose, steel pipe, iron pipe and other crimping processing.


Item Included: 056650
Crimping Machine *1
Dies *7
English Manual *1
