Item number #.153027
Youtube: https://www.youtube.com/watch?v=7uhE2le_NO0&feature=youtu.be
-
Description：

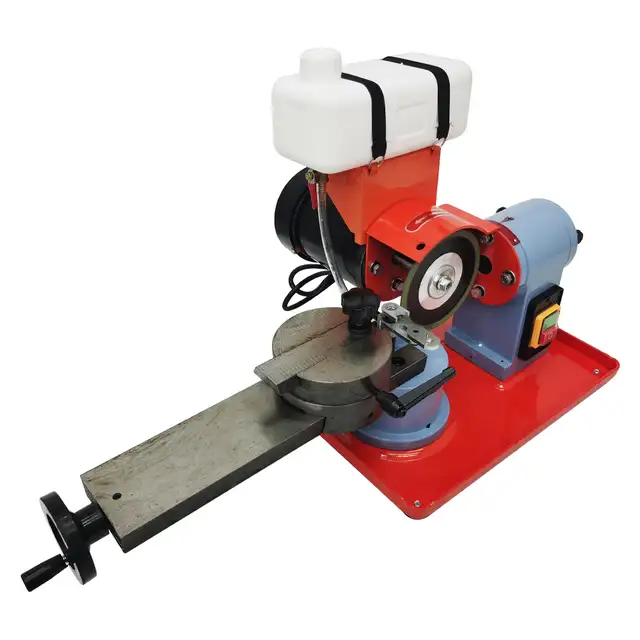

The machine is an updated one with a water box could reduce the damage of grinding wheel and the high temperature. It is designed for sharpening various kinds of carbide tipped saw blades from size 80mm to 700mm.It's also suitable to grind other material, such as plastic, wood, aluminum alloy for different purpose like furniture manufacturing, decoration etc. Its fascia can support the teeth of saw blades and other parts in order to prevent jumping and improve grinding quality .
-
Parameters:
Voltage：110V
Grinding Wheel Size：4.92"(12.5cm)
Bore Size of Grinding Wheel：1.26"(3.2cm)
Adjusting Range of Grinding Wheel： /-20 degrees
Power：250w
Handle Turning Angle：30 degrees from left and 45 degrees from right
Revolution：2850rpm
Product Dimension：28.35"x16.93"x11.81"(72x43x30cm)
Package Dimension：16.93"x16.93"x13.58"(43x43x34.5cm)
Weight：70.4lbs (32kgs)
-
Method of operation
First ,loosing the fascia, then adjust the angle of grinding blade and fasten.
Second, adjusting of center axle
1)Rotating the center axle to the grinding blade
2)Pushing the center axle to the right
3)Installing the saw blade ,rotate the wheel and decide the position of grinding surface saw teeth
4)Rotating the rotation table to ensure the angle of grinding blade.
5)The cross angle between the grinding surface and work surface is about 5°.
Third, adjusting of positioning assembly.
1)Adjusting the saw blade to the best grinding position, rotating the positioning frame and fascia,
2)Adjusting positioning pin to the proper base of saw teeth and leave gap of grinding quantity, fasten the fixed screw.
Fourth, adjusting the center axle to the same gap of grinding quantity to the right
Last, when all the parts are fastened, the saw blade supported with hand will be grinded
-
Item Included:
One set of Water cooling saw blade grinder 110V(153027)

Notice：
1.Limited stock, please purchase ASAP if you want it.
2.Before pickup, please call us to make sure.
3.The price will be adjusted when there's large fluctuations in exchange rates and raw material costs.
4.Advertising price does not include the tax.
-
