Item number: 053110

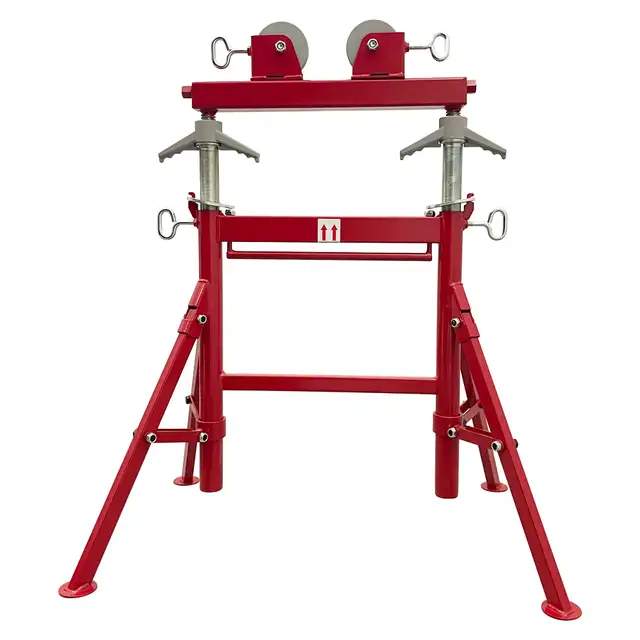

Tube Pipe Roller Support Welding Positioner Height Adjustable 29"-43" Working Range 1/2"-36" 053110

Product Overview
The tube pipe roller support can be clamped in the pipe range of 1/2"-36"(1.2cm-91cm), and the height can be adjusted in the range of 29"-43"(74cm-109cm), which is suitable for heavy pipes. The pipe support structure is stable, fixed firmly, easy to disassemble and fold, widely used in machinery industry, construction industry, factory buildings and other fields.

Product Parameters
Height adjustment range: 29"-43" (74cm-109cm)
Max.Pipe Capacity: 36" (91cm)
Max.Weight Capacity: 2500LBS (1134kg)
Package size: 32.3"*28"*10.2" (82CM*71CM*26CM)
Net weight/Gross weight: 56LBS(25.5KG) / 63LBS(28.7KG)

Product Features & Advantages
1.Adjustable Working Range:
The working range is 1/2"-36"(1.2cm-91cm), and the suitable working range can be selected according to the size of the pipe, which is suitable for most of the pipes.

2.Stable Structure:
Bolt link is stable, triangle support is more stable; The machine can be disassembled and folded, folded and stored when not in use, easy to transport and store.

3.Alloy Lead Screw:
The lead screw is alloy material, the height can be adjusted in the range of 29"-43"(74cm-109cm), can be adjusted to the right height according to the working environment, and the use is more flexible.

4.Limit Clasp:
Both sides of the design of limited position clasp, Fixed at a certain height, support up to 2500LBS(1134kg), can be used for heavy pipe.

5.Stable Support Feet:
The four supported legs have a stable and non-slip design, which ensures the stability of the support during work and is more secure.

Item Included(053110)
Tube Pipe Roller Support *1
