$269

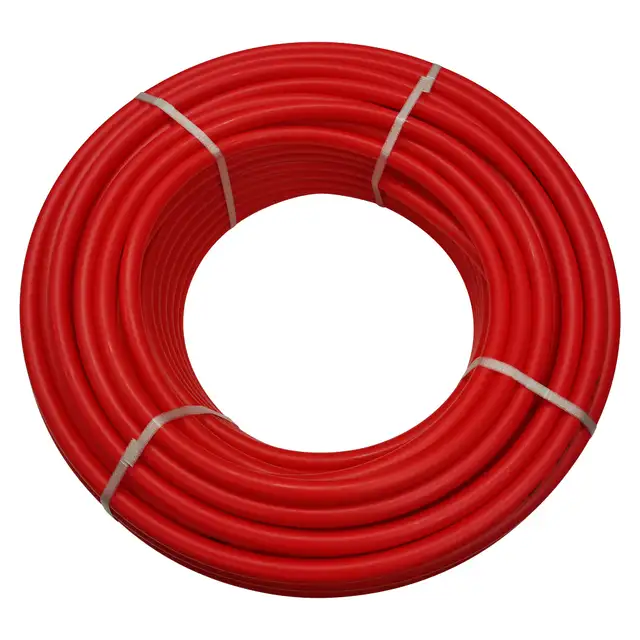

3/4'PEX Red Water Pipe Radiant Floor Heating PEX Tubing 028338
Description
Item number: 028338
-
PEX Water Heater Hose Oxygen Barrier Underfloor Heating Pipe 500ft Length 3/4inch Nominal Diameter 028338
Product Overview
This Oxygen Barrier Radiant PEX-B tubing in Red is 500 feet long and is 3/4 inch. It is is commonly used for plumbing, radiant & hydronic systems, can be used in most radiant heating installation method such as Thick/Thin concrete slabs, under -sub-floor, Hanging Floor, Snow Melting and solar heating applications.It is quick to install, flexible and used on hot/cold potable water lines. EVOH oxygen barrier layer, prevent oxygen from penetrating into tubing system.
Product Parameters
Material: PEX-B(Oxygen Barrier)
Color: Red
Total Length: 500ft
Nominal Diameter: 3/4"
Inside Diameter: 0.681"(17.3mm)
Outside Diameter: 0.875"(22.2mm)
Tube Thickness: 0.097"(2.46mm)
Temperature Range: -45℃ to 110℃(-47℉ to 230℉)
Pressure Rate: 188-217psi at 20℃; 101-108psi at 95℃
Min. Bending Radius: 7"(17.8cm)
Package size: 31.5"*31.5"*9.4"(80cm*80cm*24cm)
Net weight/Gross weight: 50.7LB(23kg)/55.1LB(25kg)
Product Features & Advantages
- 3/4 "x 500ft PEX anti UV Tubing with specifications of 22.2x2.5,keep quick & constant hot/cold water flows. Big pressure capacity: 188-217psi at 20℃; 101-108psi at 95℃. Temperature Range: -45 to 110℃(-47℉ to 230℉).
- It is covered by EVOH, which would block the O2, making the metal components anti-corrosion, to the maximum extent, lengthened the life span of the heating system. The inner pipe is smooth and anti-scalling, endowing the product with high heat diffusion efficiency and perfect energy-saving performance.
- Compatible with different connection system & floor type, such as: Crimp connection system (crimp tool crimp rings crimp fittings); Cinch (clamp) connection system (cinch tool St. steel clamps crimp fittings); Press system (by Viega); Compression PEX Fittings.
- Min.7" bending radius, this radiant floor heating system is easy to bend for different ground situation.
- Multi-use water pipe, applied for plumbing, radiant & hydronic systems, and potable water transmission. Keep quick hot & cold water flows.
Item Included(028338)
500ft Pex Tubing *1
Notice
1.Limited stock, please purchase ASAP if you want it.
2.Before pickup, please call us to make sure.
3.The price will be adjusted when there's large fluctuations in exchange rates and raw material costs.
4.Advertising price does not include the tax.
Warehouse Address:
2220 Midland Ave., Unit 60AP (Administration Park)
Scarborough, ON M1P3E6
Business Hours:
Monday - Friday 9:00am - 4:30pm
Saturday & Sunday Closed
* For PICK UP, appointment by phone needed.
Tel: 647-350-2889 416-727-3877
https://asc365.com/newproductdetail.asp?productid=028338&typeid=1847
-
PEX Water Heater Hose Oxygen Barrier Underfloor Heating Pipe 500ft Length 3/4inch Nominal Diameter 028338
Product Overview
This Oxygen Barrier Radiant PEX-B tubing in Red is 500 feet long and is 3/4 inch. It is is commonly used for plumbing, radiant & hydronic systems, can be used in most radiant heating installation method such as Thick/Thin concrete slabs, under -sub-floor, Hanging Floor, Snow Melting and solar heating applications.It is quick to install, flexible and used on hot/cold potable water lines. EVOH oxygen barrier layer, prevent oxygen from penetrating into tubing system.
Product Parameters
Material: PEX-B(Oxygen Barrier)
Color: Red
Total Length: 500ft
Nominal Diameter: 3/4"
Inside Diameter: 0.681"(17.3mm)
Outside Diameter: 0.875"(22.2mm)
Tube Thickness: 0.097"(2.46mm)
Temperature Range: -45℃ to 110℃(-47℉ to 230℉)
Pressure Rate: 188-217psi at 20℃; 101-108psi at 95℃
Min. Bending Radius: 7"(17.8cm)
Package size: 31.5"*31.5"*9.4"(80cm*80cm*24cm)
Net weight/Gross weight: 50.7LB(23kg)/55.1LB(25kg)
Product Features & Advantages
- 3/4 "x 500ft PEX anti UV Tubing with specifications of 22.2x2.5,keep quick & constant hot/cold water flows. Big pressure capacity: 188-217psi at 20℃; 101-108psi at 95℃. Temperature Range: -45 to 110℃(-47℉ to 230℉).
- It is covered by EVOH, which would block the O2, making the metal components anti-corrosion, to the maximum extent, lengthened the life span of the heating system. The inner pipe is smooth and anti-scalling, endowing the product with high heat diffusion efficiency and perfect energy-saving performance.
- Compatible with different connection system & floor type, such as: Crimp connection system (crimp tool crimp rings crimp fittings); Cinch (clamp) connection system (cinch tool St. steel clamps crimp fittings); Press system (by Viega); Compression PEX Fittings.
- Min.7" bending radius, this radiant floor heating system is easy to bend for different ground situation.
- Multi-use water pipe, applied for plumbing, radiant & hydronic systems, and potable water transmission. Keep quick hot & cold water flows.
Item Included(028338)
500ft Pex Tubing *1
Notice
1.Limited stock, please purchase ASAP if you want it.
2.Before pickup, please call us to make sure.
3.The price will be adjusted when there's large fluctuations in exchange rates and raw material costs.
4.Advertising price does not include the tax.
Warehouse Address:
2220 Midland Ave., Unit 60AP (Administration Park)
Scarborough, ON M1P3E6
Business Hours:
Monday - Friday 9:00am - 4:30pm
Saturday & Sunday Closed
* For PICK UP, appointment by phone needed.
Tel: 647-350-2889 416-727-3877
https://asc365.com/newproductdetail.asp?productid=028338&typeid=1847
When you call, please mention you found this ad on OKZ.ca
