Harris HMD Medium Duty Ironworker 510 Oxy Acetylene Cutting Torch Kit 4400366

NEW IN THE BOX

Harris Ironworker® MED Duty Oxy-Acetylene Outfit


Welding, Cutting and Brazing Outfit - Acetylene Fuel Gas
The Harris HMD medium duty welding and cutting outfit features the new Model 801 regulators and Harris’ most popular combination torch handle and cutting attachment. The Model 801 regulators include one-piece encapsulated seats for longer service life, and a 7 year warranty. The Model 85 torch handle features twin-tube, silver-brazed connections for safety and durability when welding, brazing, cutting or heating with acetylene. It is equipped with FlashGuard ® check valves. The Model 72-3 cutting attachment with brazed triangular stainless steel tubes makes it light in weight while providing exceptional strength and rigidity. The ease-on cutting valve provides smoother, controlled starts. The forged solid brass head provides years of safe, dependable service, even under the most abusive conditions.

Capacity: Capacity: Cuts up to 5” plate with optional tips, welds to ½” plate with optional tips

Regulator Seat: One-piece encapsulated seat design with internal filter and PTFE Teflon® seat
Warranty: 7 years - Regulator; 1 year - All other components
Mixer Type: Equal pressure
Handle equipped with: FlashGuard® Check Valves
Model No. 85801-510
Part No. 4400366

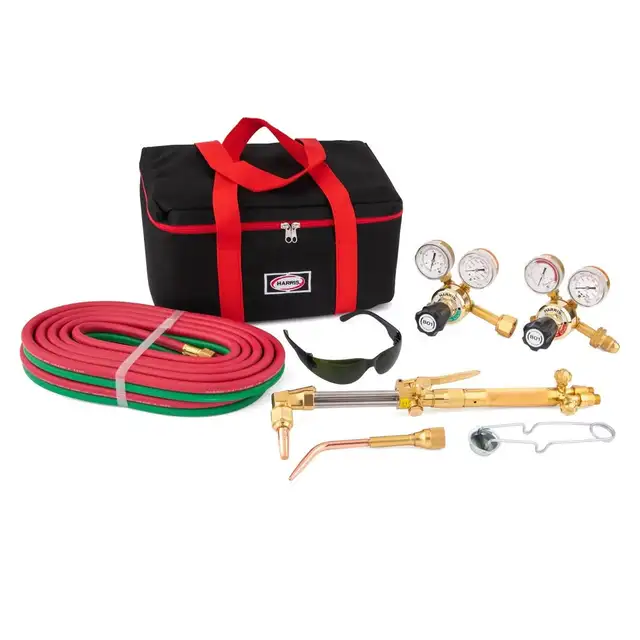

Kit Includes:
85 Torch handle
6290-1AC - Acetylene Cutting Tip
72-3 Cutting Attachment
D-85 Mixer
23A90-5 Acetylene Welding Tip
801-145-540 Oxygen Regulator (CGA 540)
801-15-510 Acetylene Regulator (CGA 510)
Goggles
Striker
20' x 1/4" Twin line Type-R Hose
Tool Bag
