Asset # ACK10-0058
Make: ESCO

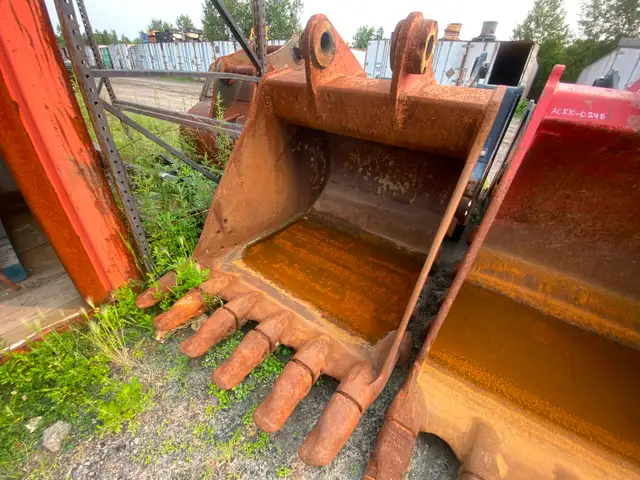

Model: LX330 – LX355 54” Severe Duty Bucket
Ear (Lug) Gap at Stick 15.75 inches (400.05 mm)
Ear (Lug) Gap at Link 15.75 inches (400.05 mm)
Stick Pin Bore Dia. 3.54 inches (90 mm)
Link Pin Bore Dia. 3.54 inches (90 mm)
Pins Centre to Centre 21.25 inches (535 mm)

DESCRIPTION / CONDITION
- Used 54” Severe duty trenching bucket.
- 6 tooth V43SYL 3V2274
- Minor wear between teeth on cutting edge
- Minor bend at ear lug left side (still usable)
- Sides and bottom are in good condition.
- Has holes to add lower side cutters.
- No pins

PRICE: Asking $13,000.00

EXACT FIT PER CARRIER SPECIFICATIONS
Case: 9050, CX330,
Daewoo: DX 300 LC, SOLAR 290LC-V, SOLAR 300LC-V SLR,
Hyundai: R250LC-7,
Link-Belt: 330LX/350LX/355LX, 4300 QUANTUM,
Volvo: EC240B,


WOULD REQUIRE STICK AND LINK SPACERS OR SHIMS
Case: CX240/290/9040,
Caterpillar: 325D w/ CB Linkage, 235, 325D w/ CB Linkage, 335 W/CB LINKAGE,
Kobelco: SK250 / SK350, SK 290LC, SK 330LC, SK 350LC,
Komatsu: PC 300-6, PC 300HD-6, PC 300LC-7,
Link-Belt: LBX240-250-290-300,
