Item number: 230293

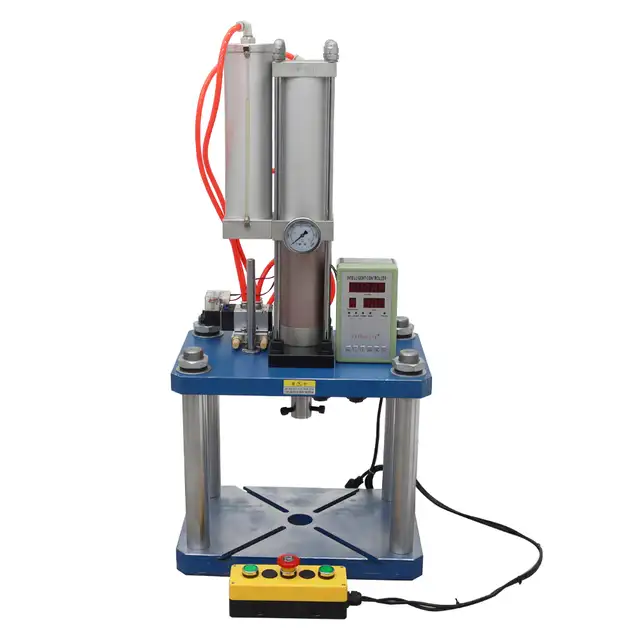

Pneumatic Punch Machine Desktop Punching Press Machine with Booster Cylinder and Display Controller for Sheet Metal,Electrical Appliances,Instruments 11023Lbs/5000kg Pressure 110V 230293
-
Product Features:

The pneumatic press is the high-pressure gas produced by the compressor, which is transported to the
solenoid valve through the gas pipe. The working state of the cylinder is controlled by the movement of the solenoid valve through the switch, and the punching is completed.

1 .Compressed air as power source, high efficiency and easy operation, can reduce labor, can be applied to manual operation integration, automated assembly line .
2 .Simple structure, convenient operation, cheap price, superior performance, no noise produced during the hydraulic system and electric standby, can save electricity consumption reduce production cost, has the very high cost
performance .
3. Easy adjustment of output, need to adjust the air pressure is adjustable up to the required pressure, high yield .Equipped with guide plate, high accuracy, can adapt to high speed precision impact load .
4.According to different products or mould, adjust the speed, and the size of the pressure and stamping time .
5.Optional manual switch control, with emergency stop switch, can also be controlled by a controller.
6.Microcomputer control system, can choose manual, semi- automatic and fully automatic operation.

Specification
Voltage 110V
Pressure 11023lb/5000kg
The die hole diameter is 0.98inch/2.5cm
Working Countertops Size: 18.1*11.8inch/46*30cm
Outer diameter of trachea 0.39inch/1cm
Booster cylinder specification: 3.94inch-0.59inch/100mm-15mm
Working air pressure: 0.5-0.8MPa

Range of application:
Suitable for electronics, electrical appliances, instruments, meters, cameras, watches, jewelry, hardware and garment, shoes and hats.

Machinable materials:

For sheet, strip, coil to shear, punching, blanking, forming, bending, riveting, etc; Suitable for non-ferrous metal, plastic parts processing .

Details
Air source processor, through the pressure gauge at any time to observe the change of air source pressure, effective separation of water, oil and other impurities in the air, air purification, improve the service life of the machine.

Youdaoplaceholder0 and enlarged work surface with 1.9 "diameter blanking hole, 4 T-slots for easy securing of items.

A clamp with an inner diameter of 0.98 ", equipped with a guide plate, is more precise and stable.

Two-handed switch, two-handed operation, safer. Equipped with emergency stop switch, one key stop, more efficient.

Equipped with a controller, easy to switch between manual operation and automatic operation .(single cylinder machine, just set 1, 2, 3 section number. 1 is the pressing time setting; 2 is the second time to increase the setting; 3 is the return time setting)

Note:
1. 46# antiwear hydraulic oil should be added to the hydraulic cylinder. It is recommended to replace the hydraulic oil
after one year of use. (Due to ex-factory debugging, there will be a small amount of hydraulic oil in the machine, please prepare your own hydraulic oil after receiving the goods).

2.Check whether the machine bolts are tightened before working. If they are loose, they must be tightened before working.
Check whether the air pipe is properly connected to prevent air leakage and make the machine unable to work normally.

3. Avoid placing your hand under the punching shaft during work to avoid accidents .

4.Do not wipe the machine with a damp cloth to avoid rusting the machine .

5.When disassembling, installing and adjusting the mold fixture, the machine must be turned off, and standby operation is strictly prohibited to avoid personal injury .

6. the rated pressure of the air compressor is 0.8mpa. The capacity of the air compressor storage tank is about 60L larger the capacity, the longer the service time and the more stable it is. The displacement is optional 200L/min, the larger the displacement, the larger the applicable machine model.

7.Note :The actual output pressure is about 80% of the theoretical pressure.

Item Included: 230293
1*11023Lbs/5000kg Pneumatic Punch Machine
