Item number: 160404
-

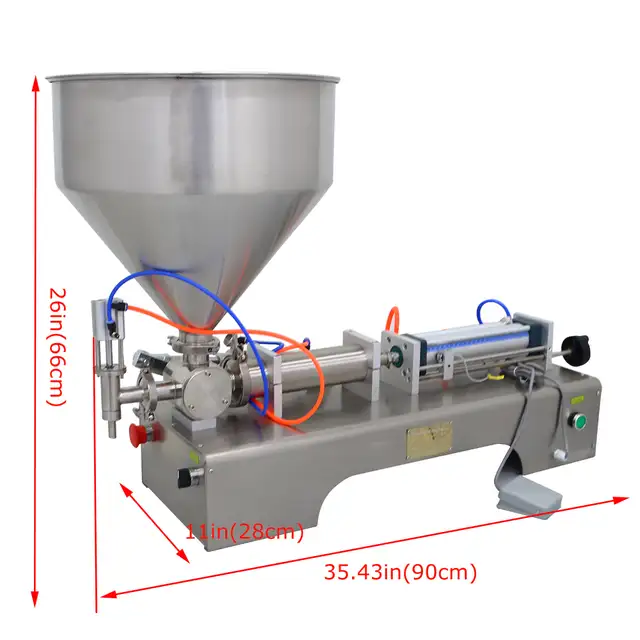

110V Pneumatic Single-Head Paste Liquid Filling Machine, 50-500ml Stainless Steel Semi-Automatic Piston Filling Machine for Liquids Pasty Fluid Oil and Thin Food Products 160404

Parameters:
1.Voltage: 110V/60Hz
2. The surface is stainless steel
3. Pneumatic
4. Filling volume (ml): 50 - 500
5. Filling accuracy (FS): ±0.5%
6. Production capacity (cycle/min): 1-25
7. Applicable tolerance (m³/min): ≥0.1
8. Exterior sizes (mm): 44.7"x15.4"x13.6" (113.5 x39x34.5cm)
9. Net weight (kg): 34.5kg (75.9 lb)
10. Applicable pressure (Mpa): 0.4-0.9

Features:
1.The surface is stainless steel. This product is designed for liquids , pasty fluid , oil , and thin food products.
2.It can help you to fill a mount of quantitative liquids or pasty fluid.
3.The filling volume range is between 50ml - 500ml.
4.And the machine should connect air compressor for working.
5.First time when you use the machine , you should weigh the weight of output by adjusting and make sure the volume you want.

Item included (160404) :
1. 1x Liquid Filling Machine
2. 1x Piezometer
3. 1x Funnel
4. 1x Pipe
5. 1x Spare Screw
6. 1x Specification
7. 3x Screw Driver
8. 1x Foot Plate
9. 5x Spacer Sheet
10. 1x Power Cord
