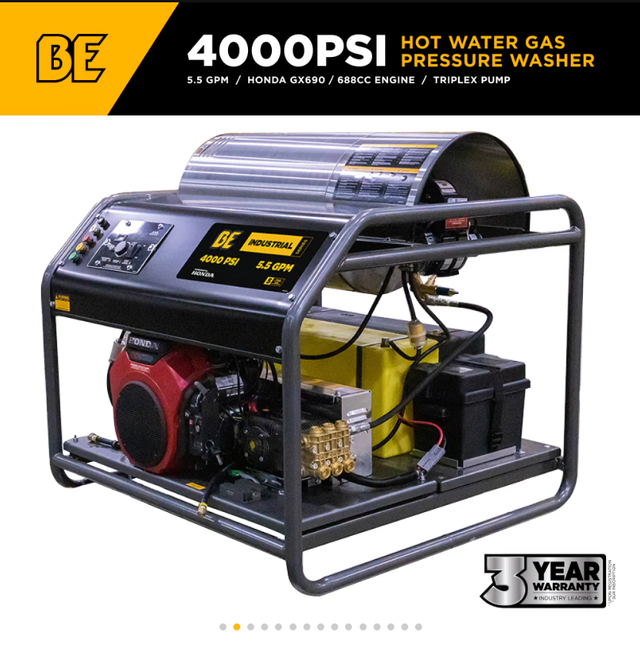

FEATURES:
• POWERFUL HONDA GX690 ENGINE WITH AN ELECTRIC START, DRIVES THE PUMP. A 55AH MARINE BATTERY IS INCLUDED.
• BELT DRIVE SYSTEM PROVIDES LONGEST PUMP LIFE POSSIBLE BY LOWERING ITS HEAT, VIBRATION AND RPM.
• INDUSTRIAL GRADE CP TRIPLEX PUMP FEATURING REINFORCED BODY, FORGED BRASS MANIFOLD, SOLID CERAMIC PLUNGERS, STAINLESS STEEL CHECK VALVES AND THERMAL RELEASE VALVES.
• EXTERNAL UNLOADER PROVIDES SUPERIOR COOLING AND VERSATILITY TO FURTHER ENHANCE PUMP LIFE
• HEATING COIL IS IGNITED BY A 12V BECKETT BURNER THAT IS FUELED BY DIESEL
• THE BURNER CAN BE TURNED OFF AND CONTROLLED WITH THE ADJUSTABLE THERMOSTAT THAT CAN BE SET UP TO 93DEGREE/200DEGREE
• INDUSTRIAL GRADE ACCESSORIES INCLUDED IS A 50-FOOT HIGH-PRESSURE HOSE, SPRAY GUN WAND ASSEMBLY, AND FIVE NOZZLES.
• POWDER COATED STEEL FRAME WITH A 1.5” OD ROLL CAGE THAT IS DESIGNED TO MOUNT ONTO A TRUCK OR A TRAILER
• OIL DRAIN HOSES ON THE ENGINE AND PUMP ALLOW FOR EASIER MAINTENCE WITH LESS MESS.
Product Specifications
Pressure: 4,000 PSI
Flow Rate: 5.5 GPM
Engine: Honda GX690 V-Twin with electric start
Battery: 55AH AGM marine battery included
Pump: Industrial-grade CP triplex with reinforced body, forged brass manifold, solid ceramic plungers, and stainless-steel check valves
Drive Type: Belt drive system for reduced vibration and extended pump life
Unloader: External unloader valve for improved cooling and performance
Burner: 12V Beckett diesel-fired burner
Max Water Temperature: Up to 200°F / 93°C
Thermostat: Adjustable with on/off rocker switch control
Accessories: 50' high-pressure steel braided hose, insulated 47" spray gun wand assembly, five quick-connect spray nozzles (0°, 15°, 25°, 40°, soap)
Frame: Powder-coated 1.5" OD steel roll cage frame designed for truck or trailer mounting
Oil Drain Hoses: Installed on both engine and pump for cleaner and easier maintenance
Shipping Weight: 975 lbs
Dimensions (LxWxH): 48" x 46" x 51"

All equipment comes set up and running FREE of charge!
