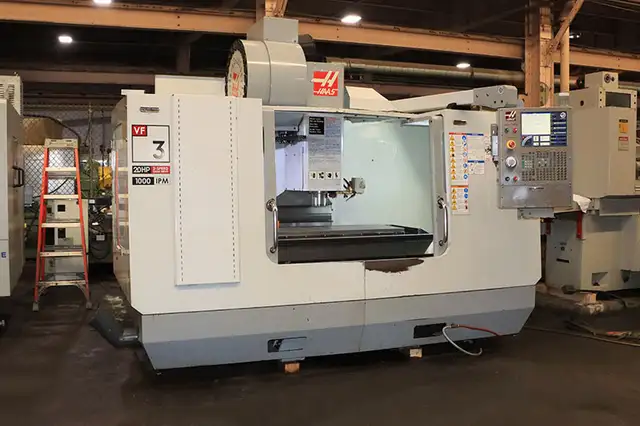

2008 HAAS VF-3 “NEW SPINDLE 2026”

SPECIFICATIONS:

TRAVELS:
X-AXIS TRAVEL ................................ 40"
Y-AXIS TRAVEL ................................ 20"
Z-AXIS TRAVEL ................................. 25"
TABLE SIZE ....................................... 48" X 18"
SPINDLE NOSE TO TABLE ................ 4 - 29"
TABLE DIMENSIONS ......................... 48" x 18"
MAX WEIGHT ON TABLE ................... 3,500 LBS
SPINDLE TAPER SIZE ........................ #40 TAPER (CAT)
SPINDLE SPEED RANGE ................... 0 - 7,500 RPM
TRANSMISSION .................................. 2-SPEED GEARED HEAD
SPINDLE MOTOR ................................ 20 HP VECTOR DRIVE
SPINDLE TAPER ................................. CAT#40
RAPID TRAVERSE .............................. 1,000 IPM
TOOL CHANGER ................................. 24 POSITION
APPROXIMATE MACHINE WEIGHT..... 12,500 LBS
FLOOR SPACE REQUIRED …….......... 110"F-B, 118" L-R
MAXIMUM MACHINE HEIGHT ............. 117.5"

EQUIPPED WITH:

HAAS 4-AXIS CONTROL
RIGID TAPPING
ROTATION & SCALING
QUICK CODE
INTUITIVE PROGRAMMING
ADVANCED TOOL MANAGEMENT MACROS
USB PORT
ENABLE DNC
REMOTE JOG HANDLE (RJH)
4TH AXIS DRIVE & WIRING
2-SPEED GEAR BOX
CHIP AUGER
PROGRAMMABLE COOLANT
SIDE MOUNTED TOOL CHANGER
20 HORSEPOWER SPINDLE DRIVE

NEW HAAS SPINDLE INSTALLED IN 2026
