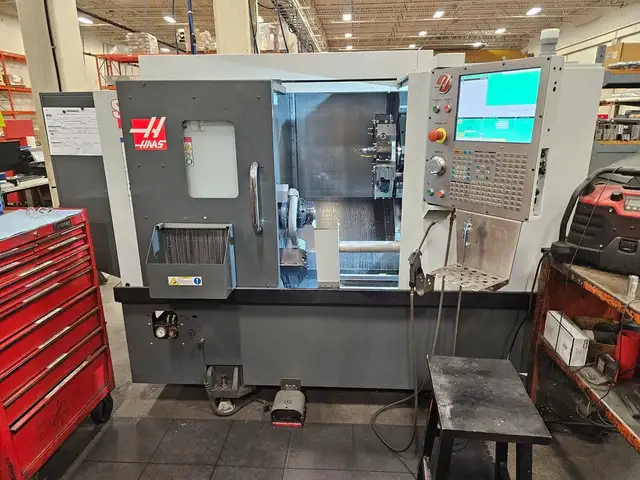

2017 HAAS ST-15Y CNC LATHE

Power On Time: 9634 hrs
Cycle Start Time: 1150 hrs
Feed Cutting Time: 757 hrs
Number of Tools: 12 stations
Coolant Capacity: 30 gal.
Air Requirement: 4 scfm @ 100 psi

Capacity

Chuck Size: 8.3"
Max Part Swing: 16.5"
Max. Cutting Diameter (with BMT45 turret): 11"
Bar Capacity: 2.50"

Travels

X-Axis Travel: 7.88"
Y-Axis Travel: /- 2"
Z-Axis Travel: 16"

Feedrates

Rapids on X: 472 ipm
Rapids on Y: 472 ipm
Rapids on Z: 1200 ipm

Spindle

Spindle Nose: A2-6
Max. Horsepower: 20 hp
Max. Speed: 4000 rpm
Max. Torque: 150 ft-lbf @ 500 rpm
Spindle Bore Diameter: 3.50"
