Item number: 023509
-

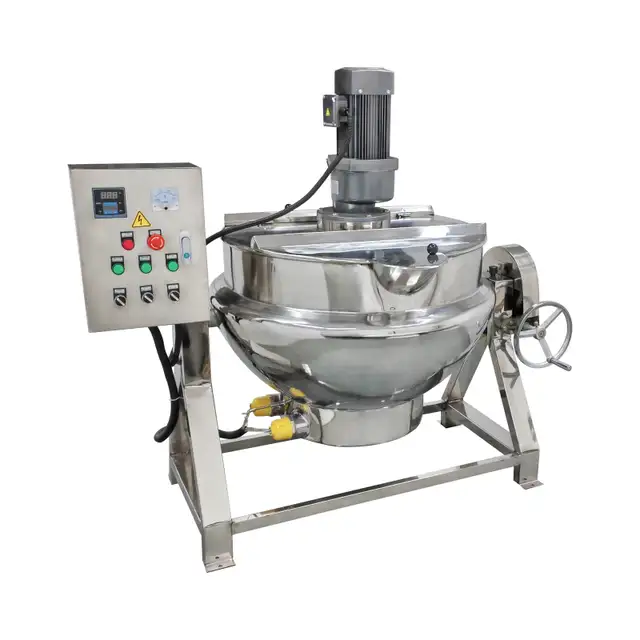

52Gal Commercial Stainless Steel Tilting Stirring Jacketed Kettle for Food Processing Electric Heating 220V 60HZ 3-Phase 1.5 KW 023509

Sandwich pot also known as steam pot, cooking pot, sandwich steam pot. It usually consists of a pot body andlegs. The pot body is a double-layer structure composed of the inner and outer spherical pot bodies, and the middle layer is heated by steam. There are fixed, tilting, mixing and other styles. Sandwich pot has the characteristics of large heating area, high thermal efficiency, uniform heating, short boiling time of liquid, easy to control the heating temperature, beautiful appearance, easy installation, convenient operation, safe and reliable. Sandwich pot is widely used in the processing of all kinds of food, can also be used in large restaurants or dining halls to boil soup, cooking vegetables, stew meat, porridge, etc., food processing to improve the quality, shorten the time, improve the working conditions of good equipment.

Parameters
Voltage: 220V
Electric heating power: 16 KW
Motor Power: 1.5KW
Volume: 200 L 52.8gal
Pot size: φ800×550mm
Heat transfer oil quantity: 45L
Youdaoplaceholder0 rate: 36 r/min
Maximum working pressure: atmospheric Pressure
Maximum operating temperature: <180 degrees in
the pot &sandwich <250 degrees

Feature
Electric control panel
Equipped with digital display temperature controller,controllable temperature control, two heating controllers, which can be used for single or simultaneous heating.

Four scraper plates made of teflon material
The agitator is made of polytetrafluoroethylene material scraper and equipped with four. During the rolling and stirring process of the material, the agitator fully contacts the pot body in all directions, ensuring no mixing dead corners


Rotary handle
The rotary handle controls the inclination, and the pot body can be tilted by 90 degrees. The lever principle is adopted, and the operation is convenient and simple

Heating mode
Electric heating mode, large heating area,uniform heating, high thermal efficiency,and easy controlof heating temperature

Usage method
1.Before starting to use it, add the heat transfer oil first and check whether the oil level of the heat transfer oil reaches the specified level (half of the pot body).

2. Clean the pot and put the material into the pot.

3. Before starting the machine, please open the exhaust valve.

4. Must be add the heat conducting oil first, and then turn on the heating switch. When heating, the exhaust valve must be opened, and then turn on the stirring switch. There is no order of heating and stirring, usually first heating and then stirring. After the material is finished, turn the hand wheel to tilt the pot body and pour out the material.

Note:
1.Due to different production batches, the color or style of the motor and accessories may vary slightly. We will ship them randomly.

2.When using the machine, preventive measures must be taken. During machine operation, hands, clothing, and tools should be kept away from moving parts to avoid touching them with hands and prevent harm to the human body.


Item Included: 023509
1*Jacketed Kettel 200L 220V 60Hz
