INDUSTRIAL HEAVY DUTY LONG ARM WALKING FOOT SEWING MACHINE
Full Automatic Feature Set - Basically Brand New Condition
Compound triple feed, programmable C-300 controller, 70mm bed clearance
Asking $7,495 - open to reasonable offers

Text message only: 416-880-8024 (no phone calls - text gets fastest response)

LOCATION

Sutton West / Georgina, Ontario (postal code L0E1R0)
Approximately 1 hour north of Toronto, just off Highway 404
FREE local pickup - inspection and demo welcome
Worldwide freight shipping available through licensed broker

OVERVIEW

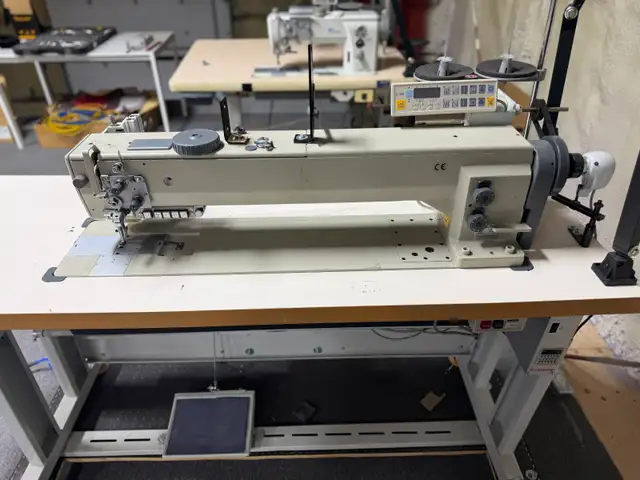

Premium-grade industrial heavy-duty long-arm walking foot sewing machine in basically brand-new condition. Acquired with other equipment and never put into production use.

Full automatic feature set: automatic thread trim, automatic back tack, automatic presser foot lift, programmable seam length, soft start, two-stitch-length switching, and a C-300 programmable controller. Comparable capability to a Juki LU-2810-7 automated walking foot, in basically brand-new condition.

A serious professional machine for marine canvas, auto upholstery, leather goods, saddlery, sails, tents, RV covers, and heavy upholstery. The long-arm workspace gives you room that standard flatbed machines cannot touch.

TECHNICAL SPECIFICATIONS

- Type: Single needle flatbed lockstitch
- Configuration: Long arm walking foot (compound triple feed)
- Max speed: 2,000 SPM
- Stitch length: 1-5mm with integrated second stitch length
- Presser foot lift: 15mm automatic via treadle
- Bed clearance: 70mm for thick materials
- Needle system: DBx17 (#11-180)
- Motor: Direct-drive built-in servo
- Voltage: 230V single phase
- Control: C-300 programmable operator panel
- Lubrication: Automatic oil pump
- Hook: Large capacity vertical

KEY FEATURES

- Compound triple feed (needle walking foot bottom feed) for slip-free heavy material sewing
- Automatic thread trimmer with short thread tail
- Programmable automatic back tack (start and end of seam)
- Automatic presser foot lift via treadle (no knee lift required)
- Two switchable stitch lengths for topstitching and upholstery
- Slow soft start for controlled stitch placement
- Knuckle operated reverse device
- Back puller for steady heavy material flow
- 70mm bed clearance for thick stacked materials
- Direct-drive servo motor - quiet, efficient, no belt slip
- Two integrated LED machine lights (9.5W IP65, daylight color)
- Pneumatic system with Parker regulator and filter
- 15mm presser foot lift
- Large capacity vertical hook for long production runs

WHAT IS INCLUDED

- Long-arm walking foot sewing machine head
- Premium industrial table with hardwood top
- Heavy duty stand on locking castors
- Direct-drive built-in servo motor
- C-300 programmable operator control panel
- iSewing programmable control box
- Pneumatic regulator, filter, pressure gauge, and air lines
- Two LED machine lights (9.5W IP65 each)
- Knee lever and foot treadle pedal
- Thread stand with two spool holders
- Parts drawer with needles, bobbins, oil bottle, toolkit
- All cabling, pneumatic lines, electrical - connected and tested

CONDITION

- BASICALLY BRAND NEW - acquired with other equipment and never put into production use
- No rust, no impact damage, no missing parts, no wear marks on the head
- All automatic functions tested and confirmed working
- C-300 controller fully operational with all programmable parameters accessible
- Pneumatic system holds pressure
- Smooth motor operation across full speed range
- Sews cleanly through multiple layers of leather, vinyl, canvas, and heavy fabric
- Machine head paint bright, all chrome and stainless clean, table top excellent
- All original components - no aftermarket modifications

IDEAL FOR

- Marine canvas, boat upholstery, sail makers, dodgers and biminis
- Automotive upholstery and interior trim
- Saddlery, harness, tack, equestrian leather
- Heavy furniture and commercial upholstery
- Leather goods (bags, belts, holsters, sheaths)
- Tent and awning fabrication
- Pros upgrading from a Juki LU-2810 or Consew 206RB

REQUIREMENTS

- 230V single-phase outlet, 15A circuit
- Compressed air supply (regulator included)
- Approximately 5ft x 2.5ft floor footprint

PRICE AND PAYMENT

Asking $7,495, open to reasonable offers from serious buyers. Acquired with other equipment during a business asset purchase. Not part of our current operations. Lowball offers will not receive a response.

Payment methods accepted:
- Local: cash or e-transfer on pickup
- Shipped: e-transfer or wire transfer in advance, before freight is booked

Full payment required before pickup or shipping. No holds without deposit.

SHIPPING

- FREE local pickup in Sutton West / Georgina, Ontario
- Complete setup weighs approximately 350 lbs / 160 kg
- Bring a pickup truck or cargo van and a helper; loading assistance provided on this end
- Worldwide freight shipping available - buyer pays actual freight cost through licensed broker (Freightera, ICC Logistics, etc.)
- Message with full delivery address for a firm freight quote within 24 hours

INSPECTION

Happy to demo it running before you commit. Bring leather, canvas, or vinyl scraps to test on your material. Local inspection welcome by appointment. Additional photos and video available on request.

CONTACT

Text message only: 416-880-8024 (no phone calls please - text gets fastest response)
Reply through OKz.ca messaging also accepted.

When you message, please include your shop name and intended use case. Serious inquiries only. No tire-kickers. No lowball offers.

ALSO LISTED ON

This item is also listed on eBay.ca and Facebook Marketplace. First serious buyer with deposit gets it. Prices held consistent across all platforms.

OTHER LISTINGS

I source and resell premium-condition industrial and automotive equipment. See my other OKz.ca ads for additional industrial sewing machines, including Dürkopp Adler 867 walking foot machines, a Juki DNU-1541, and a Pfaff 1245.
