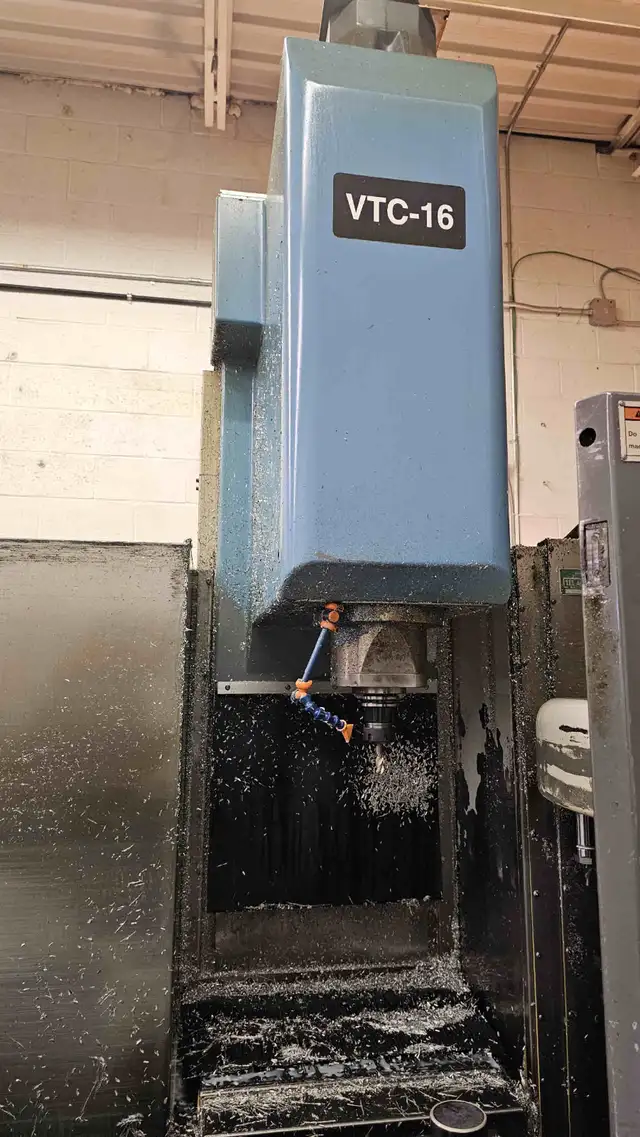

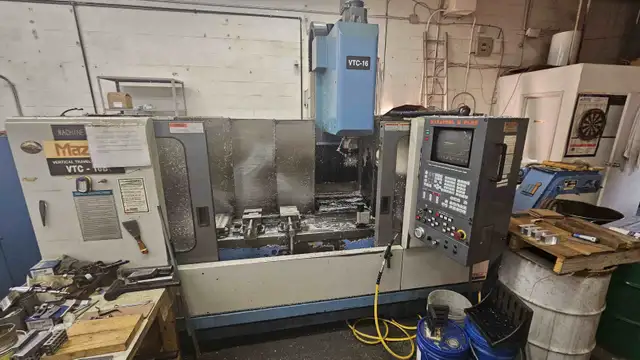

Here Is A Mazak VTC-16B Vertical Machining Center We Have In Stock,
If You Require Anymore Photo`s & Info Please Call Or E-mail Us.

Specifications:

Model - VTC-16B
Year - 08/1997

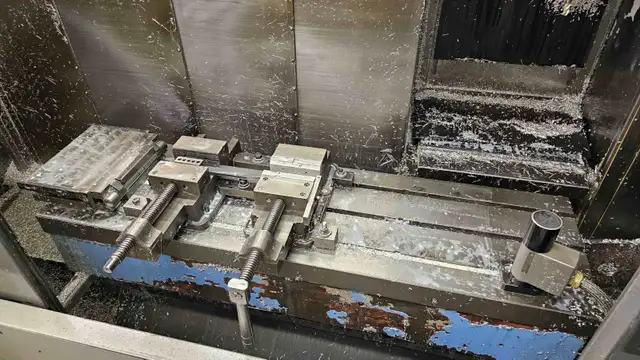

Table Size - 16.14” x 57.48”
X Axis Travel - 44.09”
Y Axis Travel - 16.14”
Z Axis Travel - 20.78”
Distance From Spindle To Table - 4.3” to 24.4”
Spindle Taper - CAT-40
ATC (Umbrella Type) - 24
Max Spindle Speed - 7000 RPM
Max Load On Table - 1,120 LBS
Rapid Traverse Rate (X&Y) - 787 IPM
Rapid Traverse Rate (Z) - 590 IPM
Control - Mazak
Spindle Motor - 15 HP

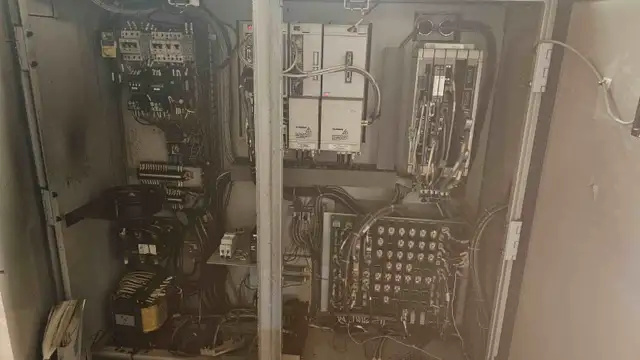

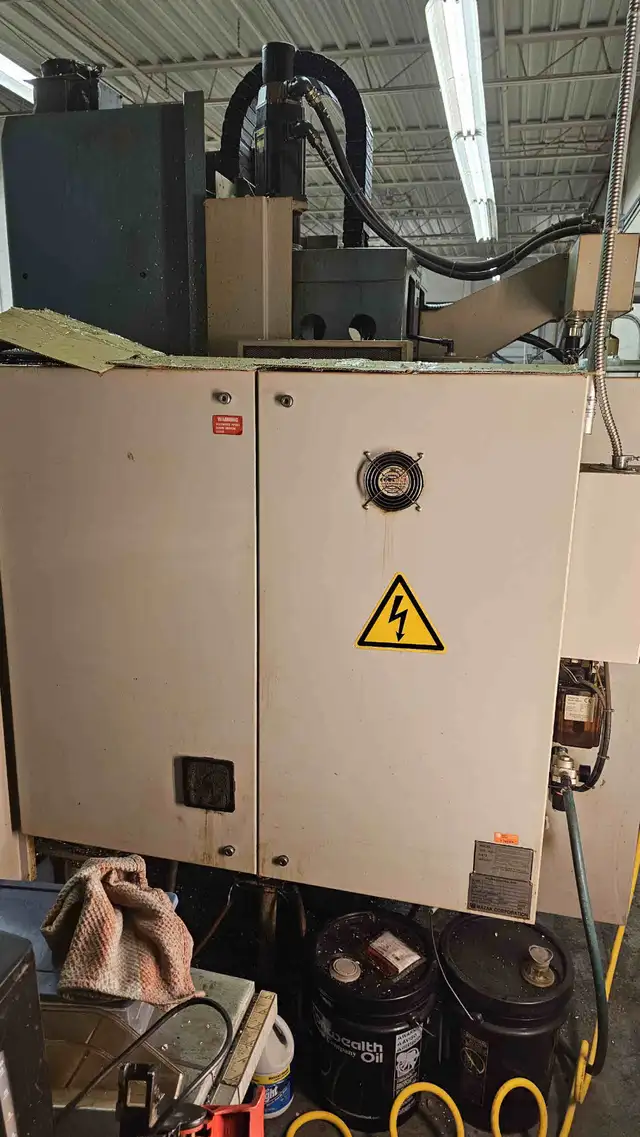

Electrics - 230V/3PH/60HZ
Made In - Japan
Approximate Weight - 12,500 LBS
Approximate Overall Dimension - 117”L x 115”W x 103”H

Equipped With:

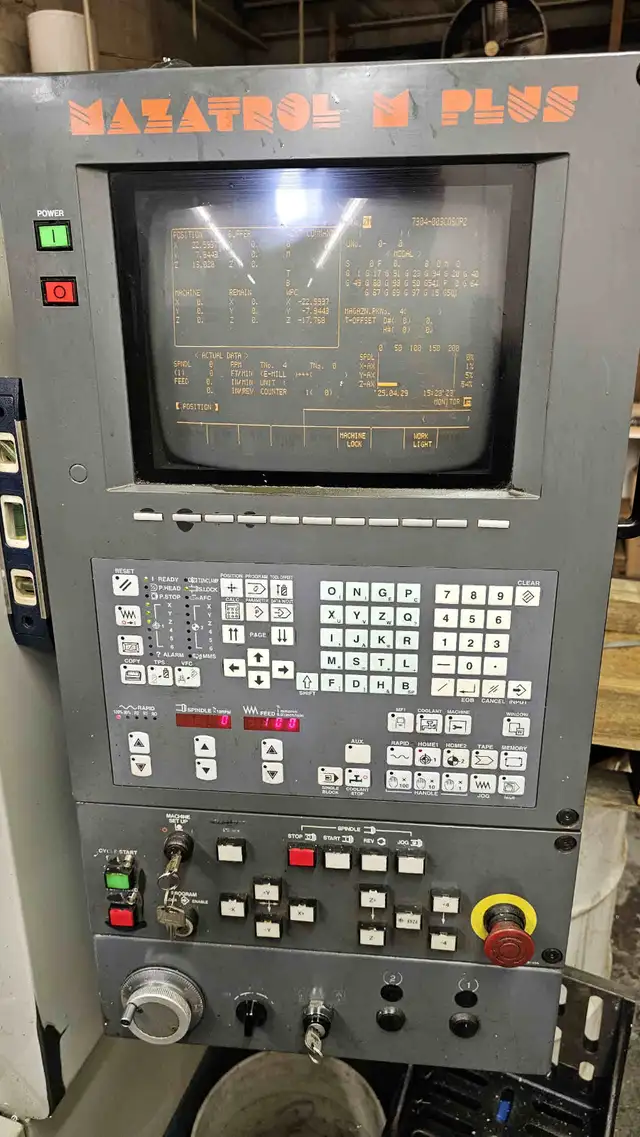

Mazak Mazatrol M32B CNC Control
24 ATC (Umbrella Type)

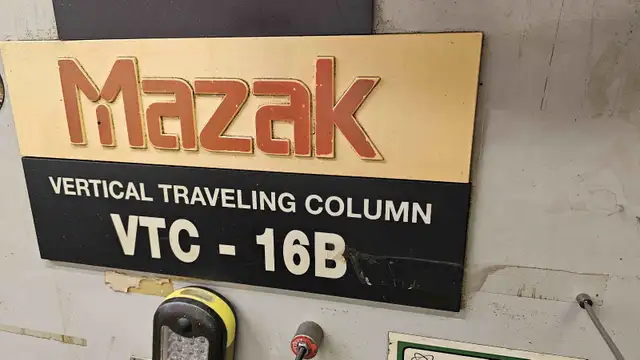

Travelling Column Type
Table Stationary

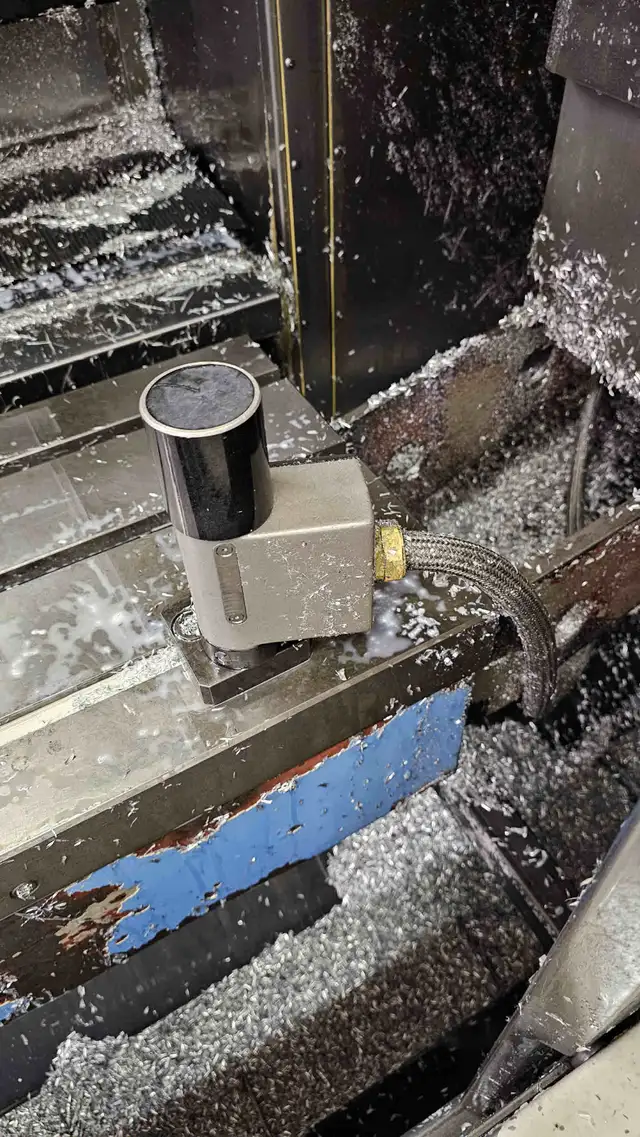

Tool Presetter

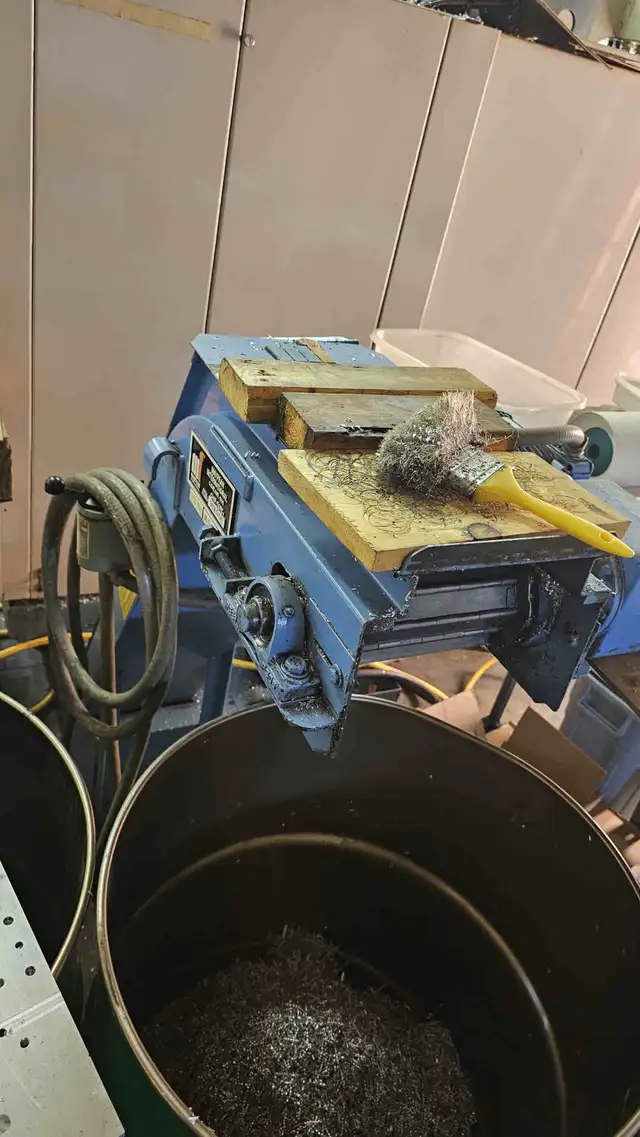

Chip Conveyor
Coolant System
