Item number: 230226

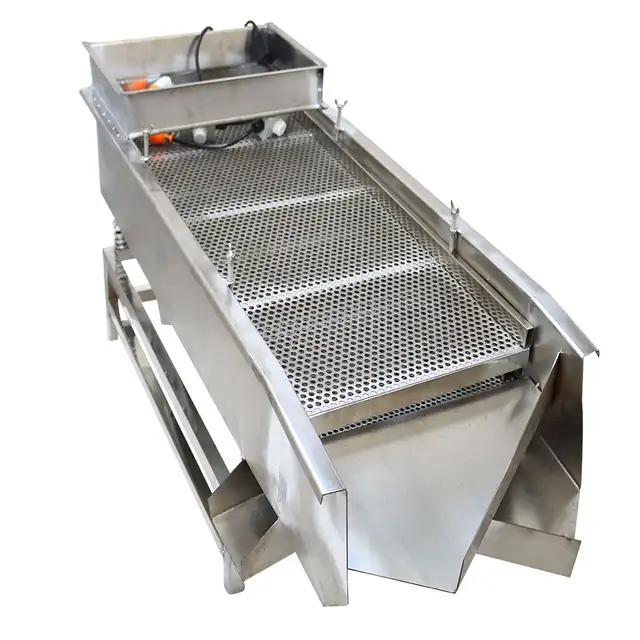

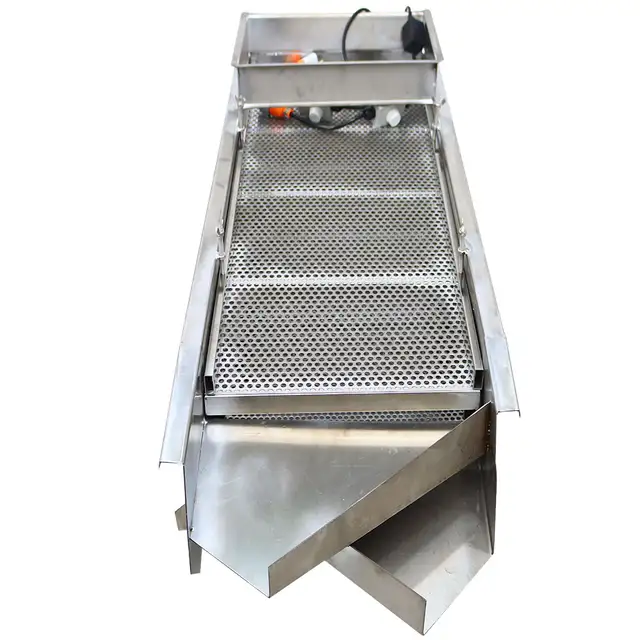

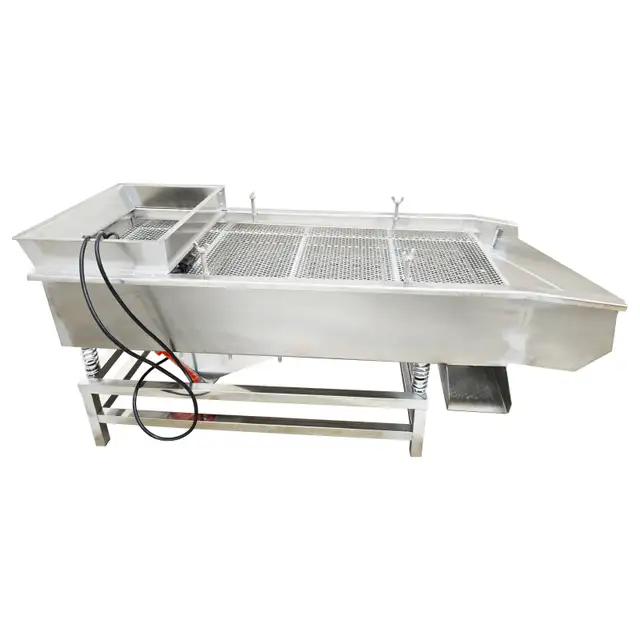

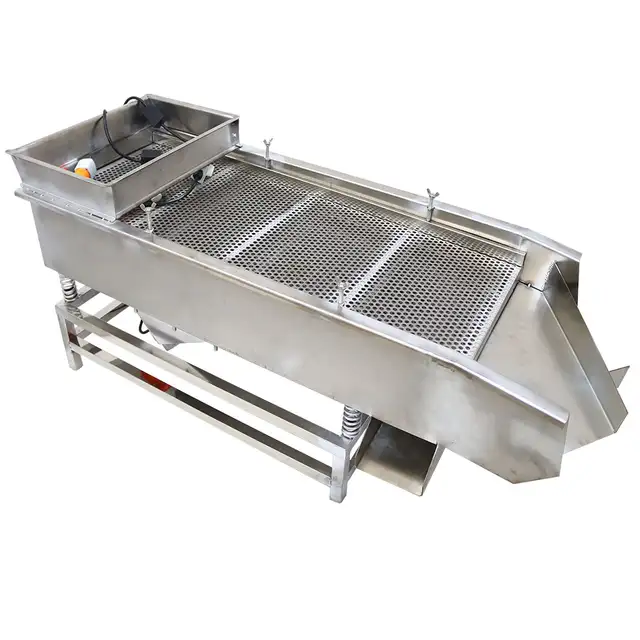

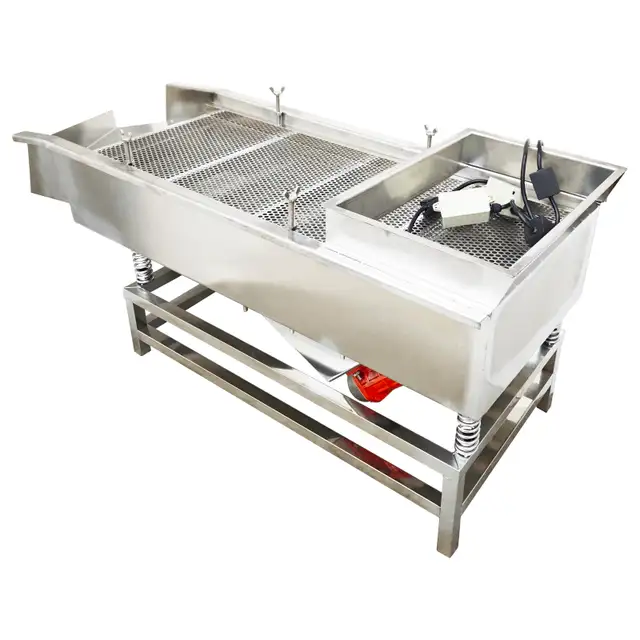

Linear Vibrating Screen Stainless Steel Double Layer Shaker Screen Dual Motor with 8mm 6mm Mesh 230226
-
Introduction:
The new high-efficiency screening equipment has a screen moving trajectory that is approximately straight. This sieve machine has simple structure, large screening capacity, low energy consumption and easy maintenance. It is widely used in mining, coal, electric power, metallurgy, building materials, fire resistance and other industries for large block materials and medium and small granular materials.

Parameters:
Voltage: 110V
Power: 80W*2

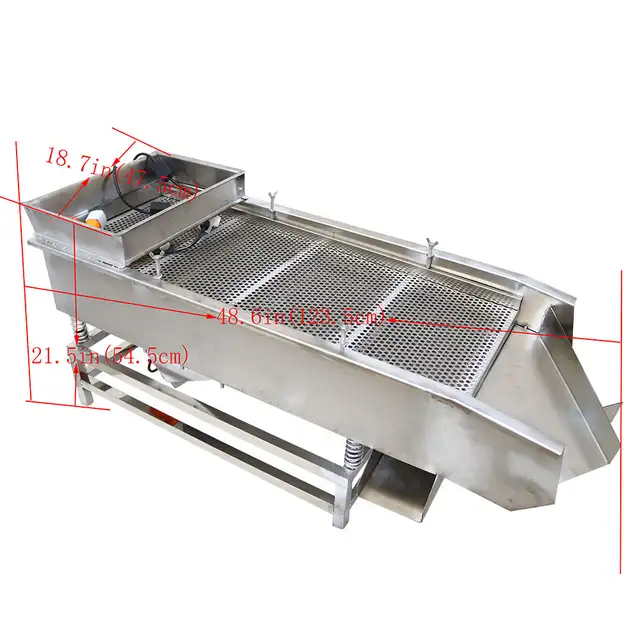

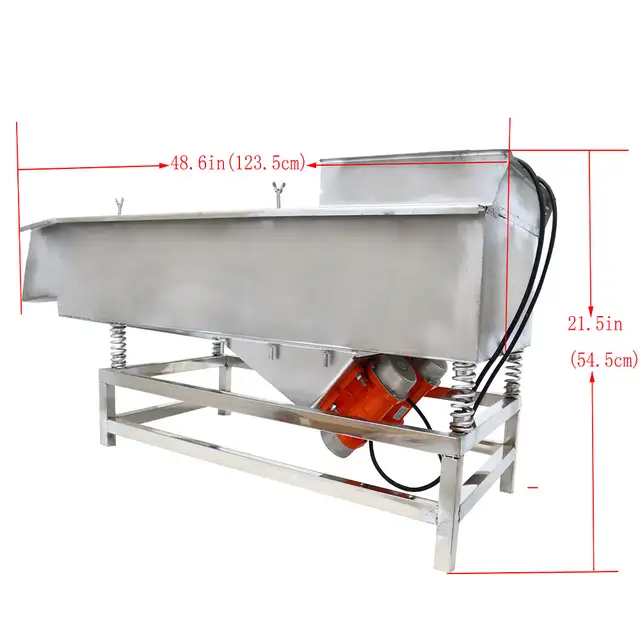

Net size: 48.6 "*18.7" *21.5"
Net Weight:37KG

Feature:
1. Small volume and large screening capacity.
2. Light weight, easy to install.
3. Less energy consumption.
4. Simple structure and beautiful appearance.
5. The screen is assembled from small pieces and the replacement is very simple.

Working principle:

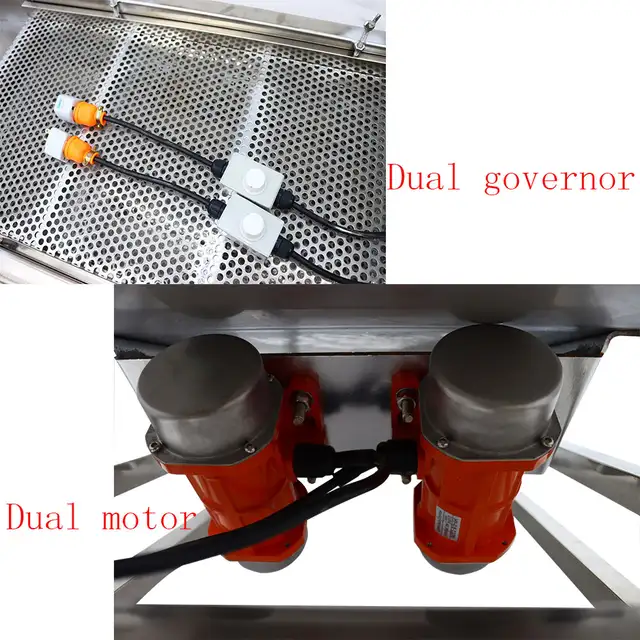

The screen box relies on the vibrating motor to rotate in the opposite direction
simultaneously so that the whole screen machine supported on the damper
vibrates in a straight line. After the material falls into the screen box from the
feeding end, it quickly moves, loosens and sifts through the screen to
complete the screening operation. This machine is composed of sieve box,
vibration motor, vibration damping system and chassis. The sieve box is
composed of a sieve frame, a sieve plate, a lining plate. This sieve machine
adopts high-performance, high-life vibration motor. Adjusting the vibration
force of the vibration motor, the vibration amplitude of the sieve machine and
can be changed. The vibration damping system consists of a rubber spring
and a clamp, a support base and the like. The chassis consists of a silo and a
chassis.


Operation:
1. Place it stably on a flat and hard ground.
2 Check whether the screws of each part are loose and tighten them before starting the machine.
2. Plug the plug into the power socket and slowly turn the knob to the appropriate speed.
Note:Two kinds of plugs are shipped randomly



Item Included: 230226
1*Linear Vibrating Screen Stainless Steel Double Layer Shaker Screen Dual Motor with 8mm 6mm Mesh
