Item number: 056914

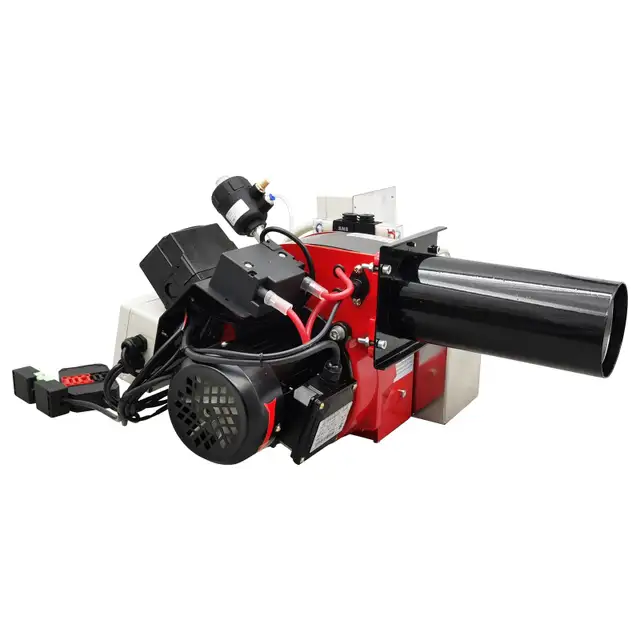

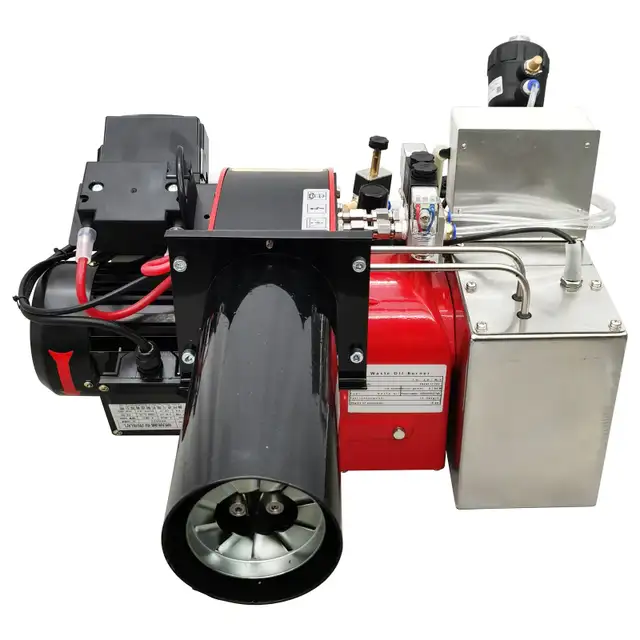

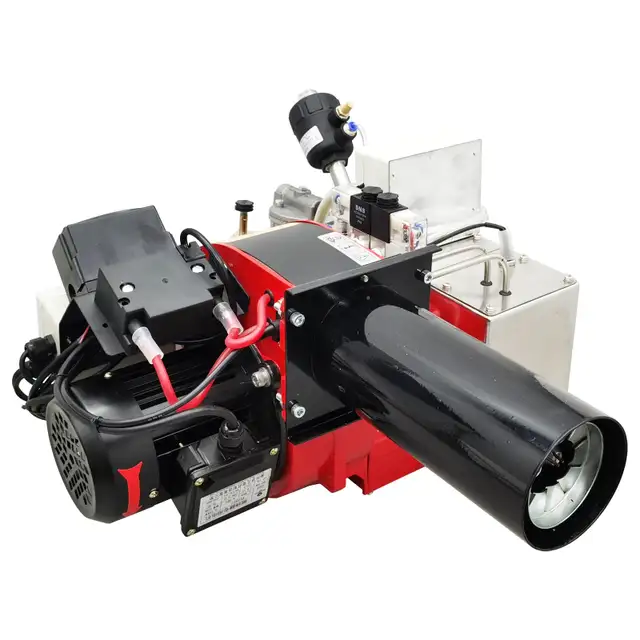

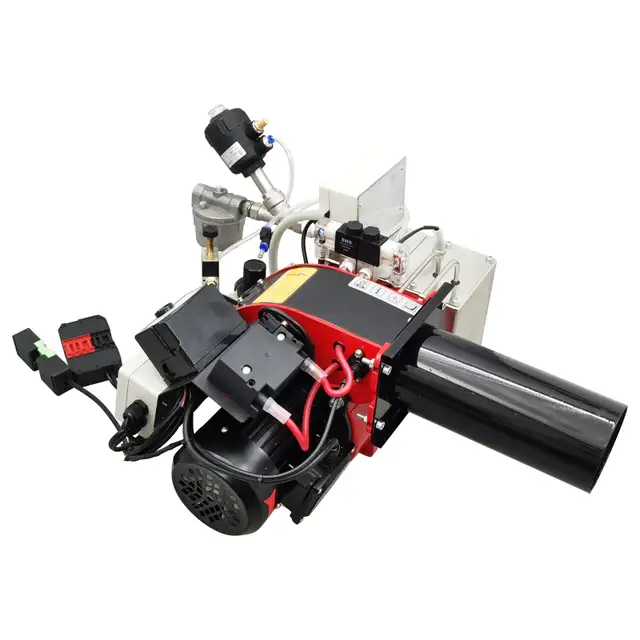

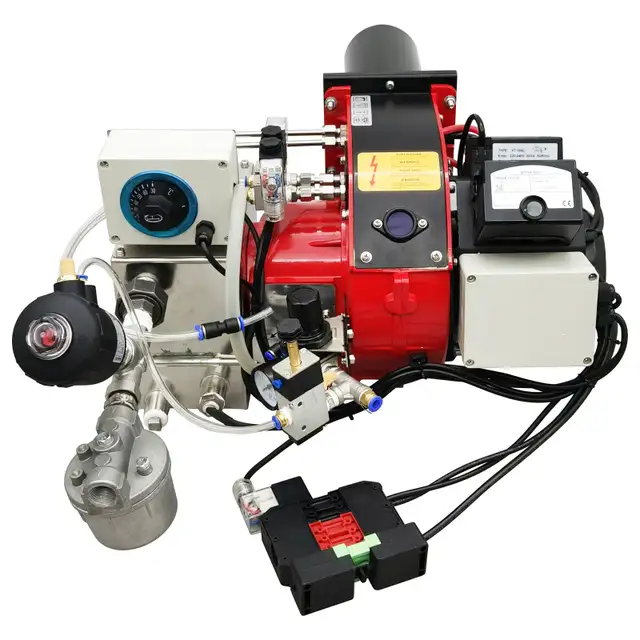

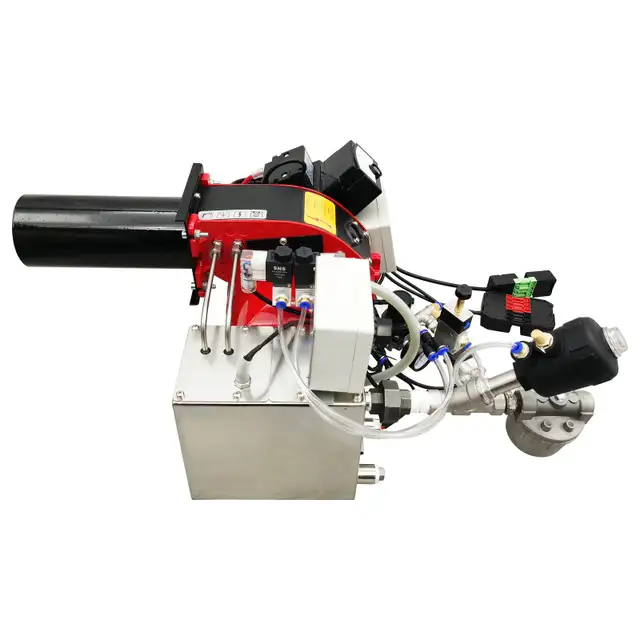

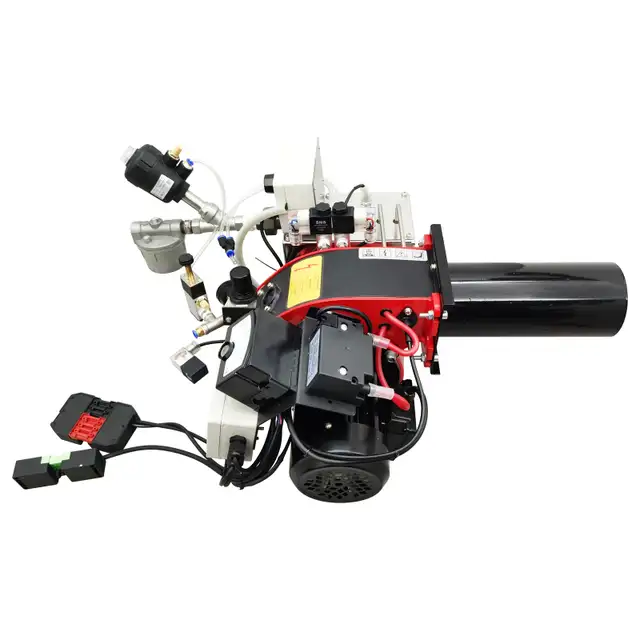

Waste Oil Heater Air Atomizing Heavy Oil Burner Thermal Energy Burning Equipment 056914

-

Product Overview

The waste oil burner is suitable for oil-fired boilers, industrial boilers, hot water boilers, steam boilers, food machinery, painting equipment, textile machinery, ceramic equipment and other thermal energy burning equipment, with a very wide range of application. The product is simple to operate, automatic ignition temperature control; Safe and reliable operation, low failure rate, uniform heating; High combustion efficiency, lower energy consumption, more atomization!



Product Parameters

Voltage: AC220V Single-phase

Output power: 116-232KW

Control mode: Double section fire

Fuel oil: Waste oil

Fuel consumption: 9.5-23.5kg/h

Air compressor flow: ≥0.25m³/min

Designed fuel calorific value: 10500Kcal/Nm³

Suitable ambient temperature: -15~60℃

Preheater power: 0.3kw

Motor power: 0.18kw

Security level: IP44

Package size: 22.4"*20"*14.5" (57CM*51CM*37CM)

Net weight/Gross weight: 33LB(15KG) / 36.5LB(16.5KG)



Product Features & Advantages

1.Temperature Adjustment:

The temperature can be adjusted, and the appropriate temperature can be selected according to different materials, reducing energy consumption, adjusting at any time, and using more flexible.



2.Fire Cylinder:

Selected high-quality filter, long service life; The oil nozzle is not easy to plug, the atomization is more full and uniform, the effect is good, and the combustion rate can be improved.



3.Motor:

100% Pure copper core motor, strong power, high efficiency, fast burning speed, low noise, long service life.



4.Controller:

The burner can operate fully automatically through its built-in controller, which is responsible for automatically igniting and starting the burner, as well as safely shutting it down in the event of a fault alarm. Additionally, it can be connected to the control system of the heated equipment, enabling remote control and one-touch start/stop functionality.





- High combustion efficiency, fuel saving, reduce energy consumption, small environmental pollution.

- Burning methanol, light oil, oil with large viscosity, etc., does not have high requirements for oil products.



- High heating temperature; Simple operation, automatic ignition, temperature control, no manual.



- Safe and reliable operation, low failure rate; Heating evenly to prevent local overheating; The furnace heating and material heating speed is fast, and the pressure in the furnace is uniform.



- The use of the nozzle is not easy to plug, atomization more fully!



- Applicable to oil boiler, industrial boiler, hot water furnace, steam boiler; Food machinery (such as hot air rotary furnace), painting equipment (such as paint baking equipment, paint removal furnace), textile machinery (such as singeing machine, ironing equipment); Road construction machinery; Industrial furnaces, ceramic equipment and other thermal energy burning equipment, the scope of application is very wide.



Item Included: 056914

Waste oil burner *1
