$555

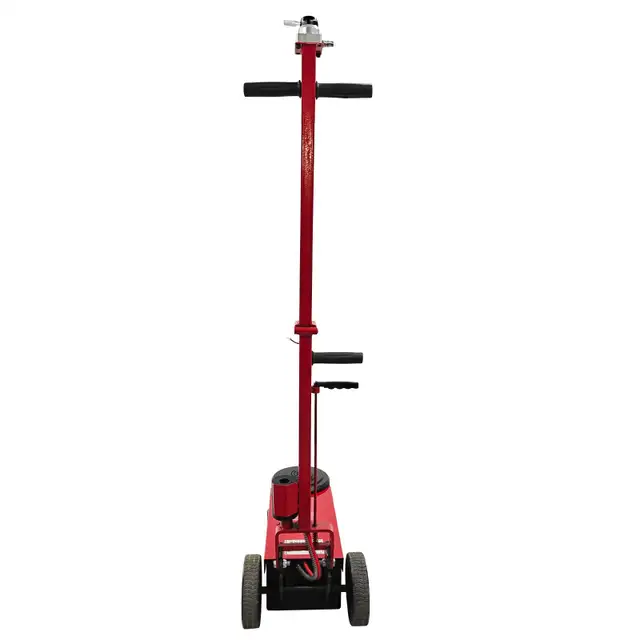

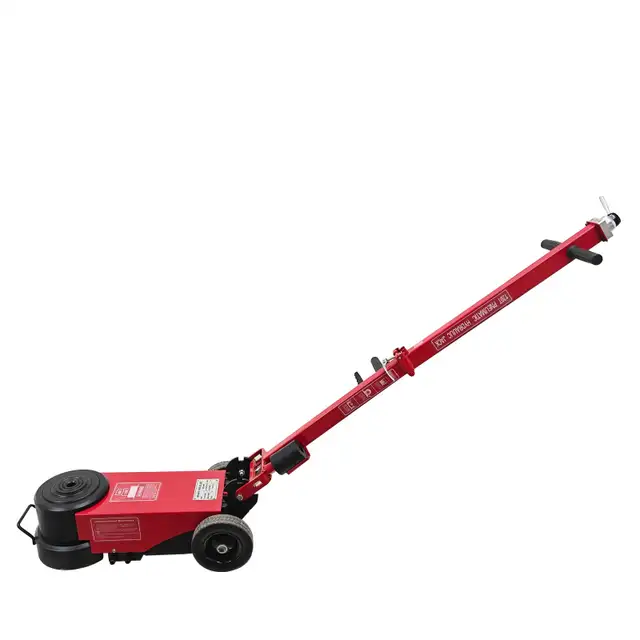

120T Pneumatic Hydraulic Floor Jack Double Foldable rod 032651
Description
Item number: 032651
Product Overview
The pneumatic jack is a jacking device using the compressed air as a power source, and is mainly used for mobile jacking scenarios such as automobile maintenance and transportation repair. It lifts heavy objects according to the pneumatic principle and has the advantages of easy operation, quick jacking, high safety, etc.
Product Parameters
Load capacity 120T (Load capacity of second layer: 60T)
Note: The load capacity of the first layer is the standard load capacity, and the load capacity of the second layer is reduced by half.
Minimum height 210mm (8.27in)
Lift height 400mm (15.75in)
Rated pressure 0.8-1.2Mpa
Top body width 214mm (8.43in)

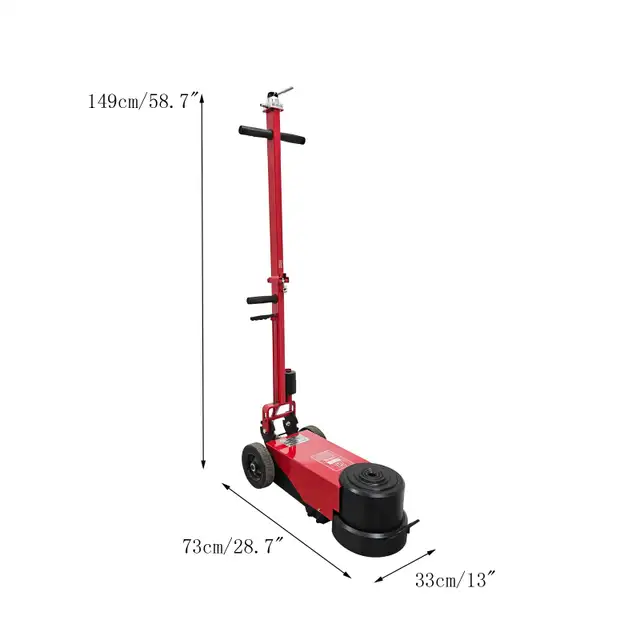

Machine size 73*33*149cm (28.7*13*58.7 inches)

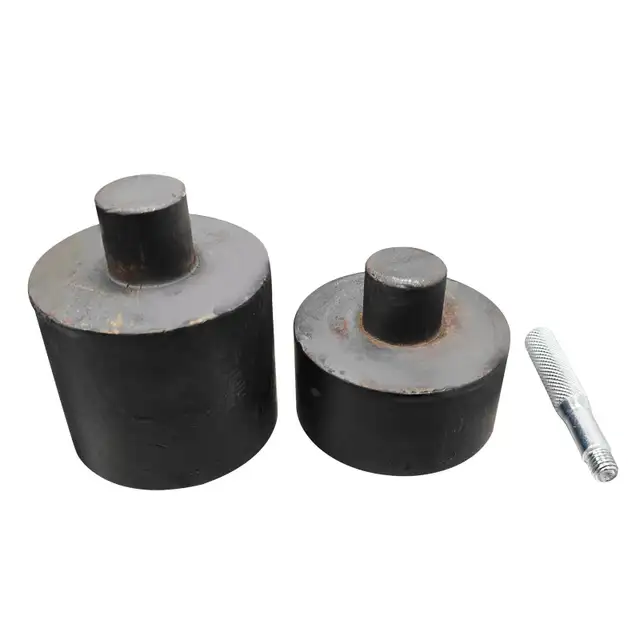

Gift Pad iron*2, Height: 5.5cm (2.17in) *1, 3.3cm (1.3in) *1
Note: Customers should prepare the air compressor by themselves.
Precaution
1. Before jacking, confirm the weight of the object. Overloading is strictly prohibited.
2. Identify the center of gravity of the object, select a proper jacking point for the jack, and place it stably. Also consider the ground hardness. If necessary, use a sturdy wooden board or similar items to assist in jacking to prevent tilting or falling during lifting. Avoid severe vibration.
3. The used air pressure should be within the rated air pressure range to avoid the phenomenon that the equipment is overloaded to affect the service life.
4. During use, the high-pressure air hose must not be forcibly bent, dragged on the ground, rubbed against surfaces, or run over by heavy objects--all of which will shorten the service life.
5. If multiple jacks are used together, the starting speed should be kept synchronized to ensure balanced load distribution on each jack and prevent falling hazards.
6. The jack uses the 46# anti-wear hydraulic oil, and the sufficient oil quantity must be kept. It is recommended to replace the oil after 3 months of initial use, and every 6 months thereafter.
7. Add the lubricating oil to the cylinder section regularly. The oil can be added through the air inlet connector.
8. After lifting the heavy object, place supports underneath the heavy object for safe operation.
9. To lower the jack, pull the handle at the air distribution valve counterclockwise to achieve automatic descent of the jack.
10. Keep the product clean. It is a normal phenomenon that little oil seepage exists during initial use due to assembly, disassembly or transportation.
Product Features

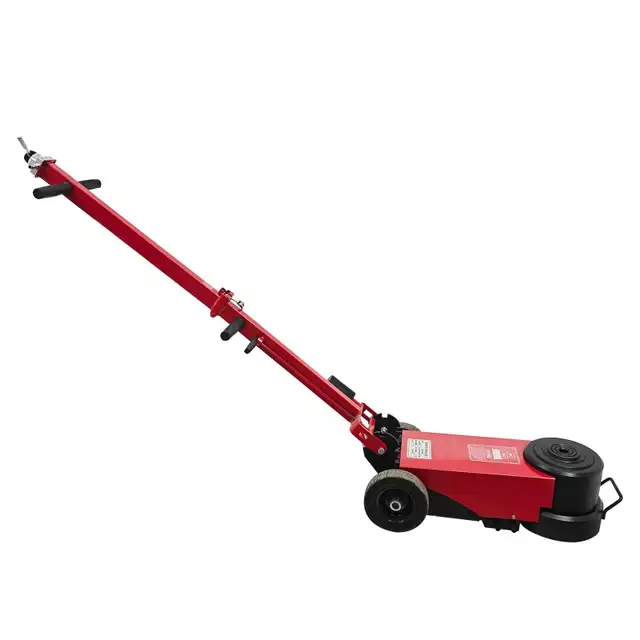

The double-fold design is adopted, the rod can be folded back, the more space is saved, and it is easy to carry and transport. The jack is ideal for fleet vehicles, mobile tire repair and similar scenarios.
The double jacking layers can be controlled to ascend and descend. Lifting and lowering are quick, safe and stable, the working efficiency is greatly improved, and the time cost is well saved.

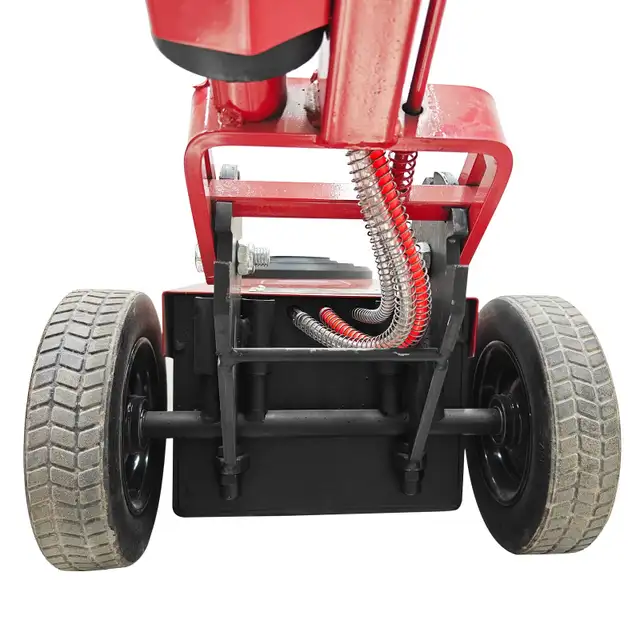

The reinforced enlarged wheels are quiet and resistant to wear and reduces the shock. The stress area is greatly increased, the load capacity is effectively increased, and the safety and stability are ensured.
Two pieces of heightening pad iron are provided for effectively adjusting the jacking height, meeting the requirements of different working conditions and improving the environmental adaptability.
Operation Method
1. Unfold the device, place it on a clean, flat and hard surface, and then connect it to the air compressor.
2. Position the jack under the heavy object to be lifted, and ensure the jack will not fall down or deviate during jacking.
3. Adjust the rated pressure of the air compressor to 0.8-1.2MPa before operation.
4. Pull the handle at the air distribution valve counterclockwise to lower the jack automatically.
Item Included (032651): 1 x Pneumatic Jack 120T
Notice
1.Limited stock, please purchase ASAP if you want it.
2.Before pickup, please call us to make sure.
3.The price will be adjusted when there's large fluctuations in exchange rates and raw material costs.
4.Advertising price does not include the tax.
-
Warehouse Address:
2220 Midland Ave., Unit 60AP (Administration Park)
Scarborough, ON M1P3E6
Business Hours:
Monday - Friday 9:00am - 4:30pm
Saturday & Sunday Closed
* For PICK UP, appointment by phone needed.
Tel: 647-350-2889 416-727-3877
http://asc365.com/
