Item number 130114

We provide service and technical support for free during warranty period.

The main function of is water cycle, if you want refrigeration and cooling, we recommend #130058

-

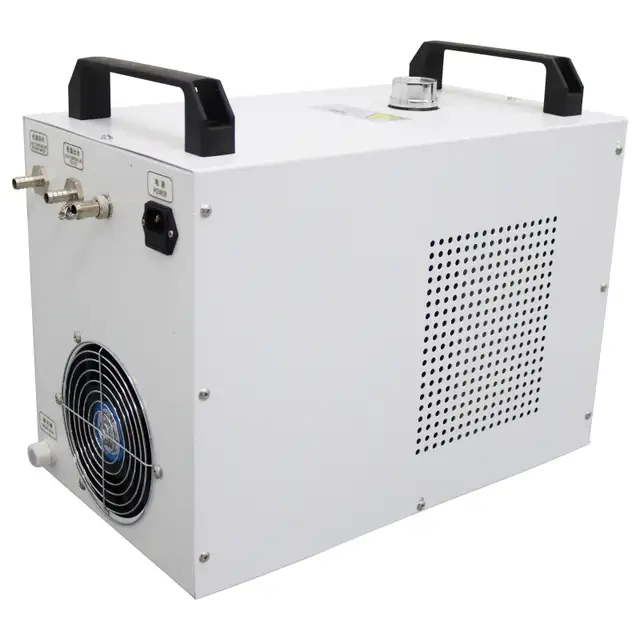

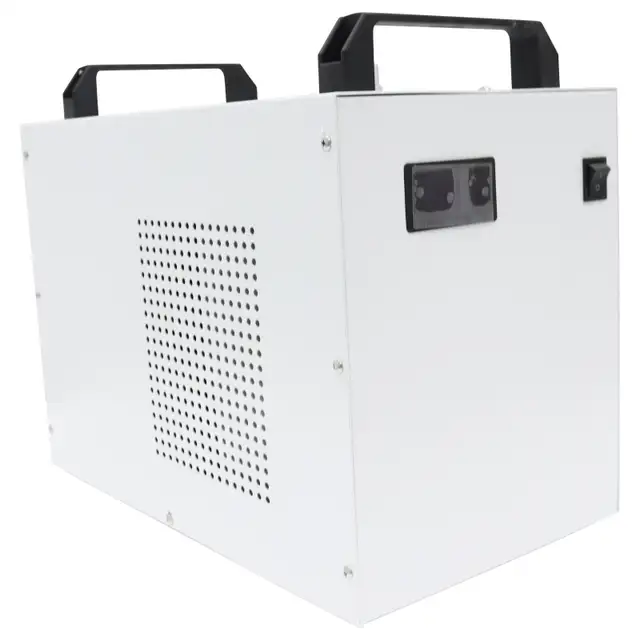

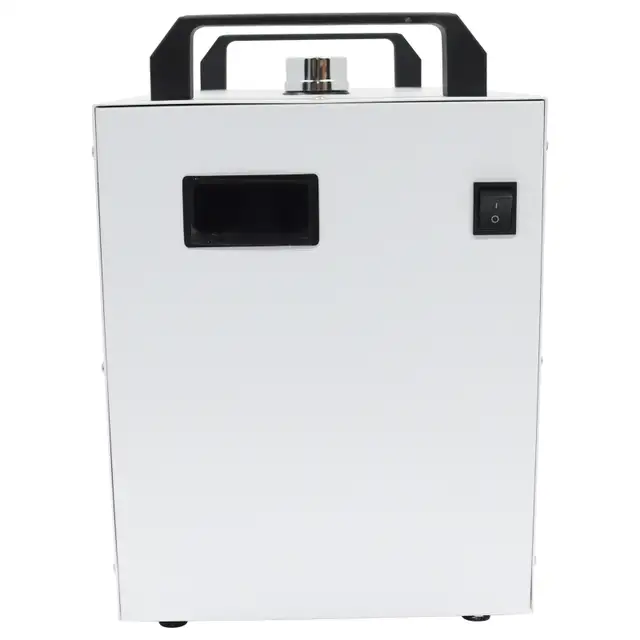

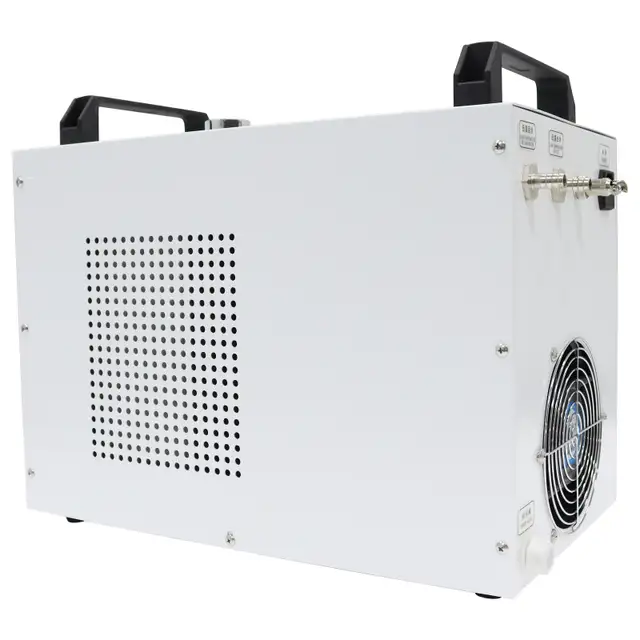

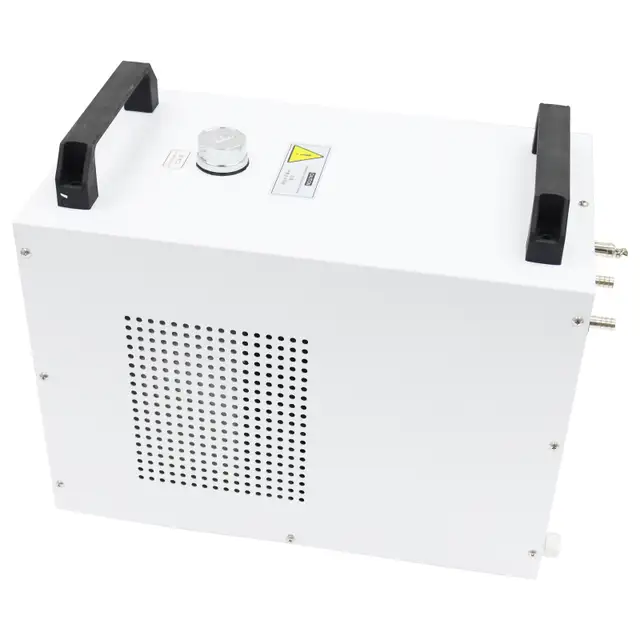

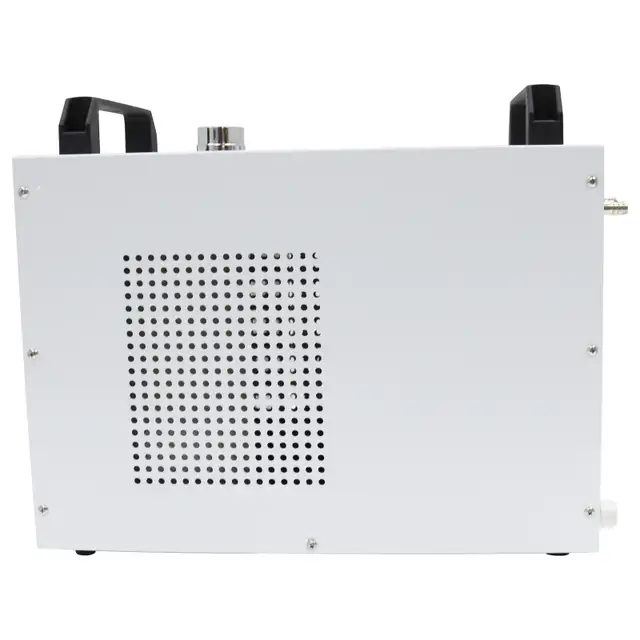

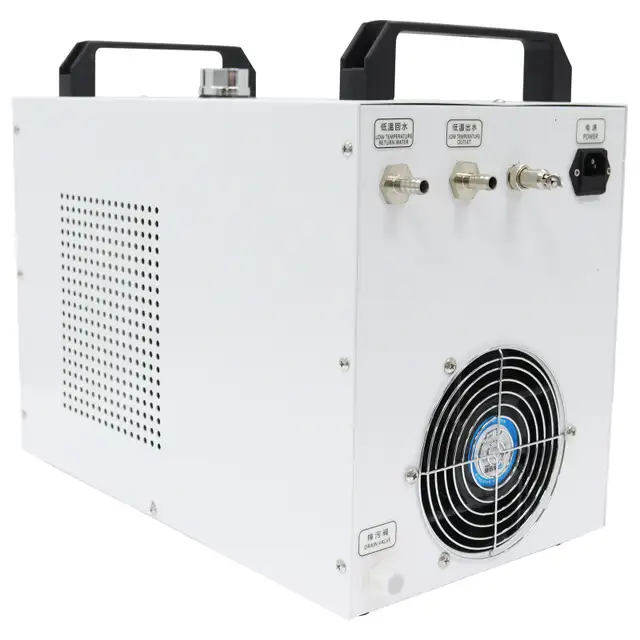

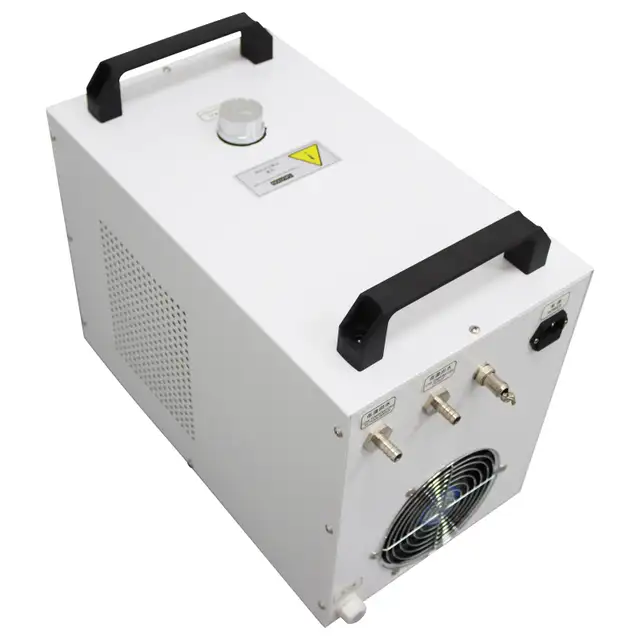

CW-3000 Series is professional cooling machine referring to international, advanced thermolysis cooling system design, suitable for small water-cooled cooling devices requested machinery.



1. Specific disconnection alarm security protection.

2. Hermetic type water tank, water is available for a long time used.

3. Real-time temperature monitoring, accurate knowledge of heating devices

working condition.

4. Professional air-cooled forced radiator with strong heat dissipating

capacity and difficult to be blocked up.

5. Equipped with alarm output port to protect sensitive components quickly.

6. High cost performance, low failure rate.

-

SPECIFICATIONS

MODEL:CW-3000DG

Voltage:AC100-120V

Frequence:50/60HZ

Current: 0.9 A

Cooling:50W/ Degrees Celsius

Capacity:9L

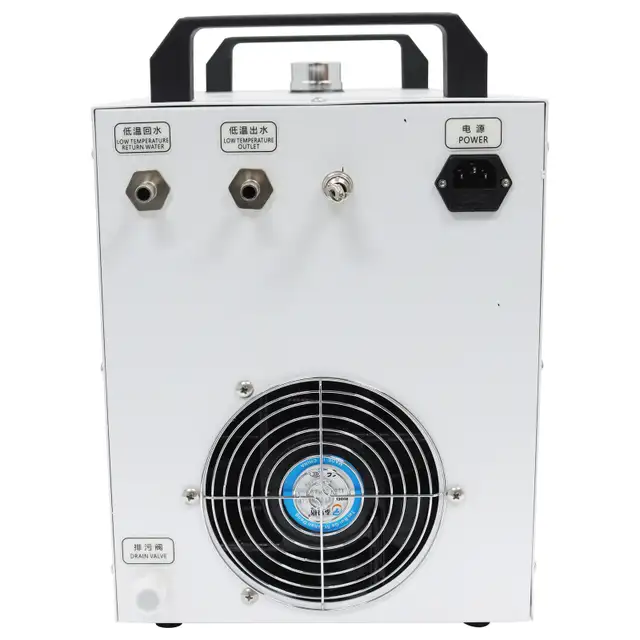

Inlet and outlet hold:Outside dimensions 10mm brass connector

Max .Lift:10M

Max.Flow:10L/min

Protection:Flow alarm

N.W: 9.5 Kg

G.W:12Kg

Dimensions: 47*27*37cm (L*W*H)

Packing dimensions: 59*39*48cm (L*W*H)

-

The first Installation

It is very simple to install this industrial cooling machine. The first time

installation of the new machine can be carried out by following steps.

1. Open the package to check if the machine is intact and all the necessary

accessories are completed.

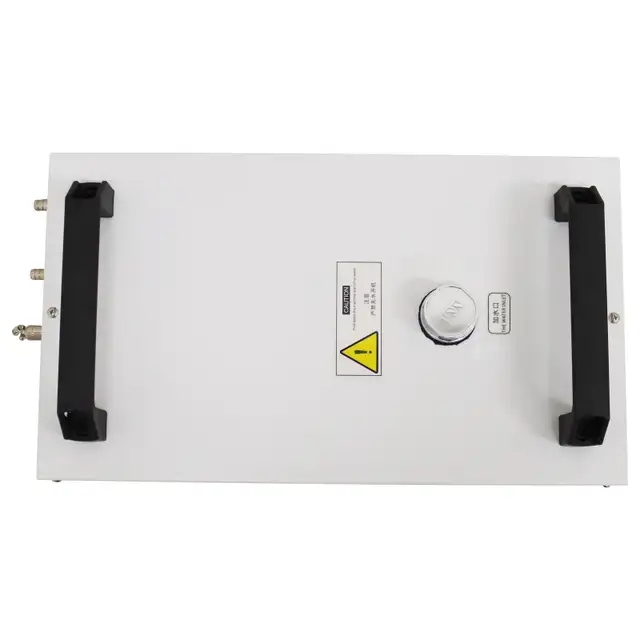

2. Open the injection port, then add cooling water.

3. According to system conditions, connect the water inlet and outlet pipe

well.

4. Plug in power, turn on the power switch. (Do not allow the water overflow)

5. Check the water level of the water tank again. (It should be 80-150cm from

the surface of water to the injection port)

-

Maintenance

1. To ensure good heat dissipating, please open the lid to clean the dirt after the

cooler used in long-term.

2. Working in cold north area, it is better to use noncorrosive antifreeze fluidinstallation of the new machine can be carried out by following steps.

-
