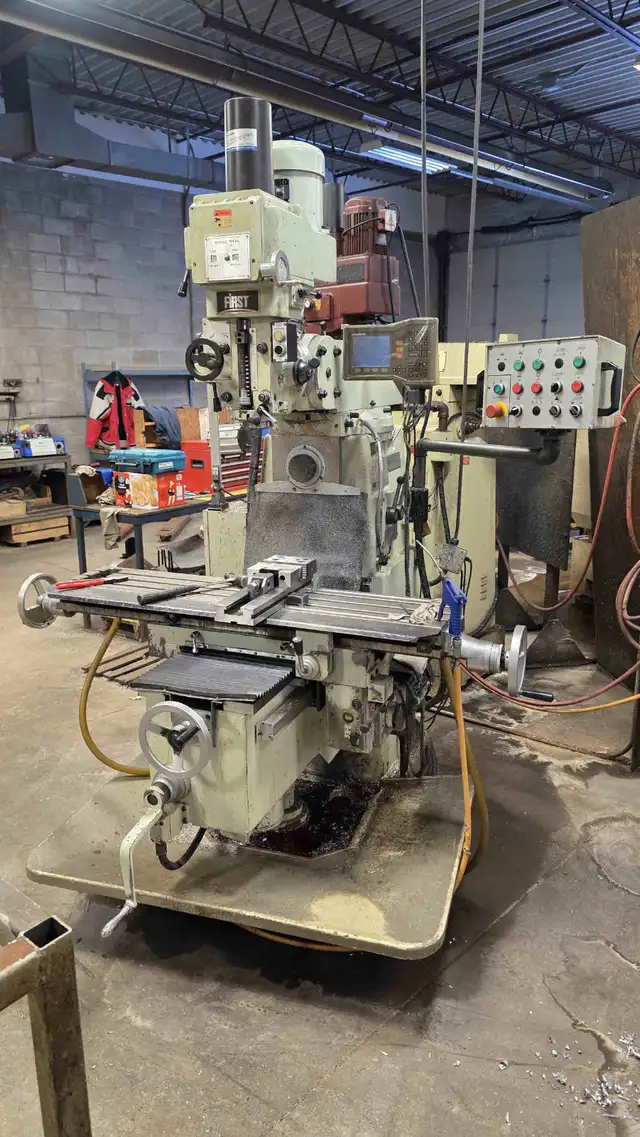

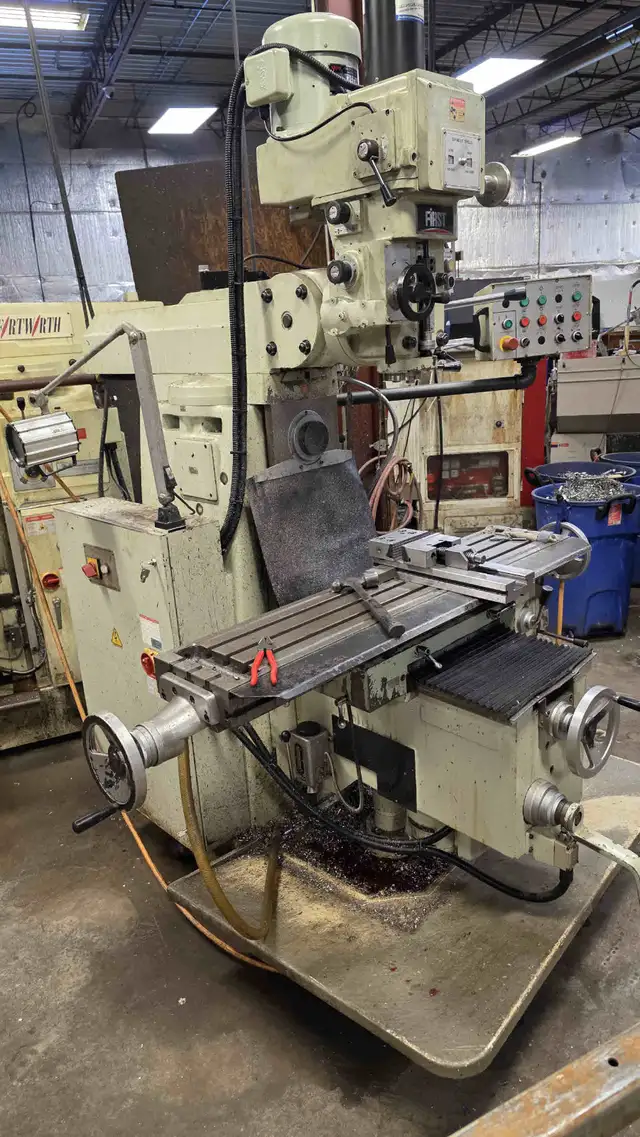

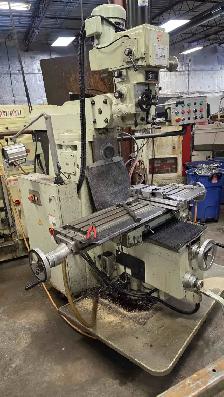

Here Is A First LC-20VHS Vertical & Horizontal Mill We Have In Stock,
If You Require Anymore Photo`s & Info Please Call Or E-mail Us.

Specifications:

Model - LC-20VHS
Year - 09/2012

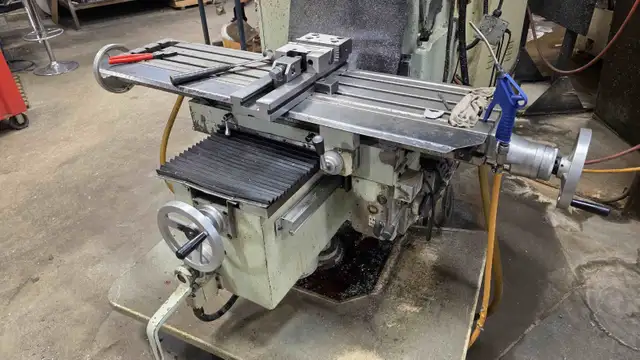

Table Size - 10.2” x 51”
Table Travel Left/Right - 36.2”
Table Travel Front/Back - 16.9”
Table Travel Up/Down - 17.1”
Quill Travel - 5”
Spindle Taper - 40
Max Load On Table - 1102 LBS

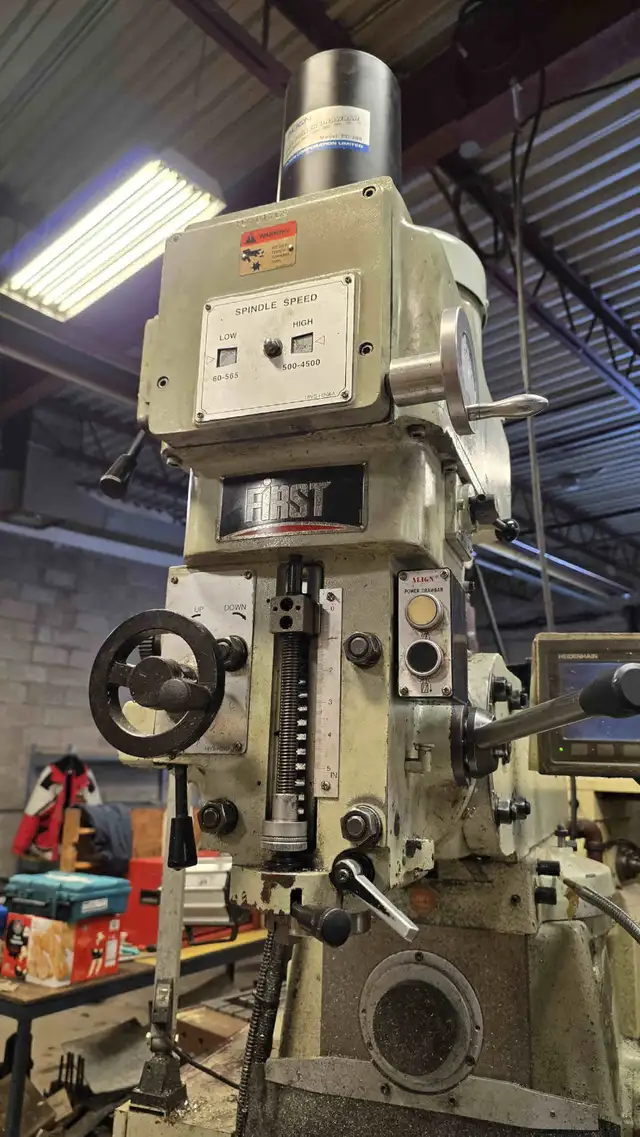

Vertical Spindle Speeds (Variable) - 60 to 4500 RPM
Horizontal Spindle Speeds - 11 to 1180 RPM

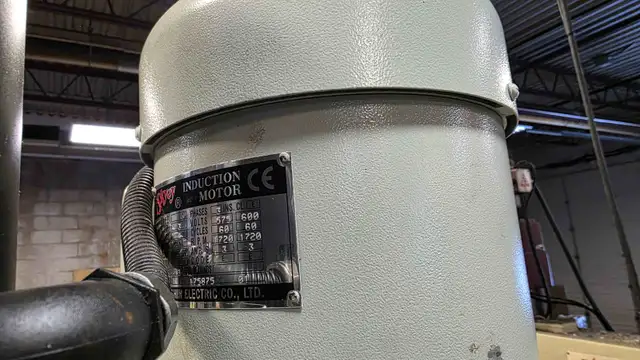

Main Motor - 3 HP
Electrics - 575V/3PH/60HZ
Made In - Taiwan
Approximate Weight - 4,500 LBS
Approximate Overall Dimension - 76”L x 80”W x 94”H

Equipped With:

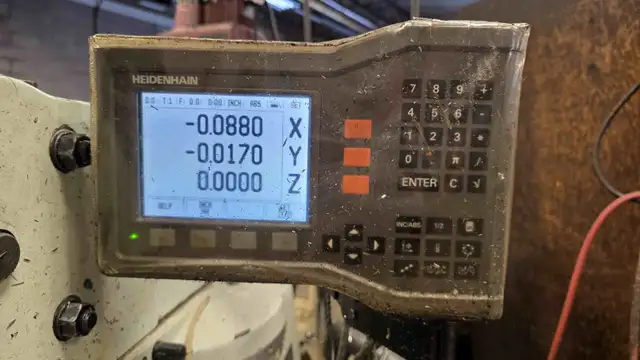

Heidenhain Three Axis Digital Readout
Align PD-200 Air Power Draw Bar
Variable Spindle Speeds
One Shot Lubrication

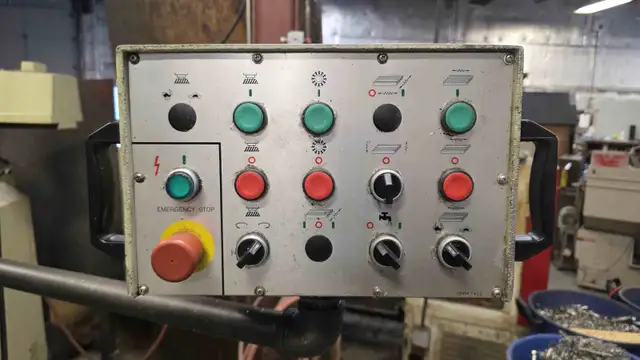

Pendant Control
Coolant System

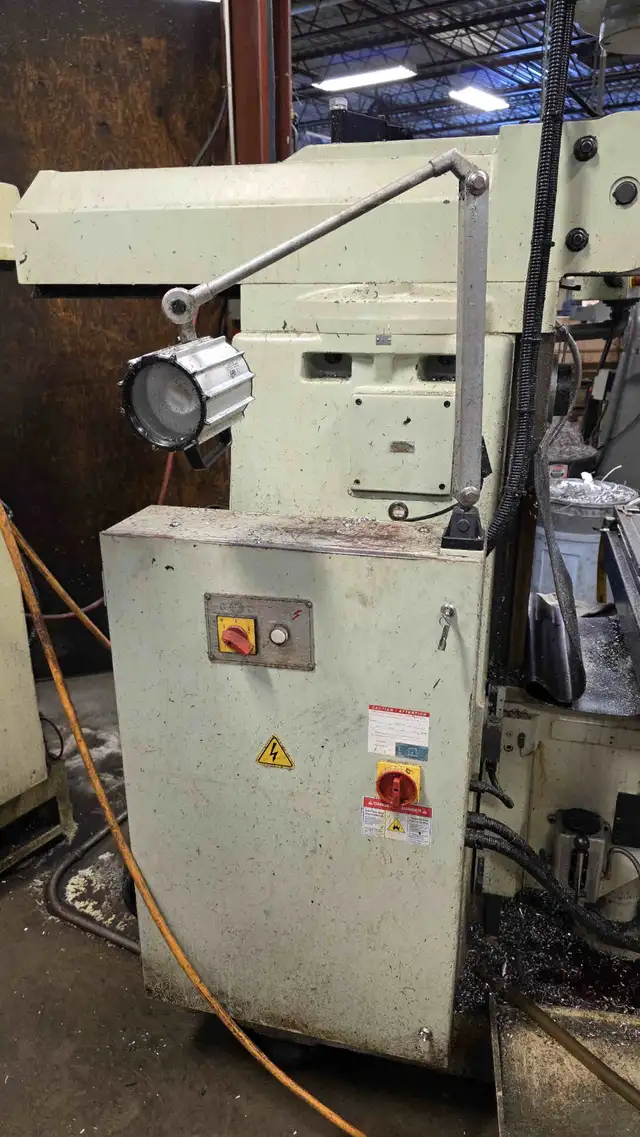

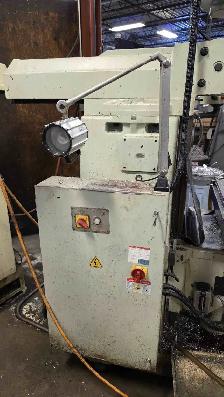

Work Light
