Item number: 028174

Mini Vibrating Feeder Electromagnetic Powder Shaking Feeding Machine 110V #028174
-
Product Overview
Micro electromagnetic vibrating feeder is widely used in various industries such as light industry, chemical industry, food, food, grinding, etc. It is used in the feeding, batching and quantitative automatic packaging of powder and granular materials, and can realize the production process. centralized control and automatic control.
-
Product Parameters
Model: GZV-3
Voltage: Both AC110V and AC220V are available
Power: 30W
Production capacity: About a ton per hour(220V voltage condition)
Vibration frequency: 3000/3600 beats per minute(Low and high frequency)
Amplitude: 0.06"(1.5mm)
Package size: 21.3"*6.3"*11.0"(54cm*16cm*28cm)
Net weight/Gross weight: 27.8LB(12.6kg)/28.9LB(13.1kg)

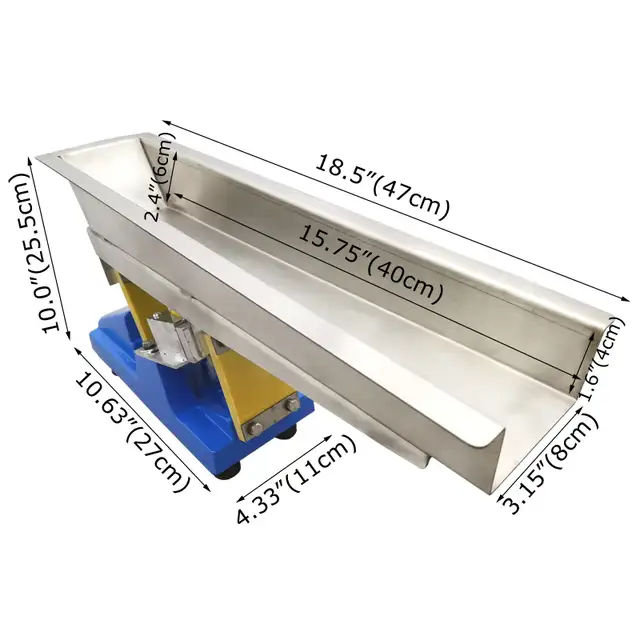

The dimensions of other models are as shown in the picture below, if you need other models, please contact us.

Product Features & Advantages
Thicken the Base
The base has been thickened and weighted, and the design
is scientific and reasonable to ensure the stability of the center
of gravity during work, without deviation

Shock Absorber
The two shock absorbers before and after the machine are made
of thickened resin, with good elasticity and toughness, not easy
to break, and long service life

Rubber Mat
The bottom of the machine has 4 rubber mats. With good anti-slip,
slow shock, corrosion resistance and other functions, stable support,
can prevent the machine from working deviation

Feeding Chute
15.7 "x 3.1" oversized feeding trough, made of thickened 201
stainless steel, scientific and reasonable structure, uniform
feeding and low loss.high working efficiency

Electromagnet
The electromagnet adopts high-quality silicon steel sheet and pure
copper coil, adopts resonance principle, low power consumption,
durable and high feeding accuracy

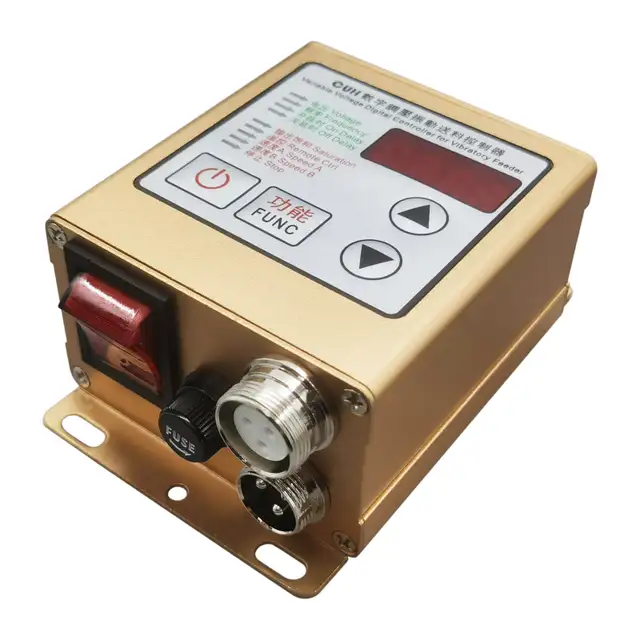

Control Unit
The control unit has two gears of high frequency and low frequency,
which is easy to operate and can be fixed to the wall; made of aluminum alloy, light weight; with short circuit protection

- Small size, light weight, reasonable center of gravity, simple structure, convenient installation and maintenance.
- The material flow can be changed and opened and closed instantaneously, so the feeding precision is high.
- Using the resonance principle, the double mass works in a low critical near-resonance state, so the power consumption is low.
- Using thyristor half-wave rectifier circuit, the feeding amount can be adjusted steplessly.
- Since the material in the feeding trough is in a jumping motion, the wear on the feeding trough is very small.
- This series of feeders are not suitable for materials above 300°C and places with explosion-proof requirements.


Item Included(028174)
GZV-3 feeding machine *1 Control unit *1 Power cord *1
-
