Item number：130111

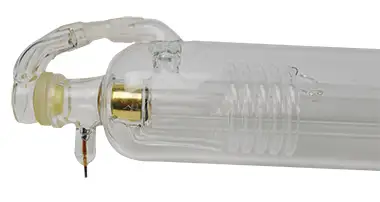

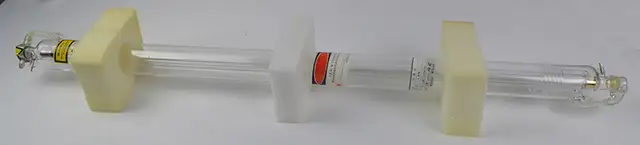

100W CO2 Laser Engraving Cutting Machine Laser Engraver Cutter Laser Tube # 130111

Laser tube is one of the essential parts of laser equipments. Output Power: rated power 100w . The production process of the tube is standardized, so the output power and output model are guaranteed. Long life span: We have catalyst plating in the inner wall of the laser tube. Designing lifespan is 10,000 hours .
-
Parameters:
Power output(W)：100
Wavelength:10600nm
Length（mm）：1450
Cooling System: Water Cooling.
Triggering voltage(KV)：22
Operating voltage(KV)：16
Operating current(mA)：0-27
Outer diameter(mm)：80
Power stability: ±5%
Water Cool
-
NOTE:
You can't leave cooling water in laser tube after power off, it will freeze at Cold areas.
Optimum working water temperature is 15-35 degrees.
working lifetime up to 10000 hours (According to the water temperature, continuous workload, the use of laser intensity and other aspects to determine)
Low power can extend the life of the tube.
-
Package including:
1x 100W laser tube #130111

Notice
1.Limited stock, please purchase ASAP if you want it.
2.Before pickup, please call us to make sure.
3.The price will be adjusted when there's large fluctuations in exchange rates and raw material costs.
4.Advertising price does not include the tax.
-
