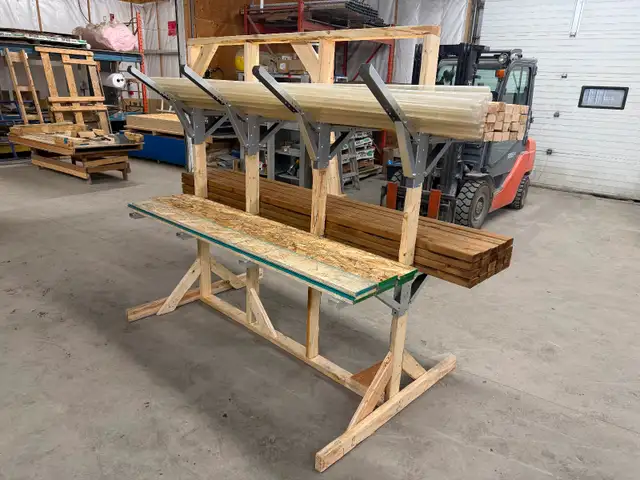

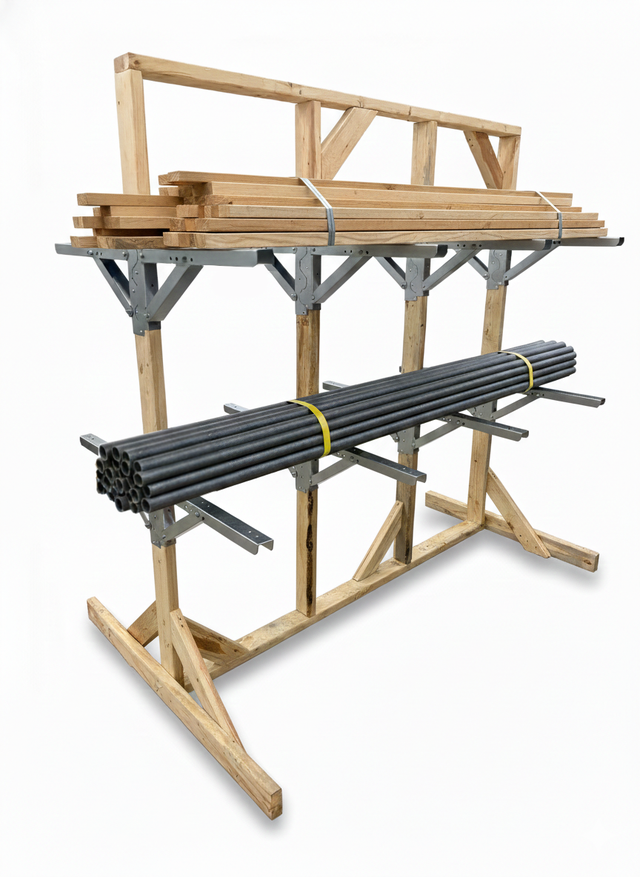

Create your own DIY storage rack system to store and organize long materials in your workshop or garage.

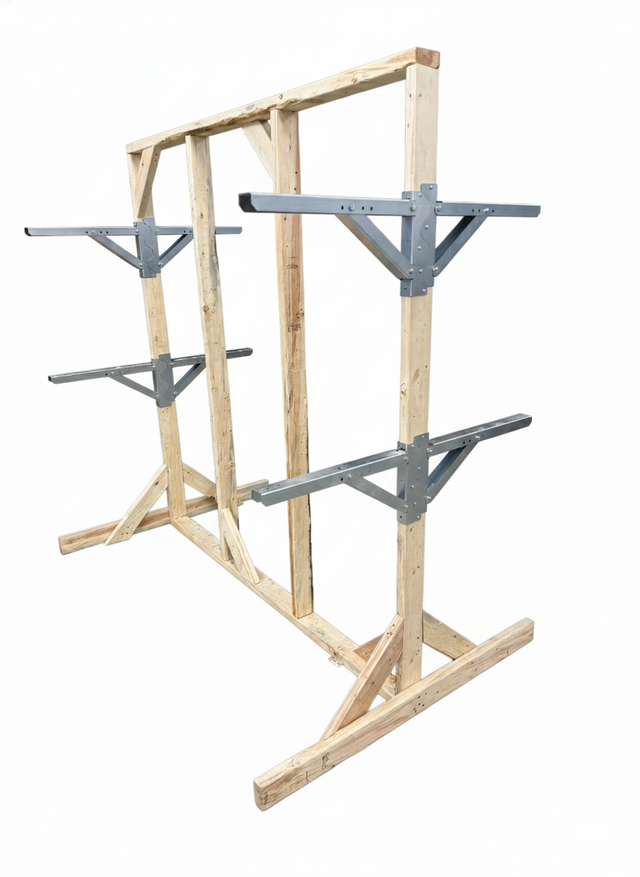

Whether you’re storing dimensional lumber, pipes, molding, or sheet goods, these horizontal storage rack arm assemblies provide a practical solution that mounts to your wall or to a user supplied freestanding unit.

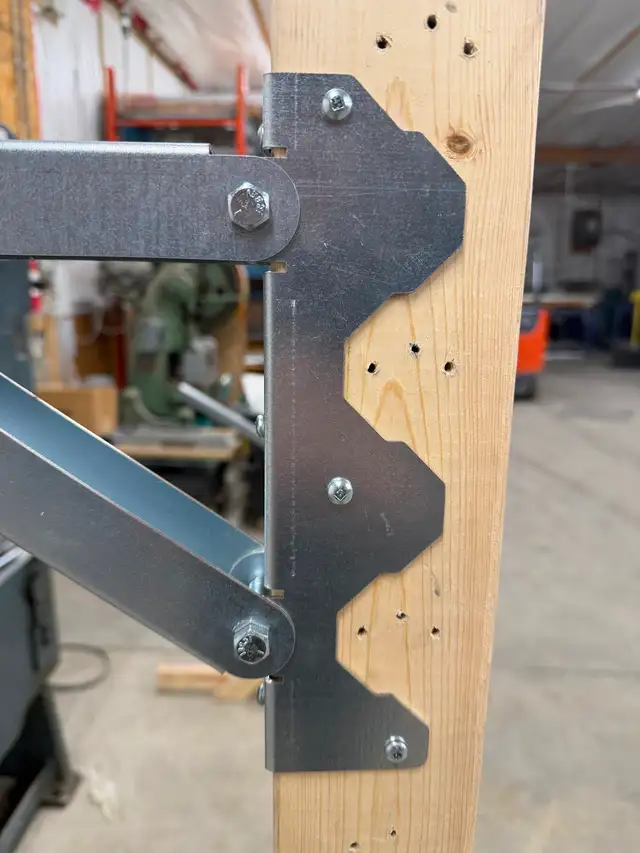

Lumber is not supplied and must be configured to accept the shelving arms. The kit includes 8 arm assemblies and the hardware necessary to attach them to standard dimensional 2×4, 2×6, 2×8, or wider lumber.

Adjustable arm angles allow for storage of round pipes or tubes. Increase arm angle up to 30 degrees to prevent items from rolling off. This flexibility makes the rack ideal for storing everything from PVC pipes to wood sheets.

Each arm has a distributed load capacity of 400 lbs. Please make sure that the user supplied stud wall or mounting frame that supports the arm assemblies will support the combined capacity of all of the arms.

Ships unassembled.

Specifications:
Vertical Arm Spacing – 10″
Arm Length – 19.5″
Angle – 30, 15, 0 or -10 degrees
Bracket Height – 10″
Width – 1.75″
Weight – 12 lbs per arm
* Load must be evenly distributed. Please make sure that the user supplied stud wall or mounting frame that supports the arm assemblies will support the combined capacity of all of the arms.

Cost: $249 plus taxes and shipping (from Winnipeg)
www.weststeel.com
Give us a call at 204-475-4766.
