Item NO.022398

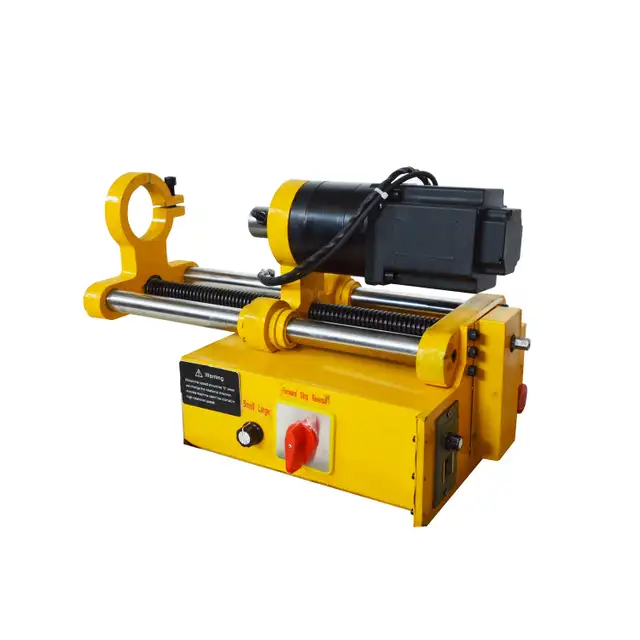

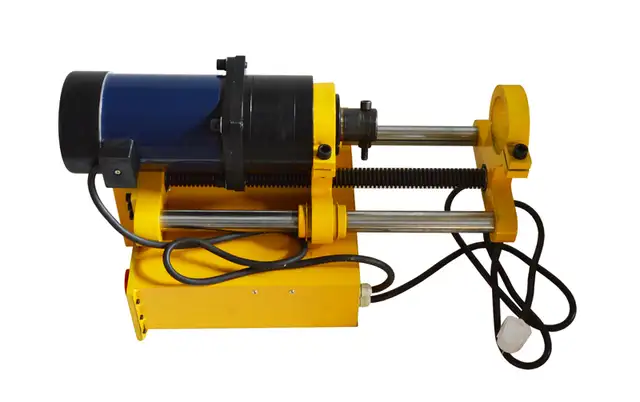

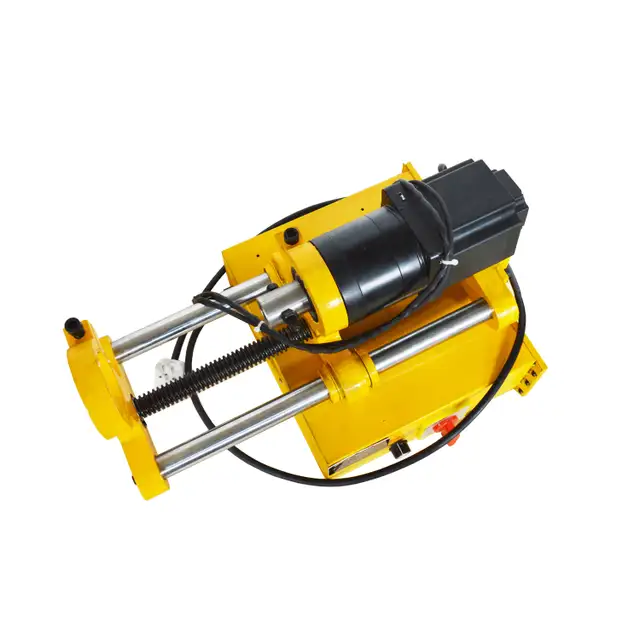

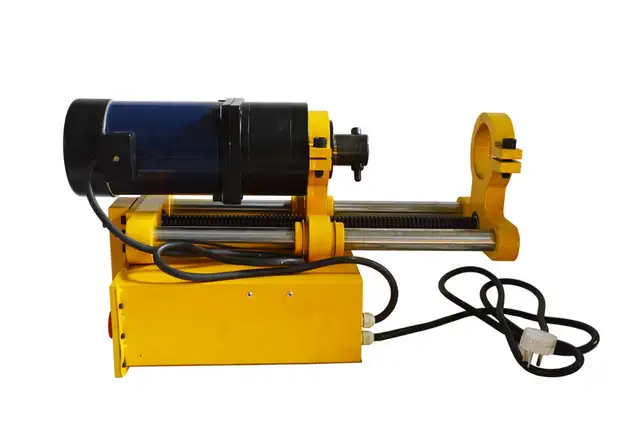

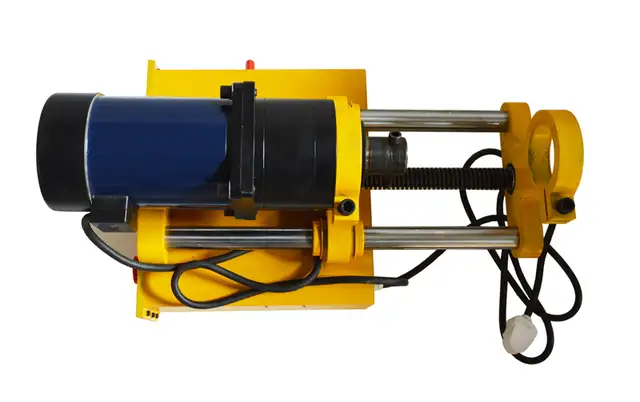

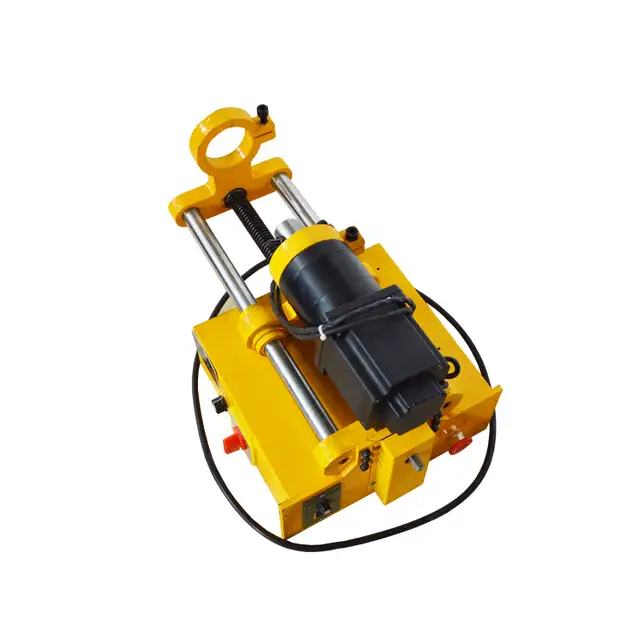

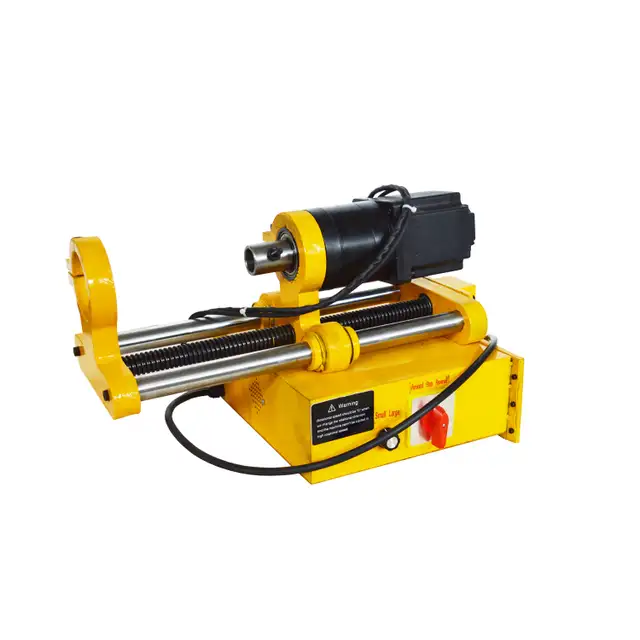

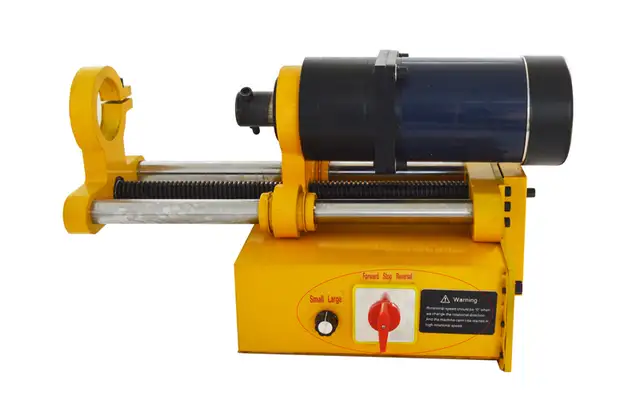

Portable Line Boring Machine Hole Drilling Connecting Rod Boring Machine 4.9ft Boring Bar for Excavator Repairing 022398

Hole drilling machine for engineering machinery is a  portable processing equipment developed for field  service of engineering machinery, which is mainly used  in processing of small-scale pipeline inner hole and  concentric span hole, and widely applied in engineering  machinery, including excavator, crane, loader, and  hoist.

Features:
1.By adopting 110V continuous current motor with characteristics of low-speed of revolution and high torque, the complete machine can realize stationary machining in superior performance.
2.Feeding and processing can realize electrodeless speed regulation. Feeding process can be set according to demands, and processing can automatically stop after reaching the limit switch.
3.Boring bar adopting high-strength alloy and structural steel is featured with high hardness, high accuracy, high tenacity, good abrasion resistance, etc.
4.The boring bar can be disassembled separately to make installation convenient.

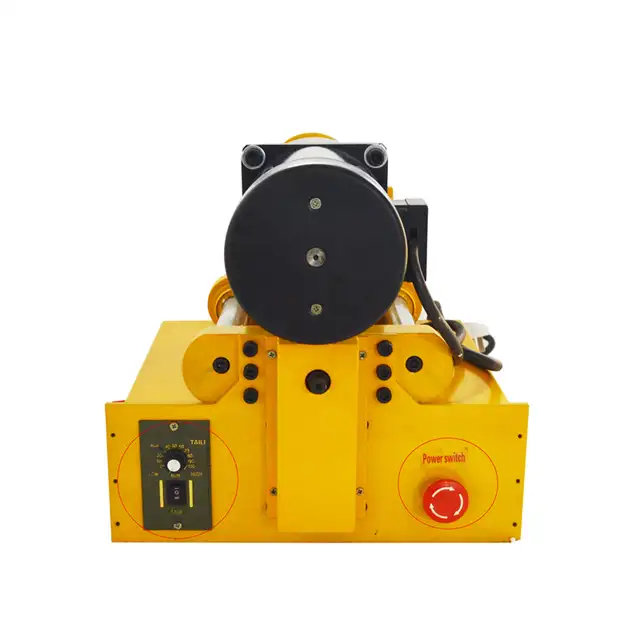

5.The control cabinet is installed below the main engine to be beneficial to safety operation.
6.Electric motor controller is equipped with dynamic delay brake program to avoid vibration in shutdown.

Technical  Parameters:
The maximum processing hole diameter: 180mm
The minimum processing hole diameter: 45mm
The maximum processing travel: 380mm
The maximum feed depth: 2mm on one side (A3 steel)
Surface roughness: Ra3.2
Deviation from circular form<=0.02mm
Gross weight of equipment: 120KG
Rotate speed: 0-83RPM

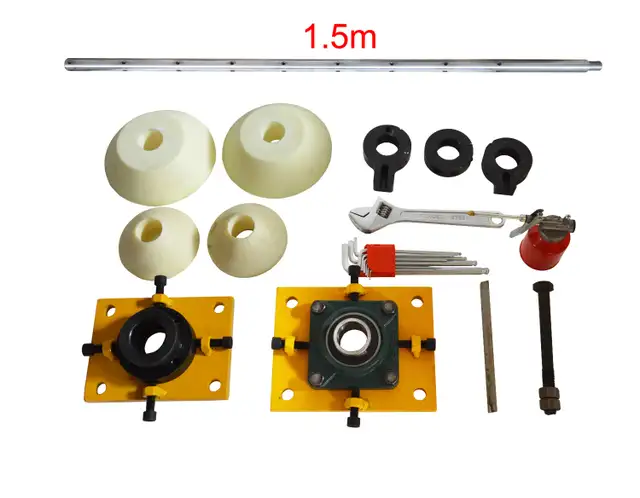

 Boring bar: 40*1500MM

Item Include(022398)
A set of hole drilling machine
Two carton packing
Notice
1.Limited stock, please purchase ASAP if you want it.
2.Before pickup, please call us to make sure.
3.The price will be adjusted when there's large fluctuations in exchange rates and raw material costs.
4.Advertising price does not include the tax.
-
