Item number: 230503

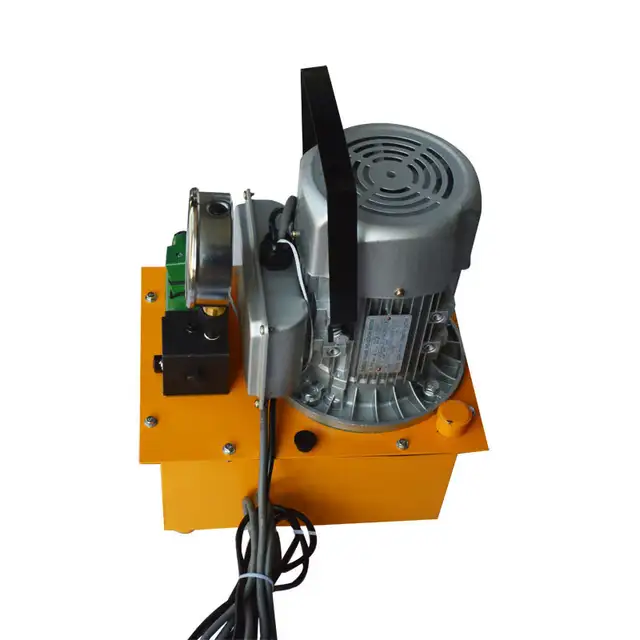

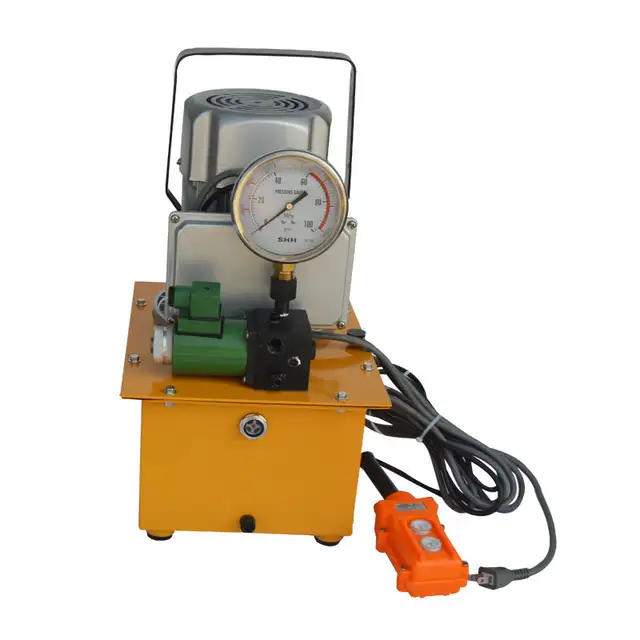

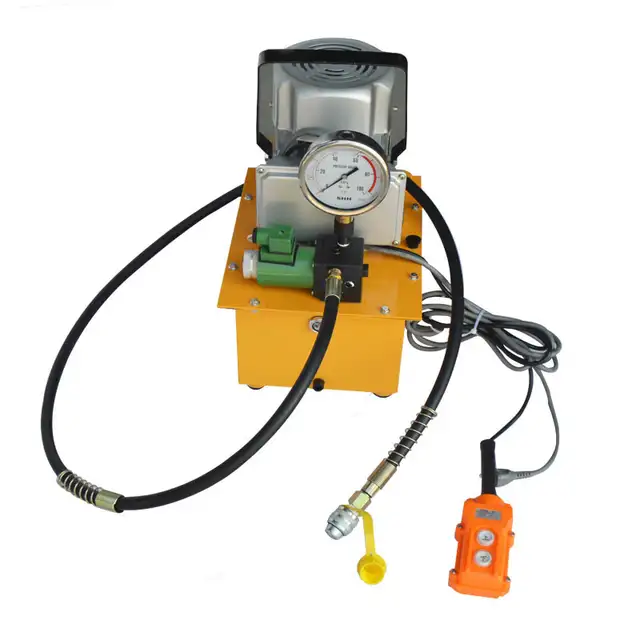

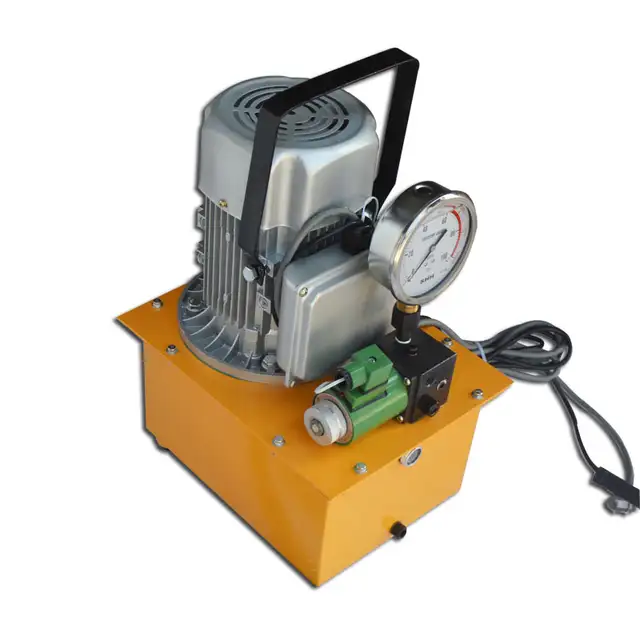

Electric Hydraulic Pump Single Acting Solenoid Valve 7L Manual Valve High Pressure 10000 PSI 230503
-
Specification

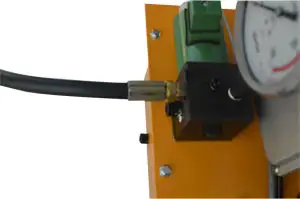

Should be used first quick connector quick connector sets equipped with hydraulic equipment connected. When plugged in, press the power switch to operate for some time, in the absence of pressure, the output hydraulic oil all the work, and the output hydraulic oil with increasing load all the work up to 70Mpa, the need to buck their own supercharged, press the solenoid valve switch the pressure back to zero and hydraulic equipment, hydraulic oil back to the fuel tank. Remove the quick connector sets the end, unplug the power.

Structure and working principle:
Pump principle: (see oil system diagram)
(Set oil block) devices in the high pressure the output oil line whereunloading relief valve to maintain the required output pressure andthe security role.

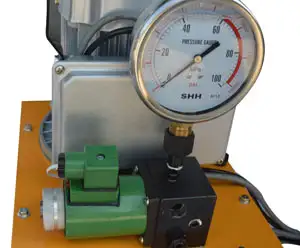

The pump can be observed at any time to work when the pressurechanges, ad hoc pressure gauge, so that users always observe thechanges in the work. Control switches according to user needs, withmanual switch.
When the pressure is below 7 MPa, the low pressure pump is working and the flow rate is 5 L /min. When the pressure is above 7 MPa, the high pressure pump is working

Parameters:
Model: DBD750-D1
Rated working pressure: High pressure 70Mpa
Low pressure 7Mpa
Flow: Hypertension 1L/ min
Low-5L/min
Motor power: 750W
Voltage: 110V
Frequency: 60Hz
oil storage volume of: 7L
outside dimensions: 11.8"*9.4"*15.7"

Item Include: 230503
1*DBD750-D1High Pressure Electric Pump
