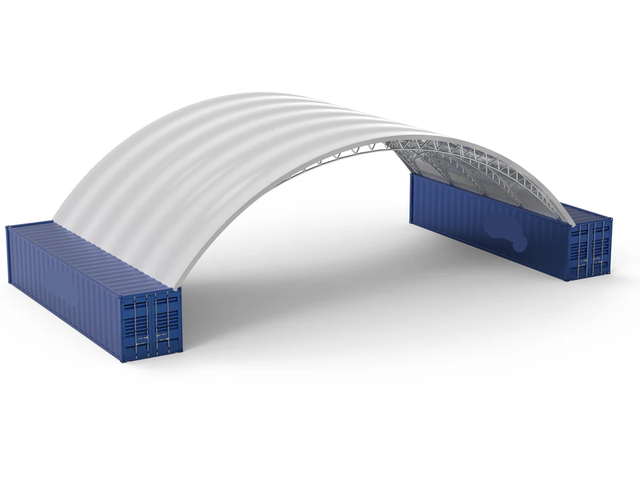

Model: EMC-C604020DR
Features

For large equipment, materials and vehicle storage; adaptable to any kind of covered outdoor needs
Heavy duty PVC fabric cover: Fire retardant, Leak proof, UV Protected​
For large equipment, materials and vehicle storage; adaptable to any kind of covered outdoor needs
Commercial grade, 3-layer galvanized steel frame structure is long lasting, much higher corrosion protection than the traditional single layer of zinc​

Specifications

Overall Size: W60’×L40’×H20’
Shape: Double Truss / Dome Ceiling
Cover: 22oz(610GSM) PVC Fabric
Arch Tube: 76*2.0mm
Purlin Tube: 60*1.5mm
Truss Spacing: 10’ (3m)
Truss Quantity: 5 units
Large Base Plates: 10 units
Base plates need to be welded on the Containers

Warranty

Warranty Terms and Conditions (EN)
Conditions de Garantie (FR)

Packing Details

Package dimensions：

Box 1: 115″(L)*43″(W)*43″(H)
Box 2: 115″(L)*43″(W)*43″(H)
Box 3: 134″(L)*43″(W)*43″(H)

Package weight:

Box 1: 1816 lbs
Box 2: 1688 lbs
Box 3: 2036 lbs

Recommended Foundations:​

Concrete spread footings/padding
Poured in place concrete walls
​Precast concrete walls
Lock blocks
Sea Containers
