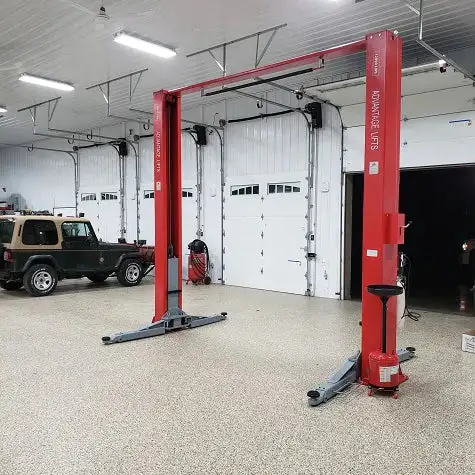

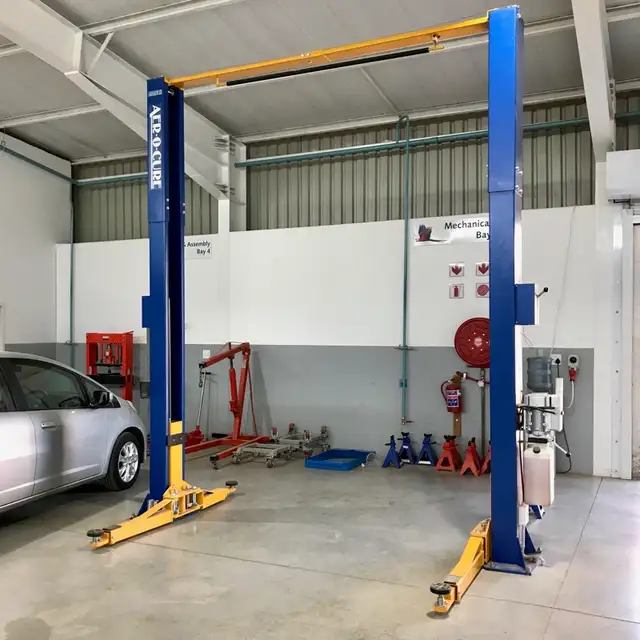

Model: QJY4.5-D
Features
The optional triple-stage arms combination make the lift can accommodate a wide range of vehicles from Smart to SUV, light van
The arm locks engage automatically when the lift is raised and disengage when fully lowered
Top and bottom pulley mount design avoid pulley from coming off
ETL certified for Hydraulic Pump Power Unit
Specifications
Capacity: 10,000 lbs
Overall Height: 107-1/5”
Width between posts: 109”
Drive Trough Width: 101-3/5”
Max lifting height: 72-4/5”
Min pad height: 4-3/10”
Front arm reach: 30-2/5” to 44-1/2”
Rear arm reach: 30-2/5” to 44-1/2”
Power supply: 220V/60HZ

Packing Details
Package dimensions：110×18×29 Inches
Package weight: 1267 lbs
