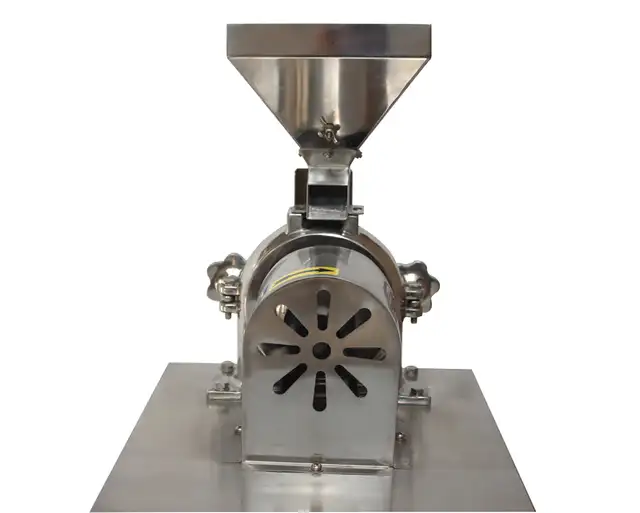

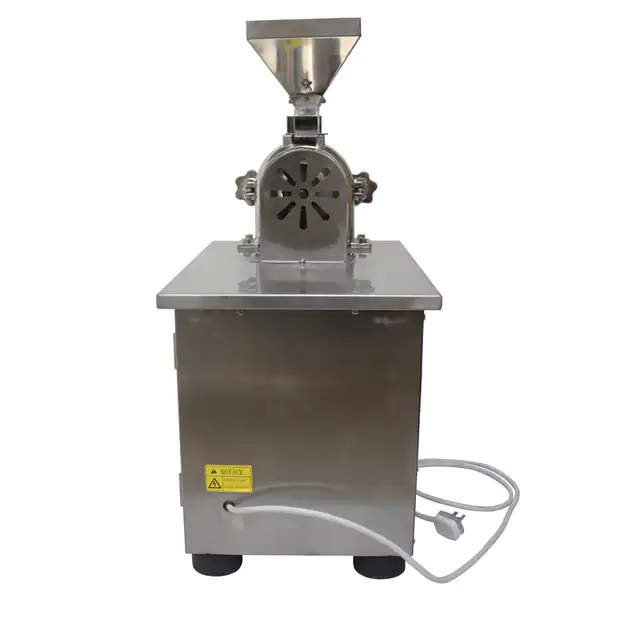

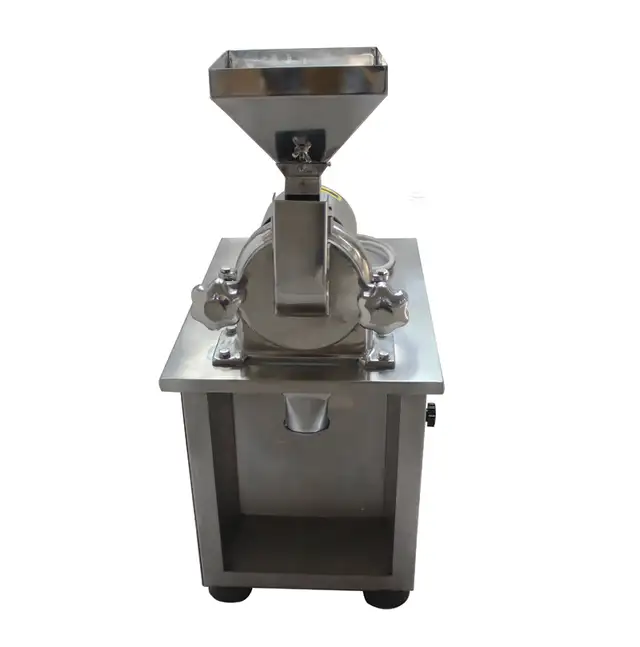

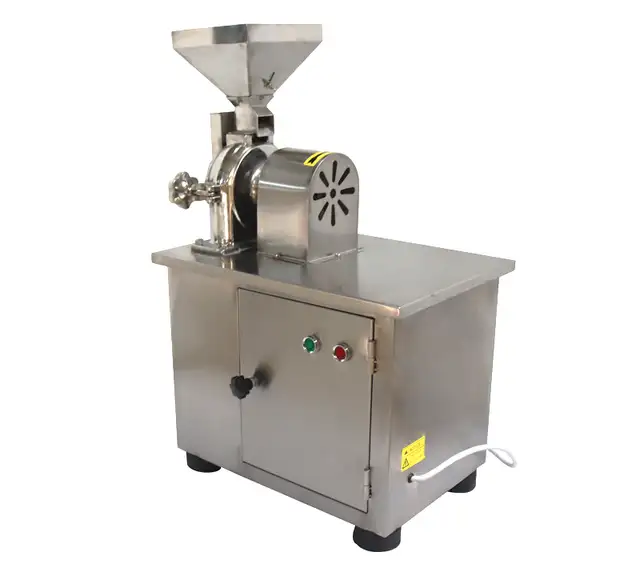

Item Number 150022 (110V)

Universal pulverizer utilizes the high-speed relative motion of the moving and regular tooth set,so that the materialis crushed through vibration,rubbing and crushing operation.
The structure of machine is simple and firm, the operation is steady and the result of crushing is well.

The materials are discharged directly from the main machine, the size of the granularity is gained through replacement of sieves with different pore sizes.

In addition, this machine is made of the stainless steel, surface of the inside of the machine is smooth, so that the phenomena that the internal wall is coarse and powder accumulates on the internal wall are avoided.

It well meets the national standard in the fields of chemical production and food.

Notice:
1. It is only suitable for dry materials. Wet materials or liquid can cause a breakdown of the machine.
2. It is not suitable for the too light material.

Those reasones cannot serve as return reasons.Please buy it with caution.

Direction for use
1. Before the machine is used, please check whether transmission parts are loose or the other abnormity is produced, and the direction of the machine operation should be consistent with the direction shown by the arrow.
2. No-load test is conducted for 1-2 minutes before using the machine. Materials can be fed after the machine is operating normally. Increasing the feeding quantity gradually and obversing the electric current and functioning of the motor. The blanking flashboard can be fixed only after feeding and current balance are normal.
3. Drying the materials or using a coarse screen stencil if the materials are too wet or have poor mobility to cause poor discharging performance. Opening the front cover to replace the screen stencil. The hand wheel must be tightened to ensure the front cover and the case remain sealed.
4. Stopping feeding the materials for 5-10minites to reduce the residual material before shutting down the machine.
-
Technical parameters
Spindle speed：7000r/min：
material limit size: 5*5*5mm
Crushing Fineness：10-120mesh
Production Capacity：2-5㎏(4.4lbs-11lbs)/hour
Working noise：≤85db
Direction of rotation：clockwise：
Voltage：110v
Motor power：1.1KW：
Overall dimension：560×380×820mm(22"*14"*32")
-
Maintenance and Repair
Regularly checking the bearing and replacing high-speed butter to ensure the normal operation of the machine. It is necessary to frequently check wearing parts which need to be timely replaced if there are any severe wear phenomena.
When the machine is operated, if the spindle speed was found to gradually decline (Triangle loosens), turn off the machine and downward adjust the motor (pay attention to the same elasticity of the Triangle, if there are inconsistencies in the Triangle, replace it). The machine can achieve the required speed. Abnormality checks should be conducted after shutdown.
Metal materials, such as nails and iron, are strictly prohibited from entering the inside when the machine is running.
Cleaning away residues in various parts of machine after turning off the machine, the machine which is not used for a long time needs to be wiped and is with good cover protection.

-
Notice
1.The screen is 10 mesh, ship with original package. If you need other mesh size, please contact us.
2.The machine calculate the output by western medicine raw materials, because the materials are different, It is difficult to achieve uniform standards.
3.The output also depend on the size of the mesh. The smaller particle will cause the lower output.

Item Included
1 set of 110v Universal  Pulverize （150022）

Notice
1.Limited stock, please purchase ASAP if you want it.
2.Before pickup, please call us to make sure.
3.The price will be adjusted when there's large fluctuations in exchange rates and raw material costs.
4.Advertising price does not include the tax.
-
