Item number: 028062
-
Product Overview:
Miniature lathe is mainly used for processing the end face of various rotary surfaces and rotating bodies.For example, turning inside and outside cylindrical surface, cone surface, ring groove and forming turning surface, turning end face and all kinds of commonly used metric thread, cone surface, ring groove and forming turning surface, turning end face and all kinds of commonly used metric thread.

Product Parameter:

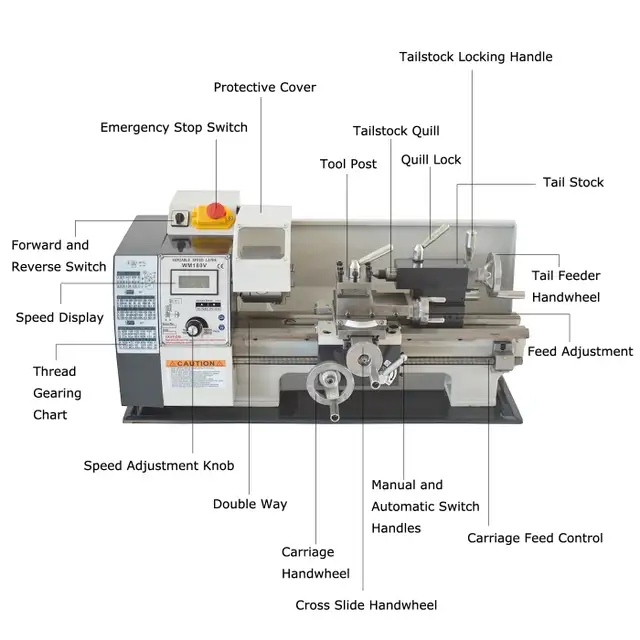

Model: WM180V
Motor: 110V brushless motor
Voltage: AC110V 50/60Hz
Power: 600W
Length of center: 11.8"(300mm)
Swing Over Bed: 7"(180mm)
Spindle bore: 0.83"(21mm)

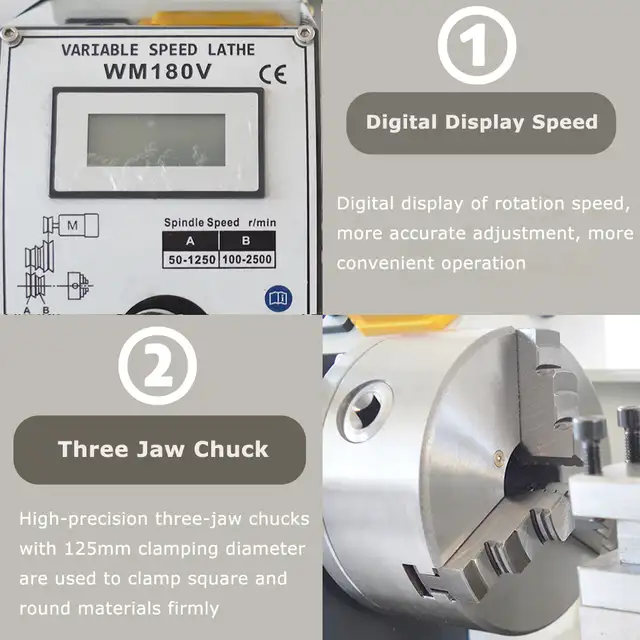

Diameter of chuck: 3.94"(100mm)
Width of lathe bed: 3.94"(100mm)
Number of Spindle Speeds: Infinitely variable speeds
Spindle taper: MT3

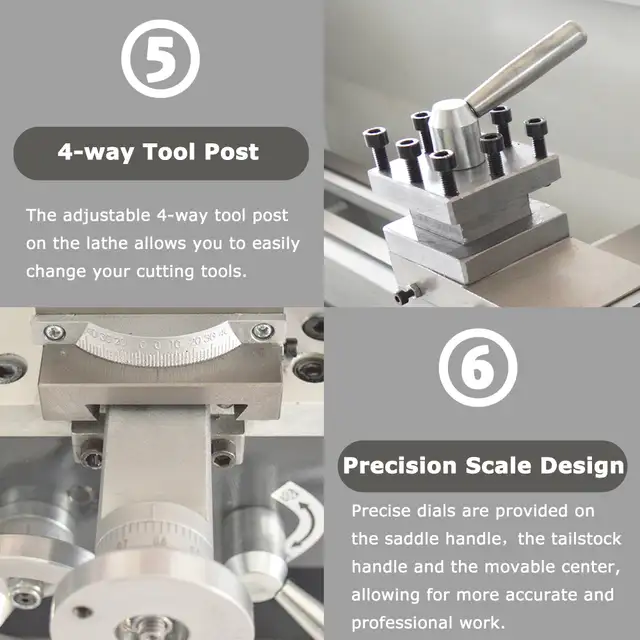

Knife rest labour: Horizontal four-station
Spindle rotation speed: 50-2500rpm
Range of metric threads: 0.3-3mm
Range of Inch Threads(optional accessory ): 10-44T.P.I
Precision of the spindle: 0.01mm
Range of Longitudinal Feeds: 0.08mm-0.16mm
Automatic feed range: 0.1mm-0.2mm
Towing trip: 1.97"(50mm)
Cross Slide Travel: 2.95"(75mm)
Tailstock Quill Travel: 2.36"(60mm)
Tail frame taper: MT2

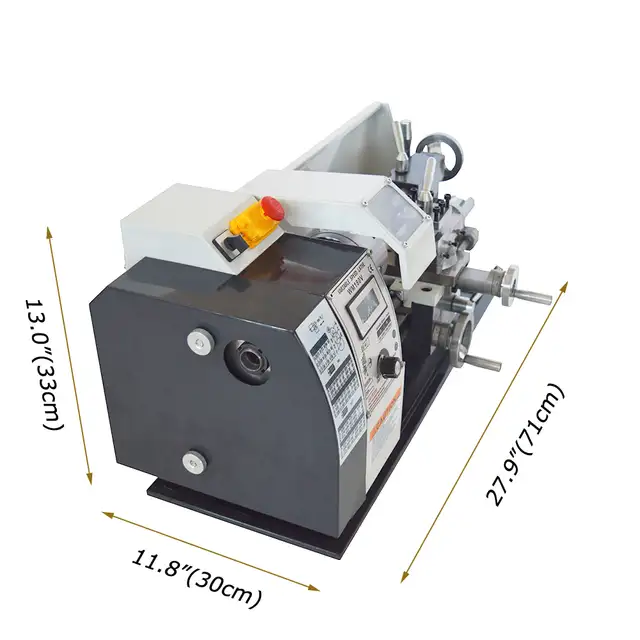

Package size: 32.1"*19.3"*17.3"(81.5*49*44cm)
Gross weight: 140lb(63.5kg)

Product Advantages:
- High quality cast iron bed after high frequency quenching process and precision grinding

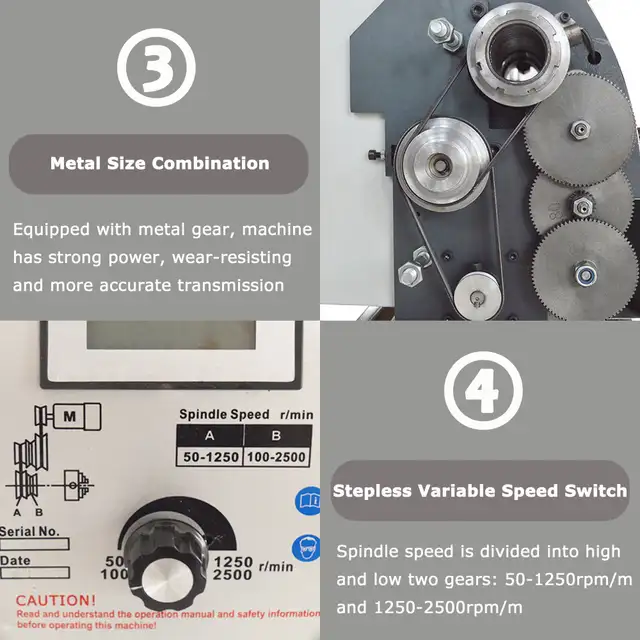

- Metric and inch threads can be machined by replacing metal gears; The spindle rotation speed is divided into two levels in the range of 50-2500rpm, which can be adjusted continuously
- Using pure copper core brushless motor, strong power, long life.

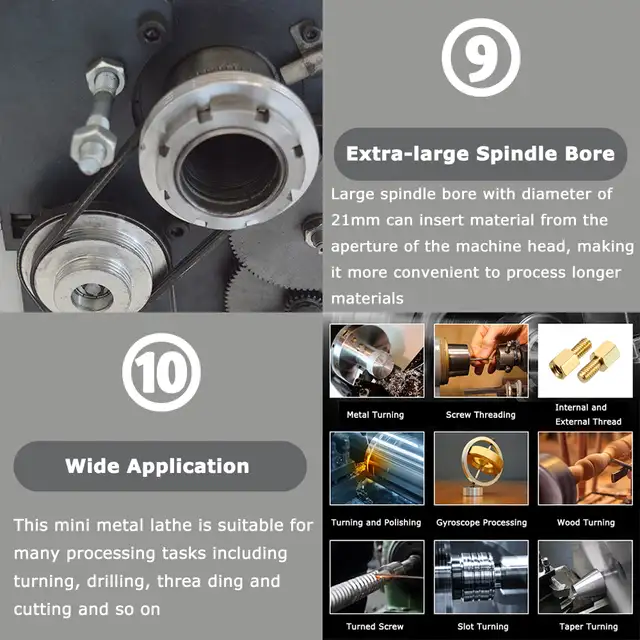

- 0.83" large spindle through hole, provides more processing possibilities; The gear is made of metal, which is more wear-resistant and has low noise.

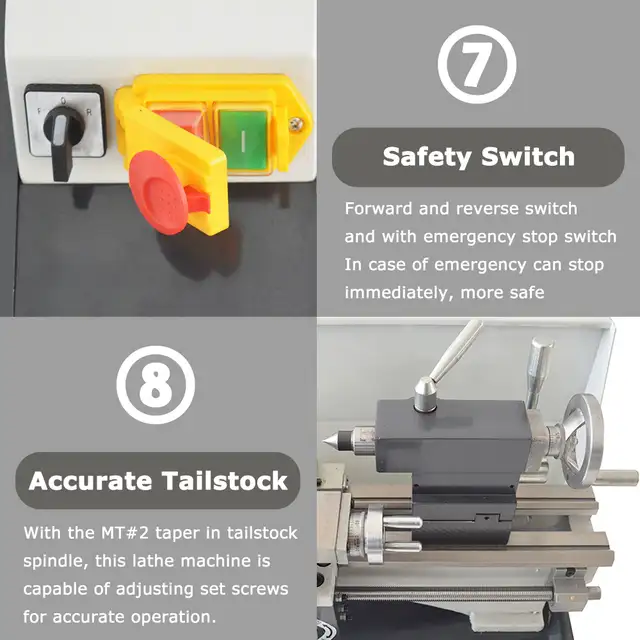

- With one button start and stop switch and forward and reverse switch

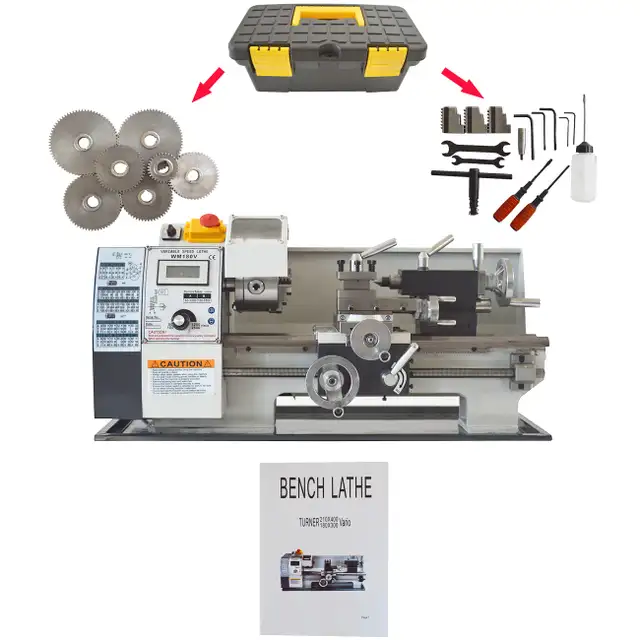

Item Included: 028062
WM180V lathe *1
Chuck Jaw *3
Gear *7(30/48/50/52/60/66/70)
The Screwdriver *2
Open spanner *2
Hexagon Wrench *5
Oil can *1
The Fuse *1
Chuck Spanner *1
English manual *1
