8"x24" Precision Metal Lathe
WM210V Precision Metal Lathe is mainly used for processing the end face of various rotary surfaces and rotating bodies. For example, turning inside and outside cylindrical surface, cone surface, ring groove and forming turning surface, turning end face and all kinds of commonly used metric thread, cone surface, ring groove and forming turning surface, turning end face and all kinds of commonly used metric thread.

Features:

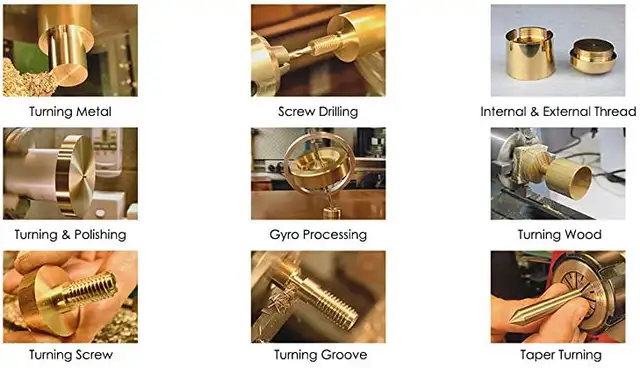

1.The metal lathe is suitable for turning, drilling, threa ding anc cutting. Used for turning inside and outside cylindrical surface, cone surface, ring groove and forming turning surface, turning end face and all kinds of commonly used metric thread.

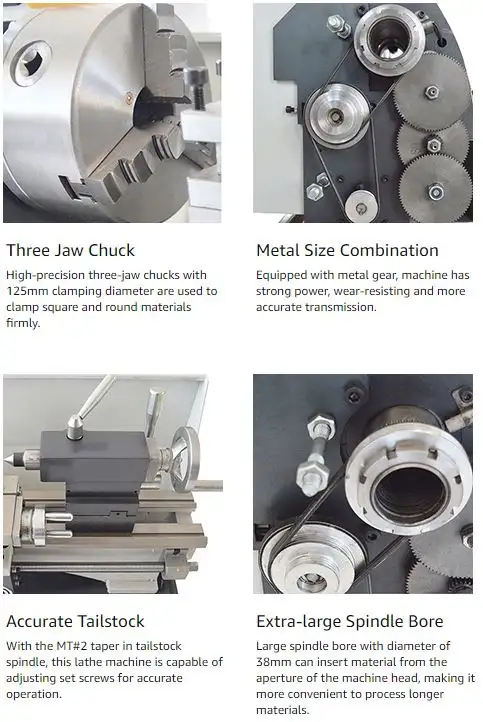

2.Extra-large Spindle Bore. Large spindle bore with diameter of 38mm can insert material from the aperture of the machine head, making it more convenient to process longer materials.
3.1100W brushless motor. Strong power, improve efficiency and save time.

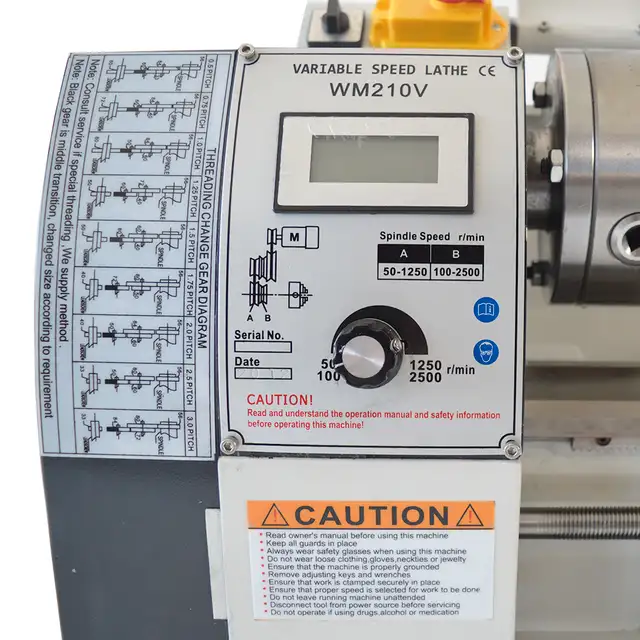

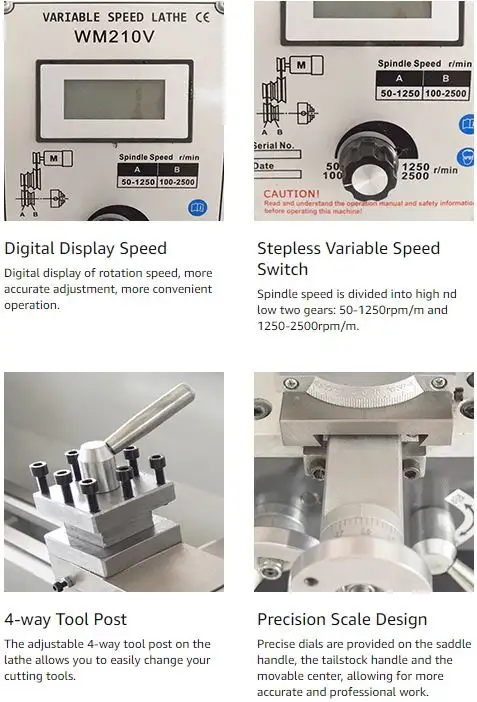

4.Stepless Variable Speed Switch. Spindle speed is divided into high and low two gears: 50-1250rpm/m and 1250-2500rpm/m.
5.Safety Switch. Forward and reverse switch and with emergency stop switch In case of emergency can stop immediately, more safe.

Parameters:
Model: WM210V
Motor: 110V brushless motor
Voltage: AC110V 50/60Hz
Power: 1100W
Length of center: 23.6"(600mm)
Swing Over Bed: 8.3" (210mm)
Rotary diameter of tool rest: 5.51" (140mm)
Spindle bore: 1.50" (38mm)
Diameter of chuck: 4.92" (125mm)
Spindle taper: MT5
Spindle rotation speed: 50-2500rpm
Range of metric threads: 0.5-3mm
Precision of the spindle: 0.01mm
Maximum stroke of tool rest plate: 2.16" (55mm)
Maximum stroke of middle plate: 2.95" (75mm)
Maximum stroke of bottom plate: 19.7"(500mm)
Maximum stroke of tailstock sleeve: 2.36" (60mm)
Tail frame taper: MT2

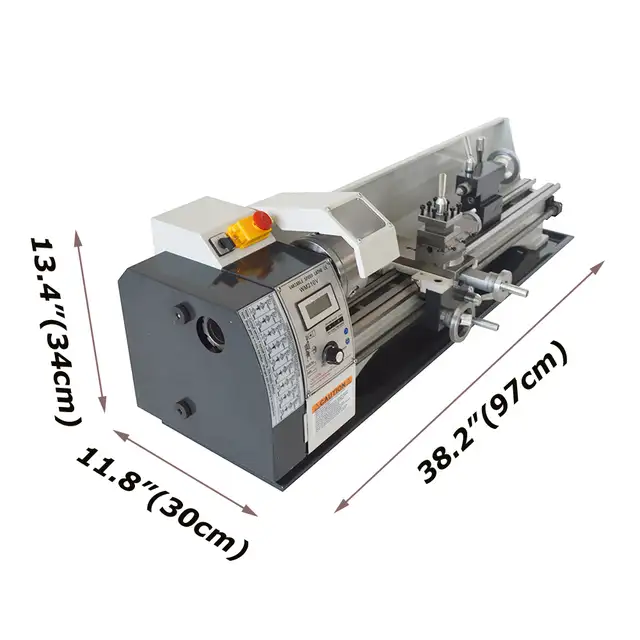

Lathe sizes: 38.2"*11.8"*13.4"(97*30*34cm)
Package size: 43.7"*19.3"*17.7"(111*49*45cm)
Gross weight: 161lb (73kg)

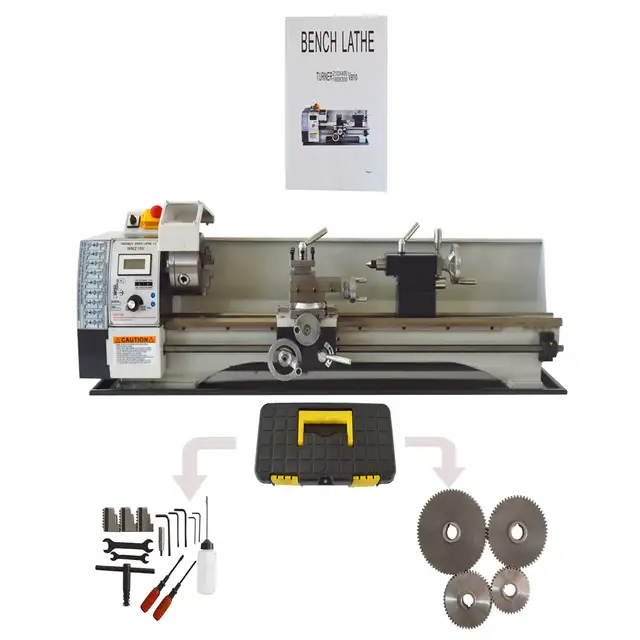

Item Included: 028332
WM210V lathe * 1
Chuck jaw * 3
Open spanner *2
Gear *4 (40/50/60/72)
The screwdriver * 2
The fuse * 1
Hexagon wrench *5
Oil can * 1
Chuck spanner *1
English instruction manual *1
